assigned to every channel at the sequence from right to left: 1,3,5,6,7,8. Now
channel number 2,4 aren't occupied. IT8722 is double channels module. (If the
installation location of two IT8722 modules is close to the left of the mainframe,
the channel number is 5,6,7,8 in sequence.) Modules including single channel
modules:
modules: IT8722,IT8723,IT8722B can be installed into IT8701, IT8702
mainframe or IT8703 extended frame according to your need.
Channel 7 Channel 7

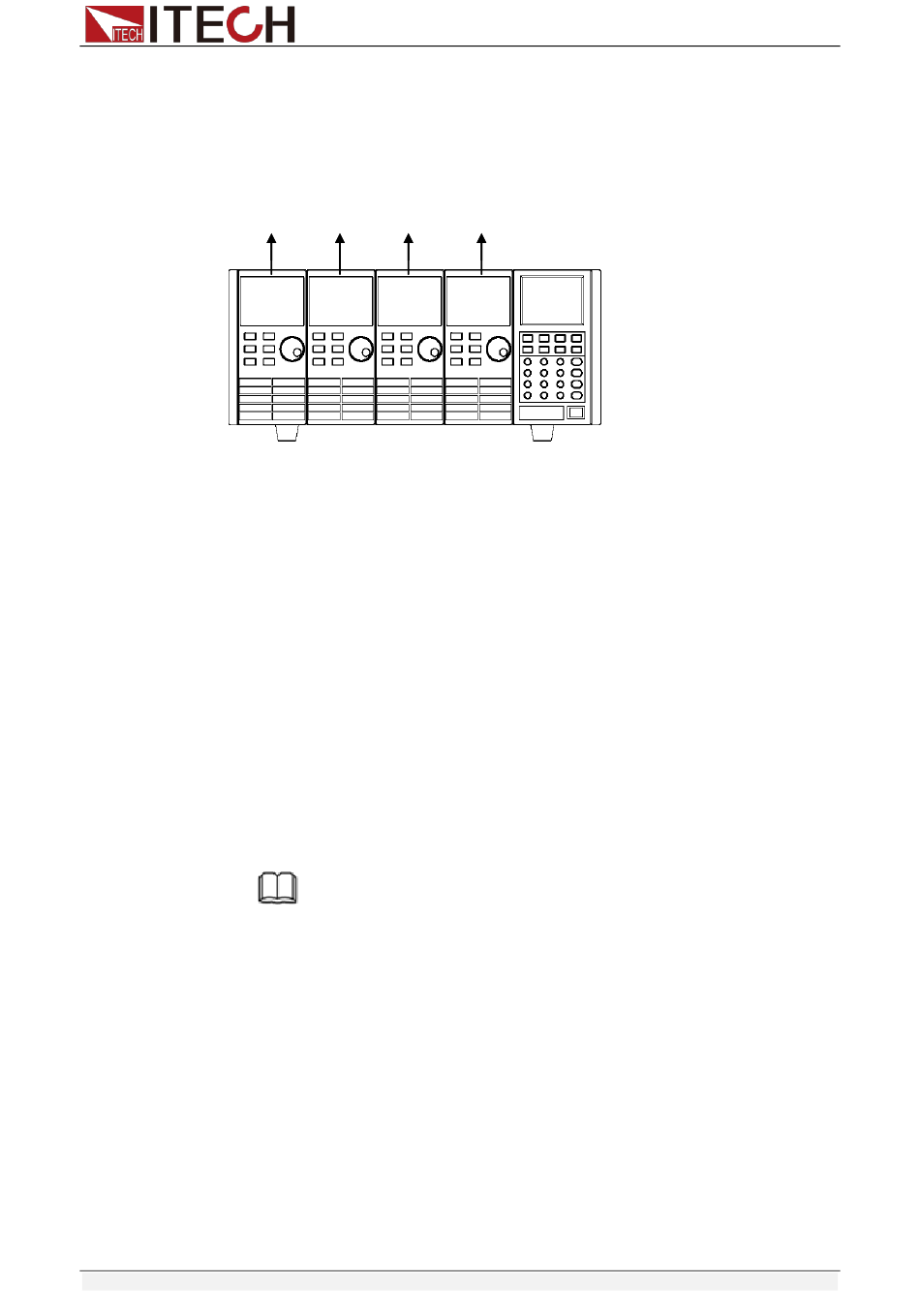

Fig1-3 channel number order while installing

1.3 Mainframe installation

The operating temperature of IT8700 series electronic load is 0 to 40℃. A fan
cools the electronic load by drawing air through the top and sides and
exhausting it out by the rear side. The electronic load must be installed in a
location that allows sufficient space at the sides and back of the unit for
adequate air circulation. Minimum clearances for bench operation are 3cm on
the top. If there are radiator fan in your cabinet, please avoid installing the load
near the fan for cabinet fan because it will limit air circulation of load. If you are
installing equipment on top of your electronic load in the cabinet, use a filler
panel above the unit to ensure adequate for air circulation.
IT8702 and IT8703 can be mounted in a standard 19-inch rack panel cabinet.
When it's mounted, there's no need to remove the bottom studs. You can
achieve it using IT-E153B (optional).
Do not block the fan exhaust at the rear of the Load. When the load uses on the desk, make
sure there enough space on the bottom of the equipment for air circulation.

1.3.1 Installation Size Introduction

The instrument should be installed at well-ventilated and rational-sized space.
Please select appropriate space for installation based on the electronic load
size.
IT8731,IT8732,IT8732B,IT8733,IT8733B
Channel 5 Channel 5 Channel 3 Channel 3
4single-channel unit
单通道编号的例子 单通道编号的例子
NOTE
Copyright © Itech Electronic Co., Ltd.
Channel 1 Channel 1
Inspection and Installation
and double channel
