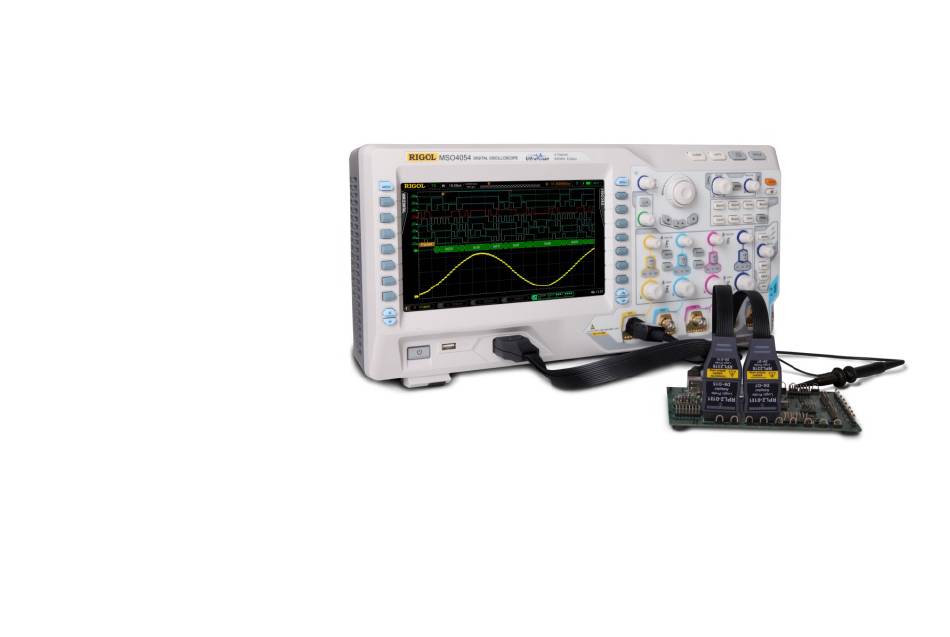

RIGOL
用户手册
User's Guide
RPL2316 逻辑探头
RPL2316 LOGIC PROBE
© 2013 RIGOL Technologies, Inc. All Rights Reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RPL2316 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rigol RPL2316

  • Page 1 RIGOL 用户手册 User’s Guide RPL2316 逻辑探头 RPL2316 LOGIC PROBE © 2013 RIGOL Technologies, Inc. All Rights Reserved.
  • Page 2 一般安全概要 正确的连接与断开探头。 使用探头之前,请连接探头适配器。 遵循所有终端额定值。 电源接通后,请勿接触外露的线路和元件。 怀疑产品出故障时,请勿进行操作。 切勿开盖操作。 请勿在易燃易爆的环境下操作。 请勿在潮湿的环境下操作。 请保持产品表面干燥。 请注意搬运安全。 - 1 -...
  • Page 3 产品简介 RPL2316 是一款高性能逻辑探头,可将待 测 系 统 上 的 数 字 总 线 及 信 号 连 接 至 RIGOL MSO4000 系 列 数 字 示 波 器 。 RPL2316 的 16 个数字通道分为两个支线 端,称为通道组。每个通道组包含 8 个信 号通道(D0-D7 和 D8-D15)和 12 个接地通...
  • Page 4 逻辑探头的使用方法 1. 连接 RPL2316 至示波器:上下按压逻辑探头单线端两侧的按钮,按照 下图箭头所指方向垂直连接至 MSO4000 系列数字示波器前面板的 [LOGIC D0-D15]接口。注意: “RIGOL”字样朝上,标签朝下。 2. 连接被测信号至 RPL2316: 用户可以根据测试需要将任意数量 (≤16) 的被测信号连接至 RPL2316,连接时需要注意,输入信号的幅度不能超 过探头的最大工作电压范围。为适应不同的应用场合,RPL2316 提供了 - 3 -...
  • Page 5 三种与被测信号的连接方法。 方法一:用户可将 RPL2316 与预留在待测设备上的双排金针直接  连接,此时,RPL2316 必须保留适配器的连接。如图 1 所示。 方法二:用 户可通过 前端引 线单独连接 各个被测 信号, 此时  RPL2316 必须保留适配器的连接。通过前端引线上的色环以及适 配器上的颜色信息可方便地识别每个信号所对应的通道号, 如图 2 所示。 图 2 图 1 方法三:在方法二的基础上,可为前端引线连接上探头测试夹,  - 4 -...
  • Page 6 然后通过测试夹内的金属钩连接被测信号节点,如图 3 所示。 图 3 3. 设置探头:按示波器前面板上的 LA 按键进入探头设置菜单,用户可 在该菜单下查看和设置如下参数:阈值电平(D0-D7 与 D8-D15 分组阈 值电平独立调节)、波形大小(应用于所有通道,其中 L 选项只在屏幕活 动通道数不多于 8 时可用)、 通道标签和数字总线(提供 2 条独立的专用 数字总线,可分别设置时钟、位宽、显示格式及噪声抑制等,如需更多 灵活功能请参考并选用通用总线)。 4. 功能检查: 完成上述操作后, 被测信号将显示在与连接相对应的通道上。 如果看不到活动信号, 请调节示波器选择合适的触发方式和时基等常规 设置。如果仍然看不到活动信号,请再次检查电气连接和参数设置,或 者尝试使用其他探头(如模拟探头)来验证测试点的信号状态。 - 5 -...
  • Page 7 探头指标 输入通道数 ± 20V 阈值范围 ± 100mV+阈值的 3% 阈值精度 ± 40V 最大摆动电压 500mV 最小摆动电压 最小可检测脉宽 101kΩ 输入阻抗 约 8pF 探头负载 约 100cm 探头电缆长度 约 15cm 前端引线长度 0~50℃,0~80%RH 操作环境 -20℃~60℃,0~90%RH 存放环境 - 6 -...
  • Page 8 附件 编号 名称描述 数量 主线 逻辑探头适配器 20 (2×10) 引线 探头钩 中英文用户手册 RPL2316 便携软包 - 7 -...
  • Page 9 附件示意图 逻辑探头适配器 主线 引线 探头钩 - 8 -...
  • Page 10 联系我们 如您在使用此产品或本手册的过程中有任何问题或需求, 可与 RIGOL 联系: 电子邮箱:service@rigol.com 网址:www.rigol.com - 9 -...
  • Page 11: General Safety Summary

    General Safety Summary Connect and disconnect the probe properly. Connect the adaptor before using. Observe all terminals ratings. Do not touch exposed connections and components after power on. Do not operate with suspected failures. Do not operate without covers. Do not operate in an explosive atmosphere. Do not operate in wet conditions.
  • Page 12: Product Overview

    8 signal channels (D0-D7 and D8-D15) plus 12 ground channels. All the channels are marked with different colors and numbers (or letters) on the probe adaptor label to identify different channels. RPL2316 provides 8 signal leads and 12 ground leads for each header to realize flexible connection of signals and reference ground and provide better signal integrity.
  • Page 13 The Using Method of the Logic Probe 1. Connect RPL2316 to the oscilloscope: push the buttons on both sides of the logic probe single head and connect it (with “RIGOL” facing upward and the label facing downward) to the digital channel...
  • Page 14 2. Connect the signals under test to RPL2316: users can connect any number (≤16) of the signals under test to RPL2316 in according to the test need. Make sure that the amplitude of the input signal should not exceed the maximum working voltage range while connecting.
  • Page 15 Figure 2 Figure 1 Method three: on the basis of method two, you can connect a  grabber to each lead and connect it to the device under test as shown in figure 3. Figure 3 - 5 -...
  • Page 16 3. Set the probe: press LA at the front panel of the oscilloscope to enter the probe setting menu. Users can view and set the following parameters under this menu: threshold level (the threshold levels of D0-D7 and D8-D15 can be adjusted independently), waveform size (applicable to all the channels;...
  • Page 17: Probe Specifications

    Probe Specifications Input Channels Threshold Range ± 20V Threshold Accuracy ± 100mV+3% of threshold setting Max Voltage Swing ± 40V Min Voltage Swing 500mV Min Detectable Pulse Width Input Impedance 101kΩ Probe Load About 8pF Cable Length About 100cm Lead Length About 15cm 0~50℃, 0~80%RH Operation Environment...
  • Page 18 Accessories Item Description Quantity Main Cable Logic Probe Adaptor Lead 20 (2×10) Grabber Chinese and English User’s Guide RPL2316 Soft Carrying Bag - 8 -...
  • Page 19 Accessories Sketch Map Logic Probe Adaptor Main Cable Lead Grabber - 9 -...
  • Page 20 Contact Us If you have any problem or requirement when using our products or this manual, please contact RIGOL Technologies, Inc. E-mail: service@rigol.com Website: www.rigol.com UGE20X03-1110 Aug. 2014 ZN1 0 2 0 0 0 2 2 9 2 - 10 -...
