2.2 Display Windows
TARGET: The TARGET window displays target speeds and is blank
when no target is present .
MODE: Displays the mode of operation (Stationary, Moving Mode
Opposite Direction, or Moving Mode Same Direction) except during
power up, self-test or when an error occurs . When an error occurs,
one of the following appears in the MODE window:
• LowV low voltage
• RFI radio frequency interference
• SYS system failure
• RMT? disconnected hand-held remote
LOCKED: When you press the LOCK button, the LOCKED window
holds and displays the target speed that was in the TARGET window .
PATROL: Displays the patrol speed . The window is blank when the
radar unit is in Stationary Mode .

2.3 Lights

RANGE: Indicates the sensitivity setting (or the target-acquisition
distance) . The range can be independently set for each main
operating mode .

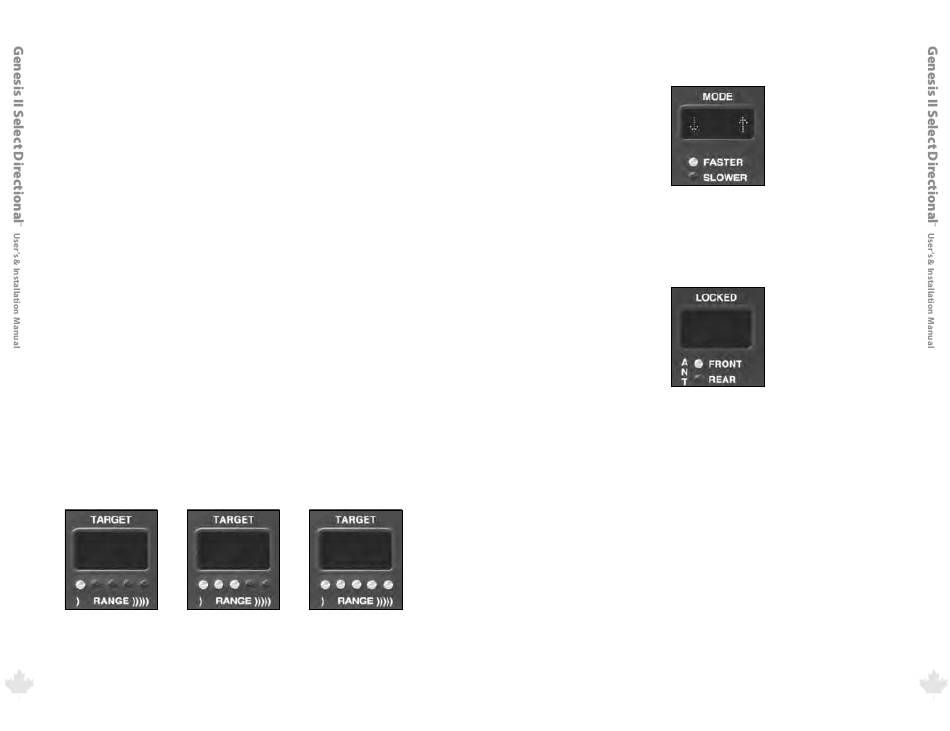

Figure 2.3a
Short Range
18
Figure 2.3b Figure 2.3c
Medium Range Maximum Range
25/Aug/2010
FASTER: Illuminates when the fast function is active .
Figure2.3d
The Faster light
ANT FRONT and REAR: Indicates which antenna is transmitting . In
standby mode, neither light is on and neither antenna is transmitting .
Figure 2.3f
Antenna lights
