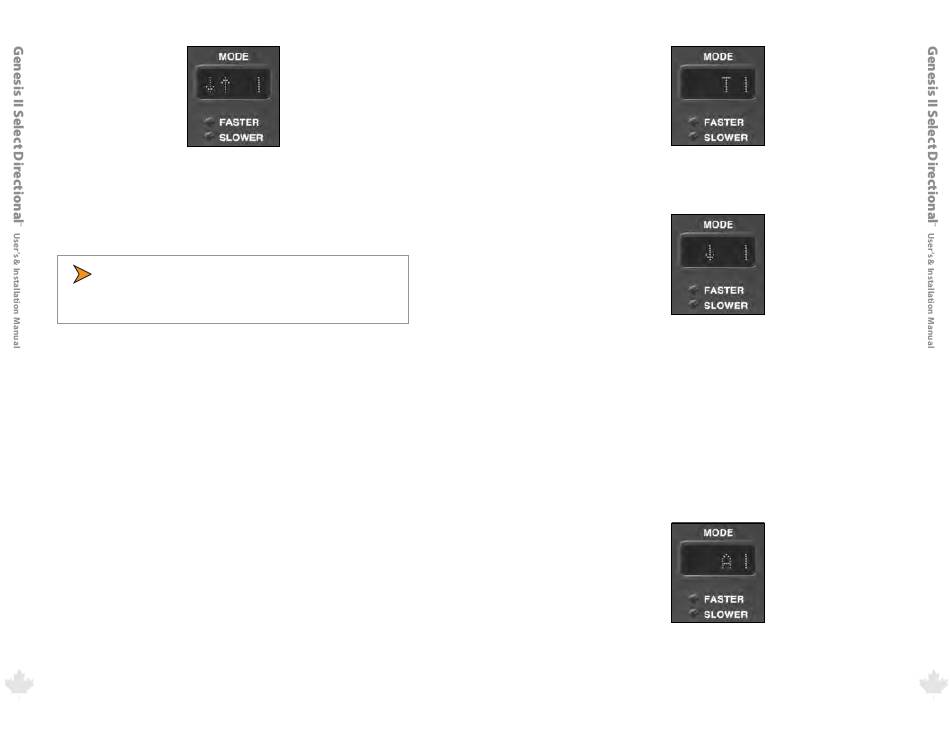

The MODE window when the radar is in Stationary Both Mode .
Detected target speeds will display in the TARGET window . The
PATROL window will always remain blank while in this mode .
• In order to select the "Stationary Towards" or
"Stationary Away" modes, one of the antennas must be
activated .
After the "Stationary Both" mode has been selected, briefly press
and release the MODE button a second time to select the "Stationary
Towards" mode . Pressing and releasing the MODE button a third time
will select the "Stationary Away" mode . Pressing and releasing the
MODE button a fourth time will cycle to the moving opposite mode
of operation .
When the radar is toggled into the "Stationary Towards" mode, a
"T" will briefly be displayed along side of the solid line on the right .
When the "T' is cleared, an arrow will be displayed that represents
the direction of travel in which the radar will search . (When using
the FRONT antenna, targets moving towards the patrol will be
represented by an arrow on the left pointing down . An arrow will be
pointing up when the REAR antenna is selected .) Once a solid target
is acquired, the letter "T" will again appear .
26
Figure 5.3b
25/Aug/2010
Figure 5.3c
Initially the letter "T" will indicate the Stationary Towards Mode has
been selected . The "T" will also appear when a target is acquired .
Figure 5.3d
For a FRONT antenna selection, the Stationary Towards Mode
will show an arrow pointing down .
When the radar is toggled into the "Stationary Away" mode, an "A" will
briefly be displayed along side of the solid line on the right . Once the
"A" is cleared, an arrow pointed in the appropriate direction (based
on the antenna selection) will be displayed to indicate the direction
of the targets moving AWAY from the patrol car . Once a solid target is
acquired, the letter "A" will again appear .
Figure 5.3e
Initially, the letter "A" will indicate the Stationary Away Mode has
been selected . The "A" will also appear when a target is acquired .
