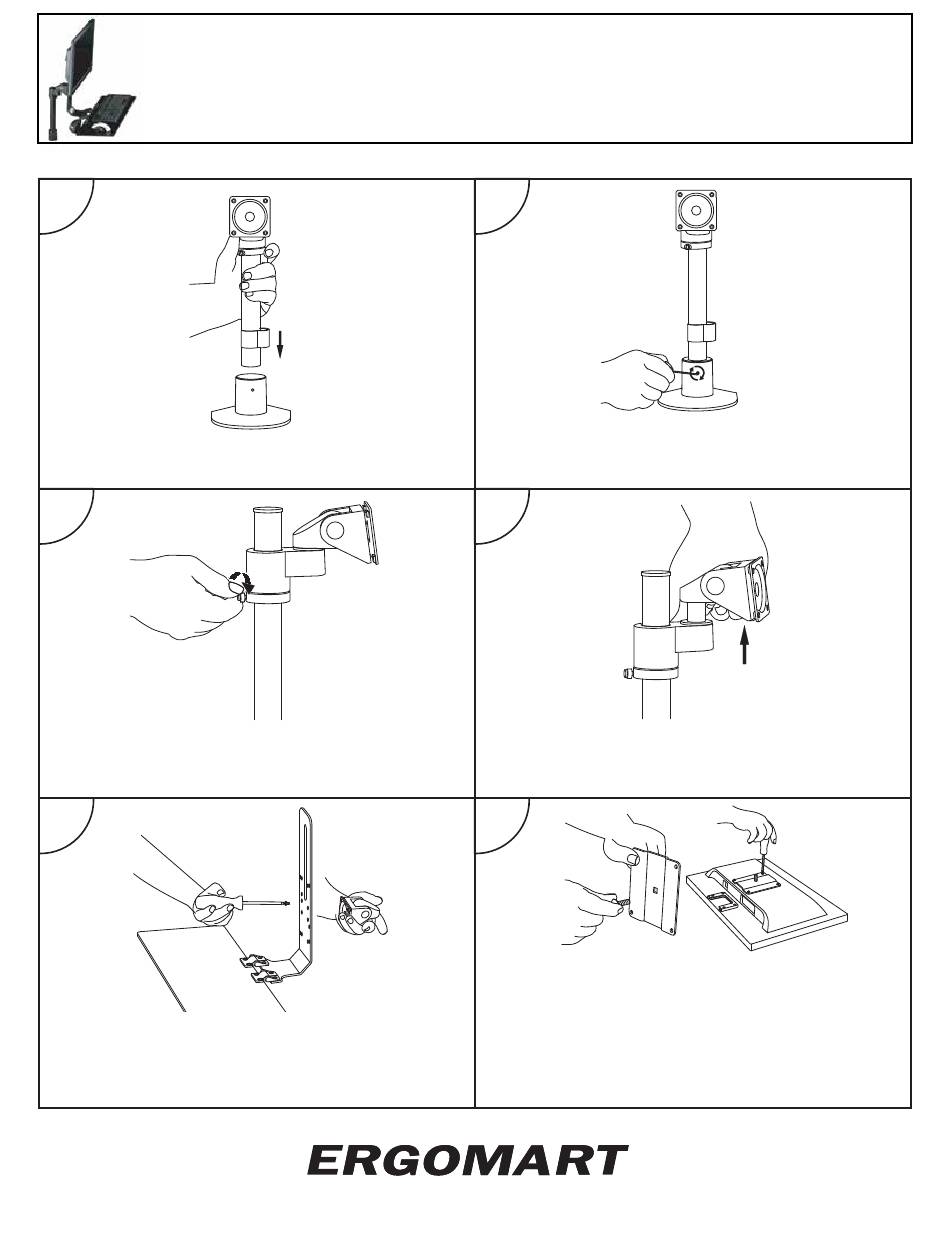

ERGOMART TRS413 Installation Instructions

TRS413 - BB103 MONITOR & KEYBOARD STAND
1
Insert the TRS413 pole into the opening on the top of
the Mount Kit.
3
Loosen Ring Collar on pole to reposition tilter head
assembly to the anticipated optimal position and then
rotate the thumb screw clockwise until the Ring Collar
is secure.
5
Align the Tilter Head rotation plate with the 4 holes on the
backside of the BB103 Back Bar at the position which you
prefer. Secure each screw (Part A) with the Phillips
Head Screwdriver by turning clockwise until each is
tightly secured.
Ergonomic solutions for office and light industrial work environments

Installation Instructions

www.ergomart.com | 888 420 3200
©2017 Ergomart. All rights reserved.
2
Secure pole by inserting the Allen key (Tool B) into 3/32"
set screw on the side of the mount cup and then turn
clockwise (to the right) until the pole is snug.
4
To separate the tilter head from the tilter head yoke,
grasp the tilter head in one hand and yoke in the other.
Work the tilter head free by moving it slightly left and
right as you pull upward.
6
Insert the Carriage Bolt into the square center-hole in
the VESA Slider plate so that the screw head rests
underneath the raised middle section. Place the LCD
monitor face down on a flat surface (use a towel or cloth
to protect the monitor from scratches) and align your
VESA Slider Adapter (with the raised middle section up).
Align holes with the corresponding holes on the back of
the monitor. Secure each Part D screw with the Phillips
Head Screwdriver by turning clockwise until each is tightly
secured.
