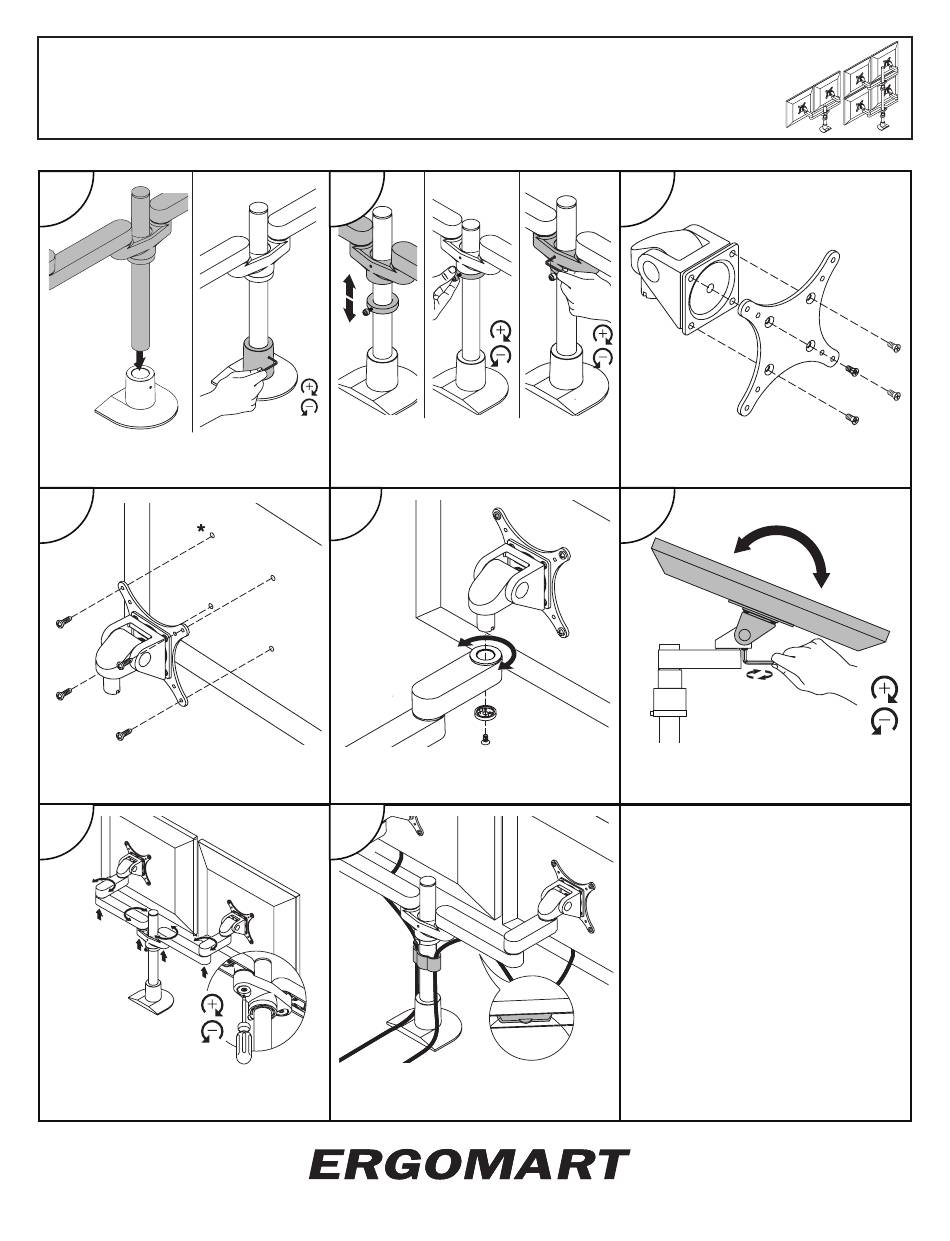

ERGOMART LS1512 Installation Instructions

1
Insert pole (K) into securely fastened
mount. Tighten set screw on mount with
3/32" Allen wrench (A) so that pole resists
spinning.
4
E
E
E
E
Attach VESA adapter to monitor using four
M4 x 12mm screws (E). Some monitors
may require a spacer kit. See page 2 for
details.
7
Turn screws on the bottom of arm
extensions to adjust rotational resistance
to the desired level.
Ergonomic solutions for office and light industrial work environments
LS1512

Installation Instructions

www.ergomart.com | 888 420 3200
2
J
A
Slide collar and dual arm (J) onto pole and
tighten collar thumbscrew when adjusted
to desired height. Tighten dual arm set
screw with 3/32" Allen wrench until dual
arm has desired rotational resistance.
5
Insert tilter mechanism pin into end of arm.
Align dog washer(F) with bottom of tilter
mechanism pin and attach with flat head
screw (G).
8
Place cables into wire management clamps
under arms and use cable clip (I) to secure
cables to pole.
©2016 Ergomart. All rights reserved.
A
Attach the VESA adapter (C) to the tilter
mechanism (B) using four 10-32 x 3/8"
flat head screws (D).
F
G
I
3
B
6
H
Locate set screw on bottom of tilter
mechanism by tilting monitor upward.
Use 7/32 Allen wrench (H) to adjust rotation
resistance to desired level.
Please call Ergomart at
888 420 3200
with your questions
www.ergomart.com
C
D
D
D
D
PAGE 1 OF 2
