ERGOMART SAA179 Installation Instructions

SAA179 COMPACT MONITOR ARM

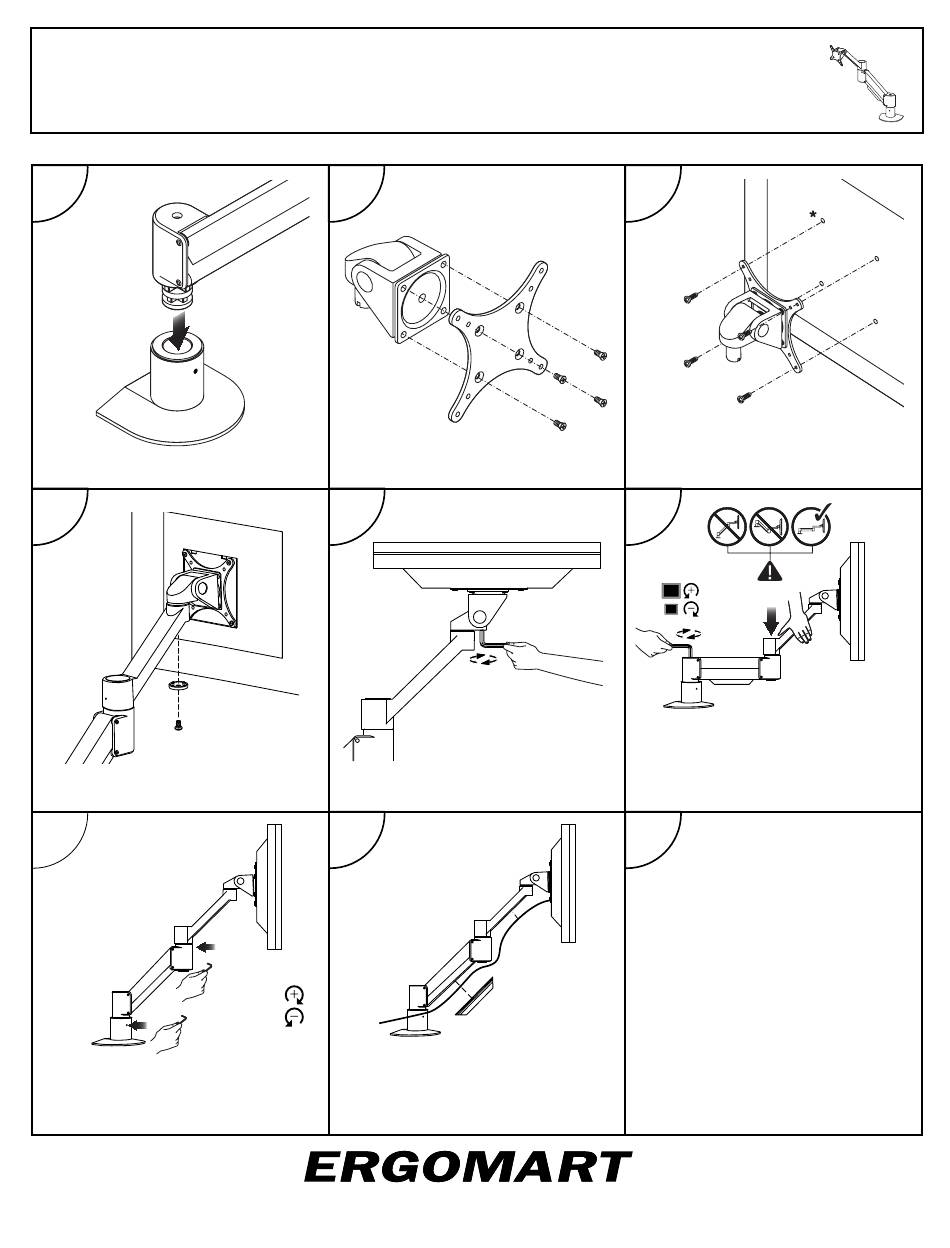

1
Insert arm pin into completely attached
and assembled mount.
4
E.
F.
Slide tilter pin into end of arm.
7
H.
Increase resistance to rotation at
articulation points by tightening small
set screws.
DO NOT OVERTIGHTEN.
Ergonomic solutions for office and light industrial work environments

Installation Instructions

www.ergomart.com | 888 420 3200
2
5
Adjust vertical tilt resistance on tilter
head.
8
H.
Increase resistance to vertical travel
slightly with two hidden set screws on
bottom ends of lifting arm. This control
has modest effect and is set only after
gas cylinder floats LCD weight lessly.
©2016 Ergomart. All rights reserved.
A.
B.
C.
C.
C.
C.
G.
I.
3
D.
D.
D.
D.
Attach tilter head/VESA plate to
Monitor.
* Some monitors may require a spacer
hardware kit. See page 3 for details.
6
G.
Put arm in horizontal position and
rotate wrench CLOCKWISE to WEAKEN
arm until monitor stays wherever it is
placed. See page 2 for more detailed
instructions.
9
Please call Ergomart at
888 420 3200
with your questions
www.ergomart.com
PAGE 1 OF 3
