ERGOMART EQP3418 Installation Instructions

EQP3418 CRT Monitor Arm
Installation Instructions
www.ergomart.com | 888 420 3200

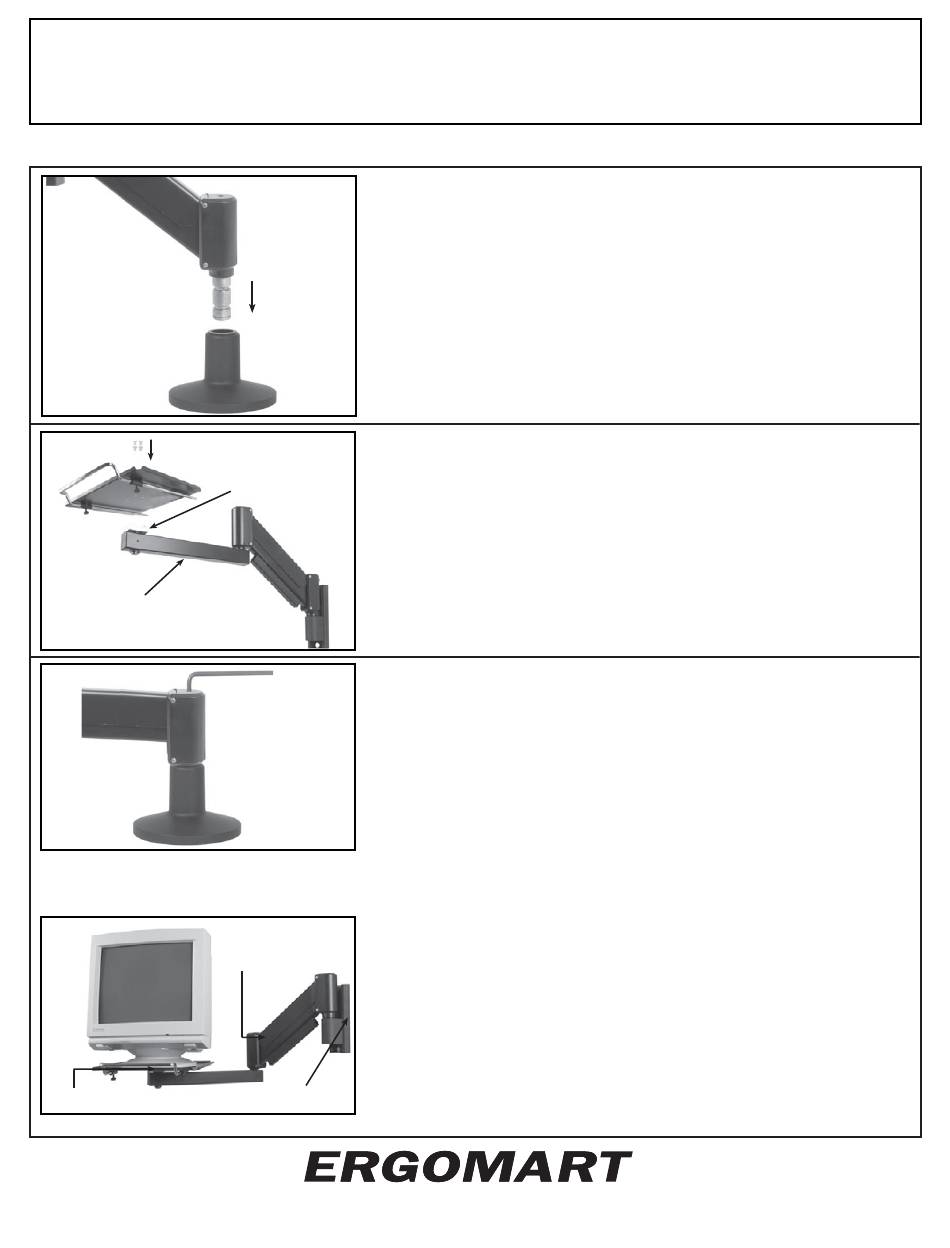

Step 1 Attaching the Arm to the Mount
Before beginning, please be certain that the mount is secure on the
surface. Insert the shaft of the arm assembly into the mount.

Step 2 Attach Monitor Platform to the Arm

Remove platform from wrap. Unscrew the four 1/4" x 20 Philips flat
head screws from the tilt or non tilt base found at the end of the
Non-tilt base
forearm. Place the platform on top of the non tilt base, line up the
screw hole pattern and replace the screws and tighten.
Forearm

Step 3 Adjustments

A - Counter-Balance - Arm must be fully loaded with CRT before
attempting to adjust gas spring Cylinder.
With the CRT monitor on the platform, push the arm into a horizontal
position, insert the 1/4" allen wrench.
To increase the strength, turn the wrench left (counter-clockwise). To
decrease the strength, turn the wrench to the right (clockwise).
When the arm does not drift up or downward, your adjustment is set.
WARNING - Lifting arm must be pushed down or lifted up into a horizontal position to makeadjustments.

B - Friction Joints

2 - Friction Joint
Friction joints are found in the (1) mount, where the (2) forearm
elbows with the main body of the arm and (3) where the platform
attaches to the end of the forearm.
Insert the 3/32" allen wrench into the set screw and tighten or loosen
to the desired degree of friction. (Left to loosen - Right to tighten).
3 - Friction Joint 1 - Friction Joint
