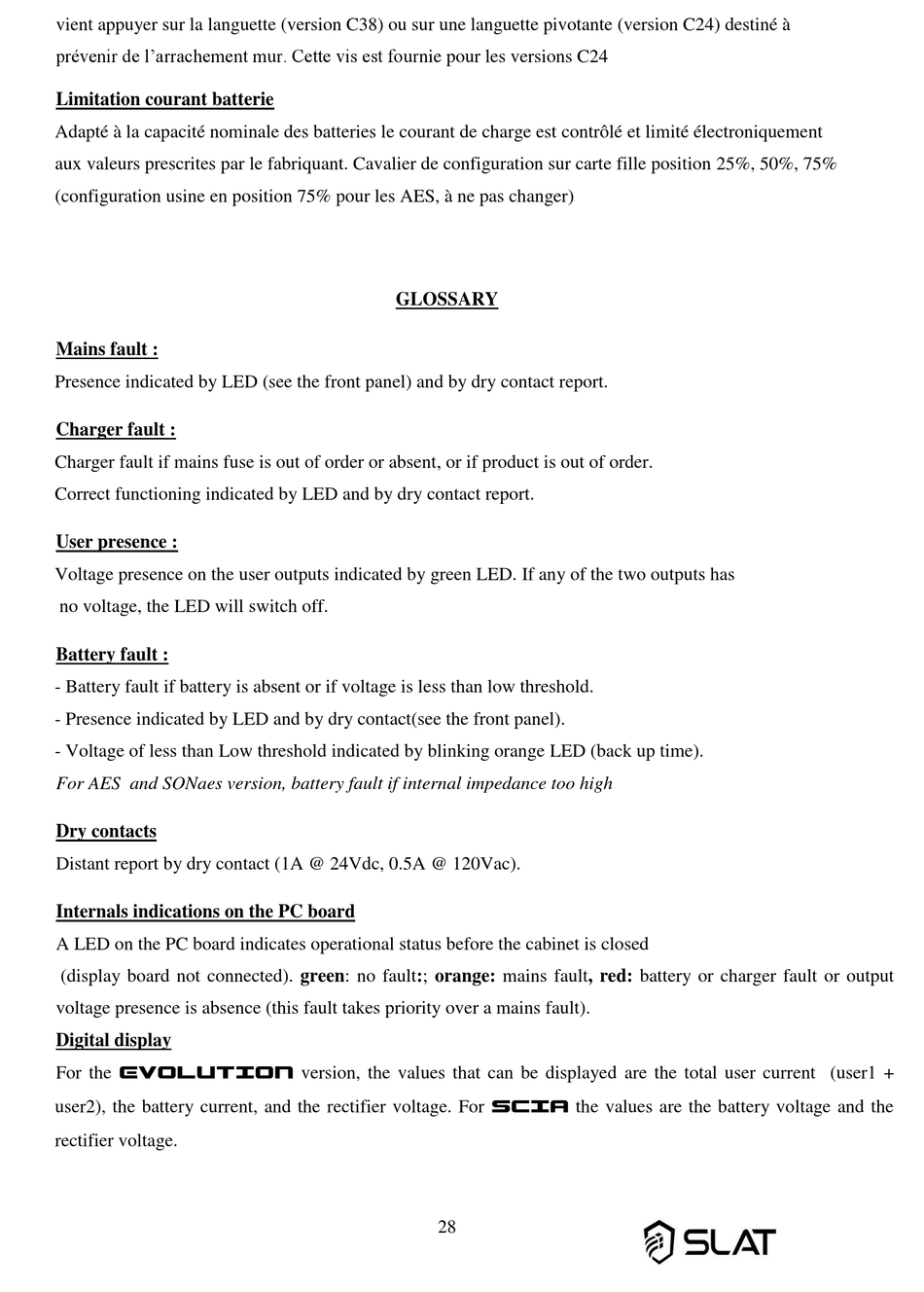

SLAT EVOLUTION Operating Instructions Manual page 28

vient appuyer sur la languette (version C38) ou sur une languette pivotante (version C24) destiné à
prévenir de l'arrachement mur. Cette vis est fournie pour les versions C24
Limitation courant batterie
Adapté à la capacité nominale des batteries le courant de charge est contrôlé et limité électroniquement
aux valeurs prescrites par le fabriquant. Cavalier de configuration sur carte fille position 25%, 50%, 75%
(configuration usine en position 75% pour les AES, à ne pas changer)
Mains fault :
Presence indicated by LED (see the front panel) and by dry contact report.
Charger fault :
Charger fault if mains fuse is out of order or absent, or if product is out of order.
Correct functioning indicated by LED and by dry contact report.
User presence :
Voltage presence on the user outputs indicated by green LED. If any of the two outputs has
no voltage, the LED will switch off.
Battery fault :
- Battery fault if battery is absent or if voltage is less than low threshold.
- Presence indicated by LED and by dry contact(see the front panel).
- Voltage of less than Low threshold indicated by blinking orange LED (back up time).
For AES and SONaes version, battery fault if internal impedance too high
Dry contacts
Distant report by dry contact (1A @ 24Vdc, 0.5A @ 120Vac).
Internals indications on the PC board
A LED on the PC board indicates operational status before the cabinet is closed
(display board not connected). green: no fault:; orange: mains fault, red: battery or charger fault or output
voltage presence is absence (this fault takes priority over a mains fault).
Digital display
For the EVOLUTION version, the values that can be displayed are the total user current (user1 +
user2), the battery current, and the rectifier voltage. For SCIA the values are the battery voltage and the
rectifier voltage.
GLOSSARY
