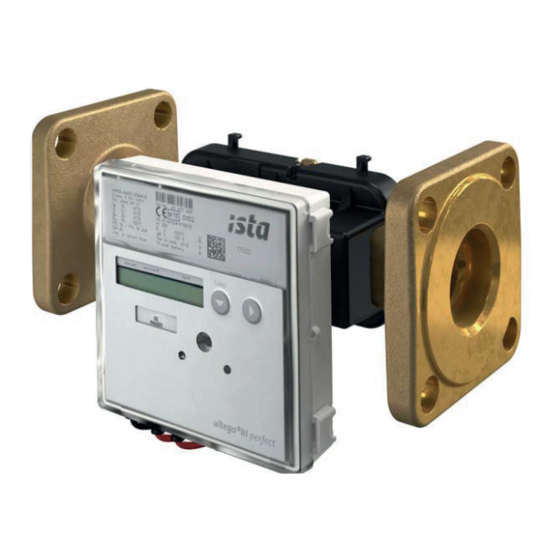

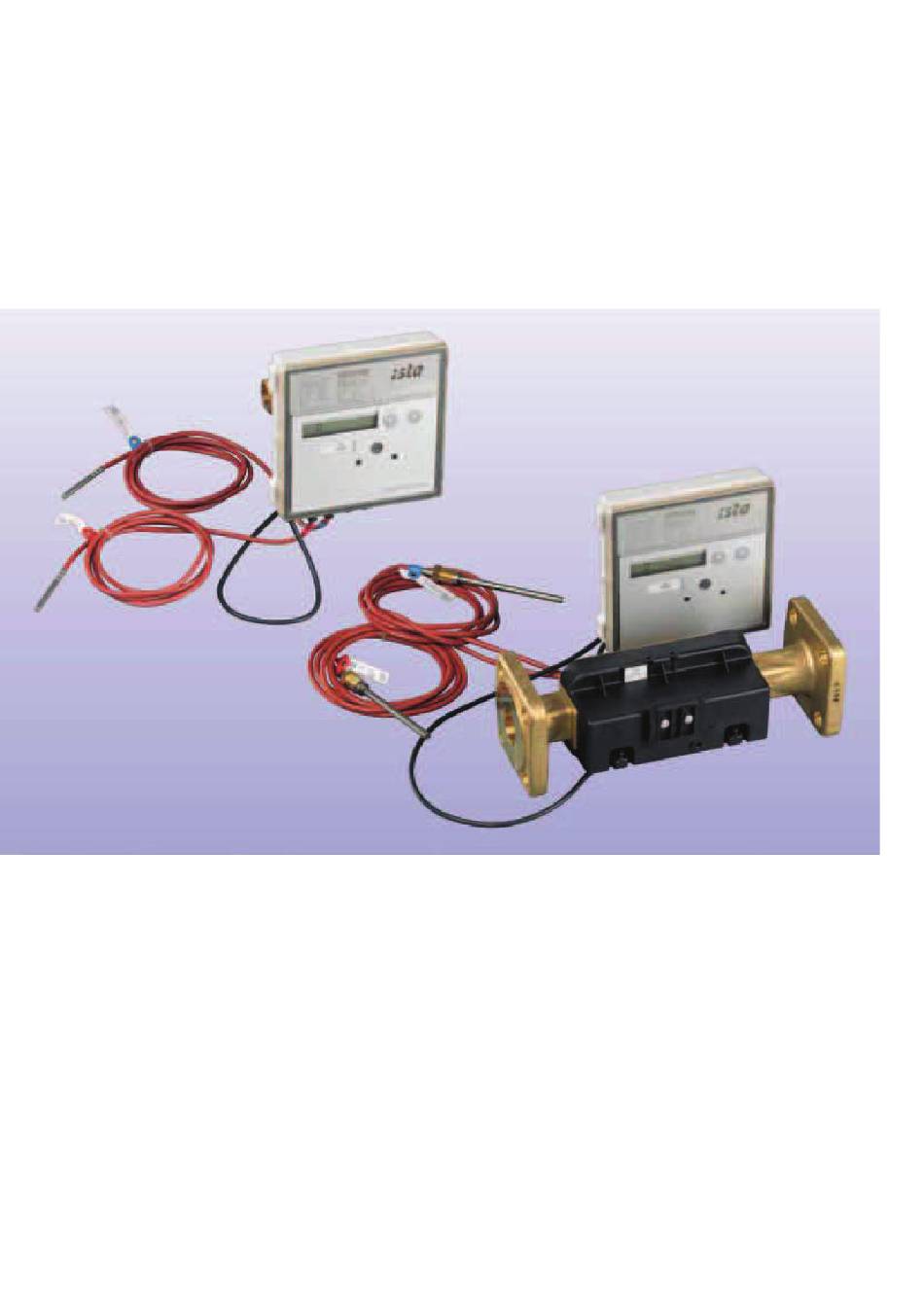

ultego III perfect –
highest precision and reliability
Reliable Measurement
Longevity, measuring stability and a high
dynamic range distinguish the ultego III
perfect. Even after operating for years in the
district heating water environment with low
conductivity the ultego III perfect is
measuring the volume precisely and reliably.
Due to the patented DuraSurface, we are
setting new standards in measurement
stability. This future-oriented innovation
ensures measuring accuracy and
maintenance-free operation for many years.
Advertisement
Table of Contents
Related Manuals for Ista Ultego III perfect
Summary of Contents for Ista Ultego III perfect
- Page 1 Reliable Measurement district heating water environment with low setting new standards in measurement Longevity, measuring stability and a high conductivity the ultego III perfect is stability. This future-oriented innovation dynamic range distinguish the ultego III measuring the volume precisely and reliably.
-
Page 2: Technical Data
Technical data Nominal flow Q Meteorological Class 1:100 1:100 1:100 1:100 1:100 1:100 1:100 Maximum flow rate Q Minimum flow rate Q Response limit Pressure loss ∆p at Q Thread mbar – – – – Flange Pressure loss ∆p = 1 bar Thread –... -
Page 3: Safety Information
Small heat meters (qp 0.6 - 2.5 m³/h) Overall length 110 mm Overall length 190 mm (flan- Overall length 190 mm (thread) Overall length 130 mm (thread) (thread) G.83.0101 6.1 - 230608 ultego® III perfect ista International GmbH – Grugaplatz 2 – D-45131 Essen... -
Page 4: Examples Of Installation
Adapterplaat installation is done be sure that only paired parts (volume part, calculator) are connected (doorsnede) together. The control cable must not be extended! G.83.0101 6.1 - 230608 ultego® III perfect ista International GmbH – Grugaplatz 2 – D-45131 Essen... -
Page 5: Power Supply
In case of a meter's return via airfright the battery ("C" and "D" cell) has to be generally dismounted and forwarded separately from the meter. G.83.0101 6.1 - 230608 ultego® III perfect ista International GmbH – Grugaplatz 2 – D-45131 Essen... -
Page 6: Communication Modules
0.25 – 0.34 mm² flexible with TWIN ferrules with plastic sleeve, 0.5 – 0.75 mm² Recommended screwdriver: 0.6 x 3.5 mm Tightening torque: 0.4 Nm G.83.0101 6.1 - 230608 ultego® III perfect ista International GmbH – Grugaplatz 2 – D-45131 Essen... -
Page 7: Permissible Combinations Of Modules
Unsure you use the correct slot for the modules and comply with the permissible combinations. Factory-installed sensors NOTE: Do not disconnect, shorten, or extend the cables of factory-installed sensors. G.83.0101 6.1 - 230608 ultego® III perfect ista International GmbH – Grugaplatz 2 – D-45131 Essen... -
Page 8: Parameter Setting
Return to normal mode (manual) Press LCD button 1 repeatedly until “PArA” is shown. Then press LCD button 2. The following parameter settings are possible: G.83.0101 6.1 - 230608 ultego® III perfect ista International GmbH – Grugaplatz 2 – D-45131 Essen... - Page 9 LCD button 1. As the final acknowledgment of a display line, a star symbol is briefly displayed. If incorrect entries are made, parameter setting be performed again. G.83.0101 6.1 - 230608 ultego® III perfect ista International GmbH – Grugaplatz 2 – D-45131 Essen...
- Page 10 Within a loop, the LCD button 2 is used to advance to the next line of the display. After the last line of the display, the first dis- play line appears again. G.83.0101 6.1 - 230608 ultego® III perfect ista International GmbH – Grugaplatz 2 – D-45131 Essen...
- Page 11 2s intervals with date stamp Max. temperatures, at 2s intervals with date stamp for flow and return maximum Measuring period for maximum calculation G.83.0101 6.1 - 230608 ultego® III perfect ista International GmbH – Grugaplatz 2 – D-45131 Essen...
-
Page 12: Service Loop 3 ("Loop 3")
If you want to drop out and go directly to the next loop, choose a monthly value by pressing LCD but- ton 2 and then press LCD button 1. G.83.0101 6.1 - 230608 ultego® III perfect ista International GmbH – Grugaplatz 2 – D-45131 Essen... -
Page 13: Previous Year's Values
Message F8 has to be reset in parameter setting mode (manually, PappaWin). All other error messages are cleared automati- cally once the error has been corrected. G.83.0101 6.1 - 230608 ultego® III perfect ista International GmbH – Grugaplatz 2 – D-45131 Essen... -
Page 14: Functional Details
The type of modules plugged can be displayed in the service loop depending on how the display is parameterized. For fast pulses, the parameters must be set accordingly with the PappaWin software. Up-to-date versions of all instructions can be found in the Internet at www.ista.com EC Declaration of conformity...
