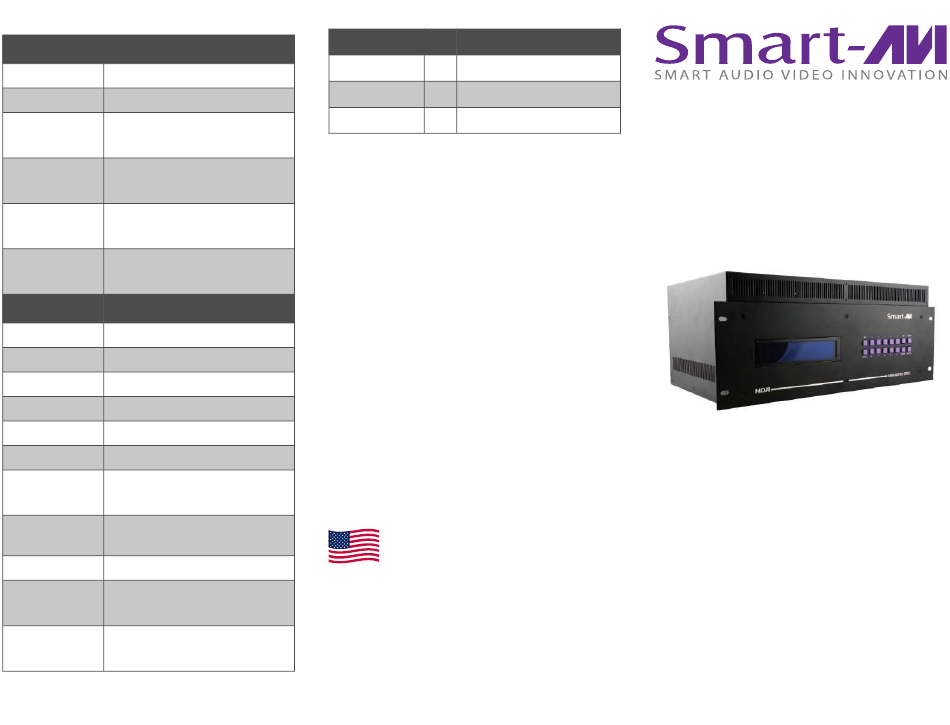

SMART-AVI HDR-8X8 Quick Start Manual

TECHNICAL SPECIFICATIONS
VIDEO
HDTV Resolutions 480p, 720p, 1080i, 1080p
TV Resolution 480i
8 HDMI Type A 19-pin Female
Input Interface
TMDS
8 HDMI Type A 19-pin Female
Output Interface
TMDS
Input Cable
Up to 20 ft.
Length
Output Cable
Up to 20 ft.
Length
OTHER
Warranty Limited 1 Year Parts and Labor
Control Front Panel, RS-232
Power Internal 100-240 VAC
Dimensions 19"W x 5.25"H x 7"D
Weight 10 lbs.
Operating Temp. 0 to +40°C (+32° to +104° F)
Operating Humid-
10% to 85% (Non-condensing)
ity
Storage Temp. -20° to +60°C (+20° to +140° F)
Storage Humidity 10% to 85% (Non-condensing)
HDR 8X8 Approv-
FCC, CE, RoHS Compliant
als
Power Supply
UL, CE, CSA, CEC, RoHS
Approvals
IMPORTANT: Each input and output can support up to
10mA/5VDC. Do not connect extenders that are pow-
ered by HDMI.
WHAT'S IN THE BOX?
PART NO. QTY DESCRIPTION
HDR8X8S 1 HDMI 8x8 Router
CCPWR06 1 6ft Power Cord

1 Quick Start Guide

NOTICE
The information contained in this document is subject
to change without notice. SmartAVI makes no
warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained herein
or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20170523
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

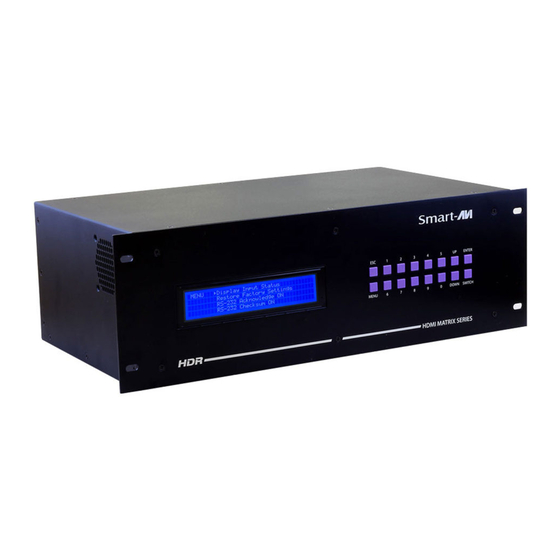

HDR-8X8
HDMI 8x8 Matrix Switcher
The HDR 8x8 allows users to
route content from any eight
HDMI sources on any eight
displays independently up to 20
feet away
Quick Start Guide
