Chapter 4

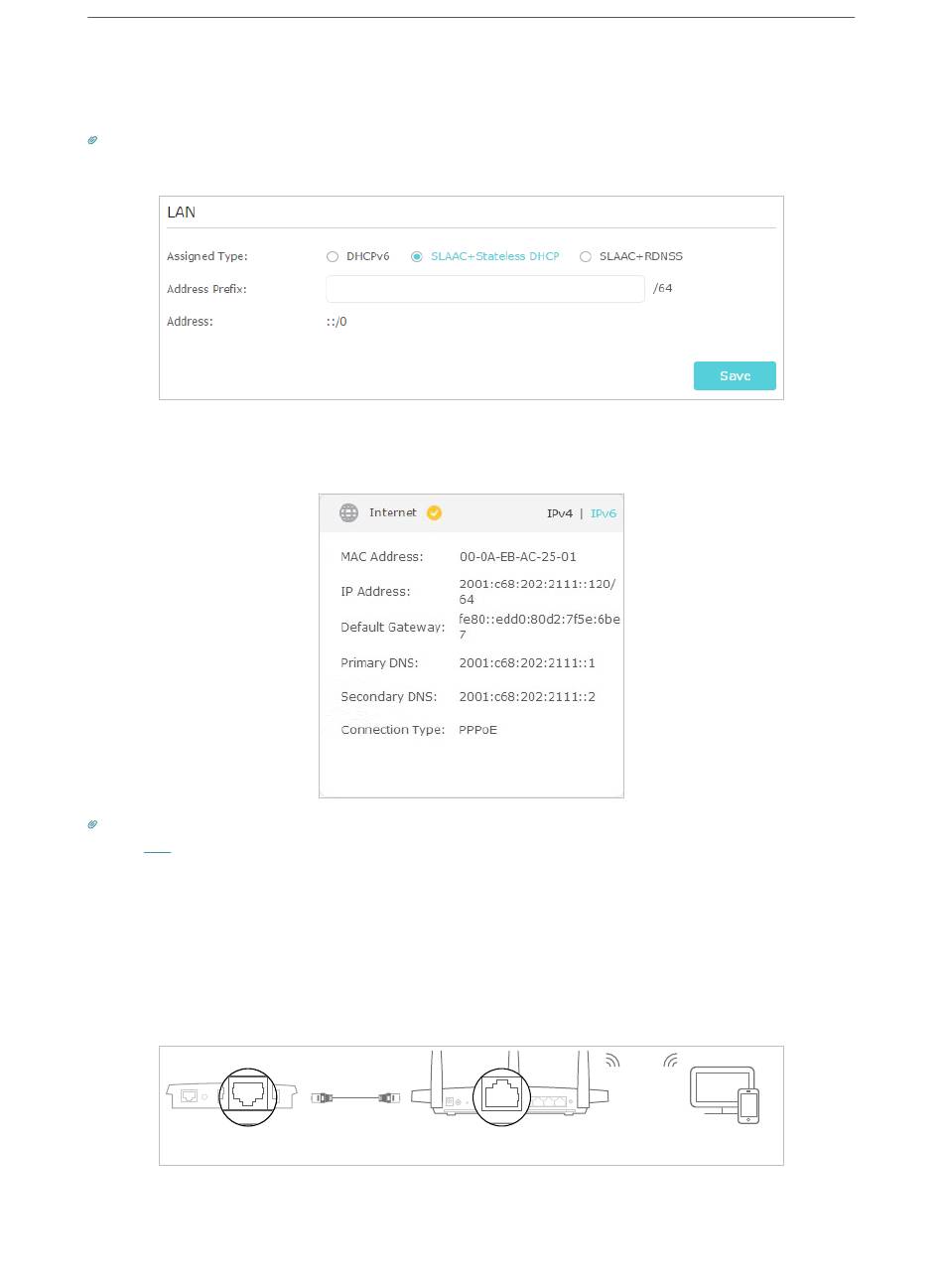

5. Configure LAN ports. Windows users are recommended to choose from the first two
types. Fill in Address Prefix
Tips:
Find Help on the management interface to know more about items.
6. Click Status to check whether you have successfully set up an IPv6 connection. The
following figure is an example of a successful PPPoE configuration.
Tips:
Visit the FAQ section if there is no internet connection.
4 4

Configure the Router in Access Point Mode

In this mode, your router connects to a wired or wireless router via an Ethernet cable
and extends the wireless coverage of your existing network. Advanced functions like
NAT, Parental Controls and QoS are not supported in this mode.
Internet Ethernet1Ethernet2 Ethernet3 Ethernet4
Ethernet
Existing Router
1. Connect the router's Internet port to the existing router's Ethernet port via an
Ethernet cable.
provided by your ISP, and click Save.
Ethernet4 Internet
New Router
Set Up Internet Connection
Clients
