Satel INT-CR Quick Installation Manual

INT-CR
PROXIMITY CARD ARM/DISARM DEVICE
The INT-CR device is designed for arming / disarming partitions as well as clearing alarms
using proximity cards. The device is compatible with the INTEGRA (firmware version 1.07 or
newer) / INTEGRA Plus / VERSA / VERSA Plus / VERSA IP control panels.
Installation
Disconnect power before making any electrical connections.
The device is designed for indoor installation.
If the device is installed on a metal surface, the card reading range will be reduced.
The distance to another device with proximity card reader should be at least
50 centimeters.
If you need an extra cable to make the connections, use an unshielded non-twisted cable. If
you use the twisted-pair type of cable, remember that CLK (clock) and DTA (data) signals
must not be sent through one twisted pair. The distance between the device and the control
panel can be up to 1000 meters (INTEGRA / INTEGRA Plus) / 600 meters (VERSA /
VERSA Plus / VERSA IP).

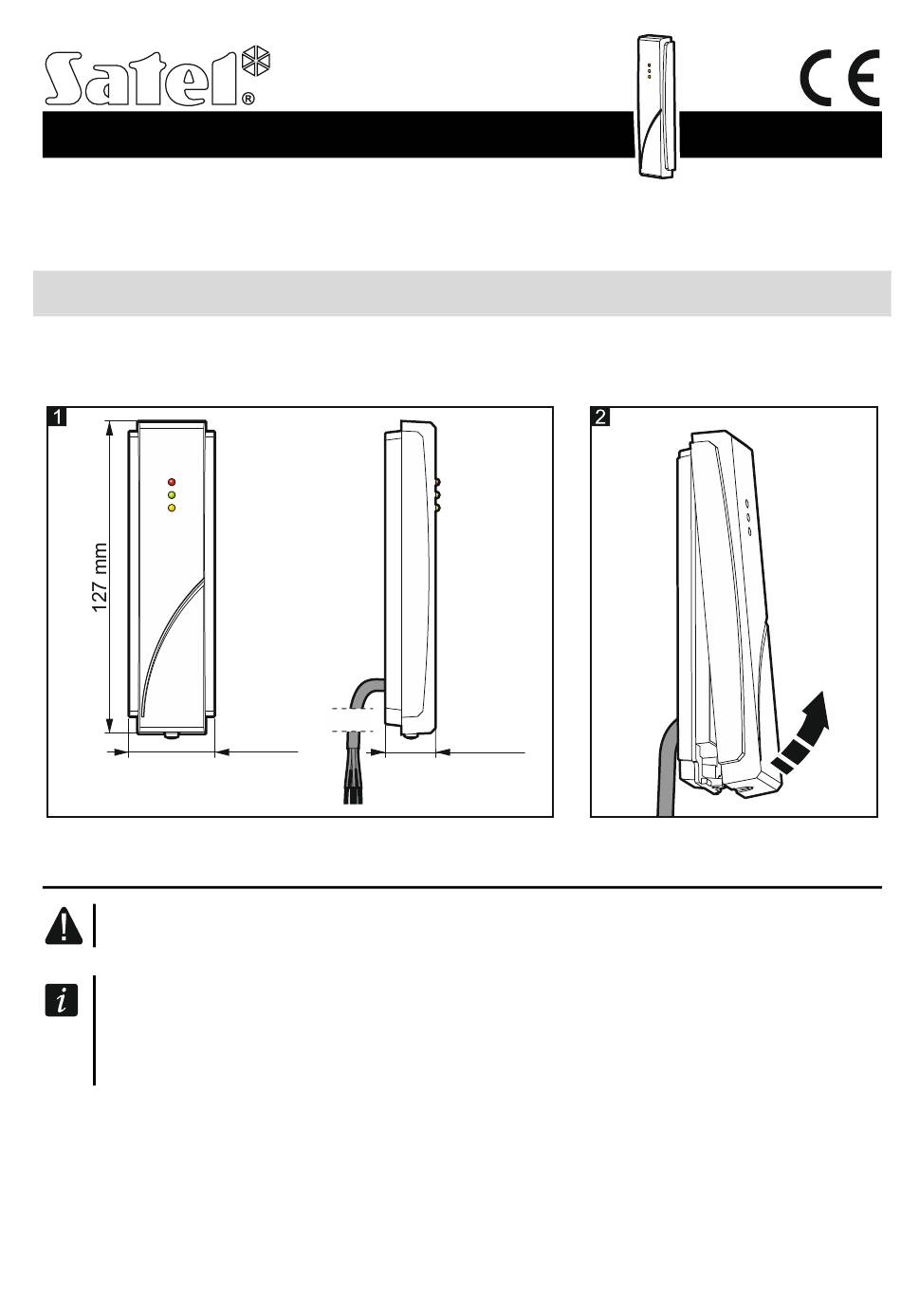

1. Remove the device cover (Fig. 2).
2. Place the enclosure base against the wall and mark the location of mounting holes.
3. Drill holes for wall plugs (anchors) in the wall.
Quick installation guide
Full manual is available on
35 mm
www.satel.eu
21 mm
