Satel CZ-EMM Manual

Proximity card reader

CZ-EMM

PROXIMITY CARD READER

cz_emm_en 12/19

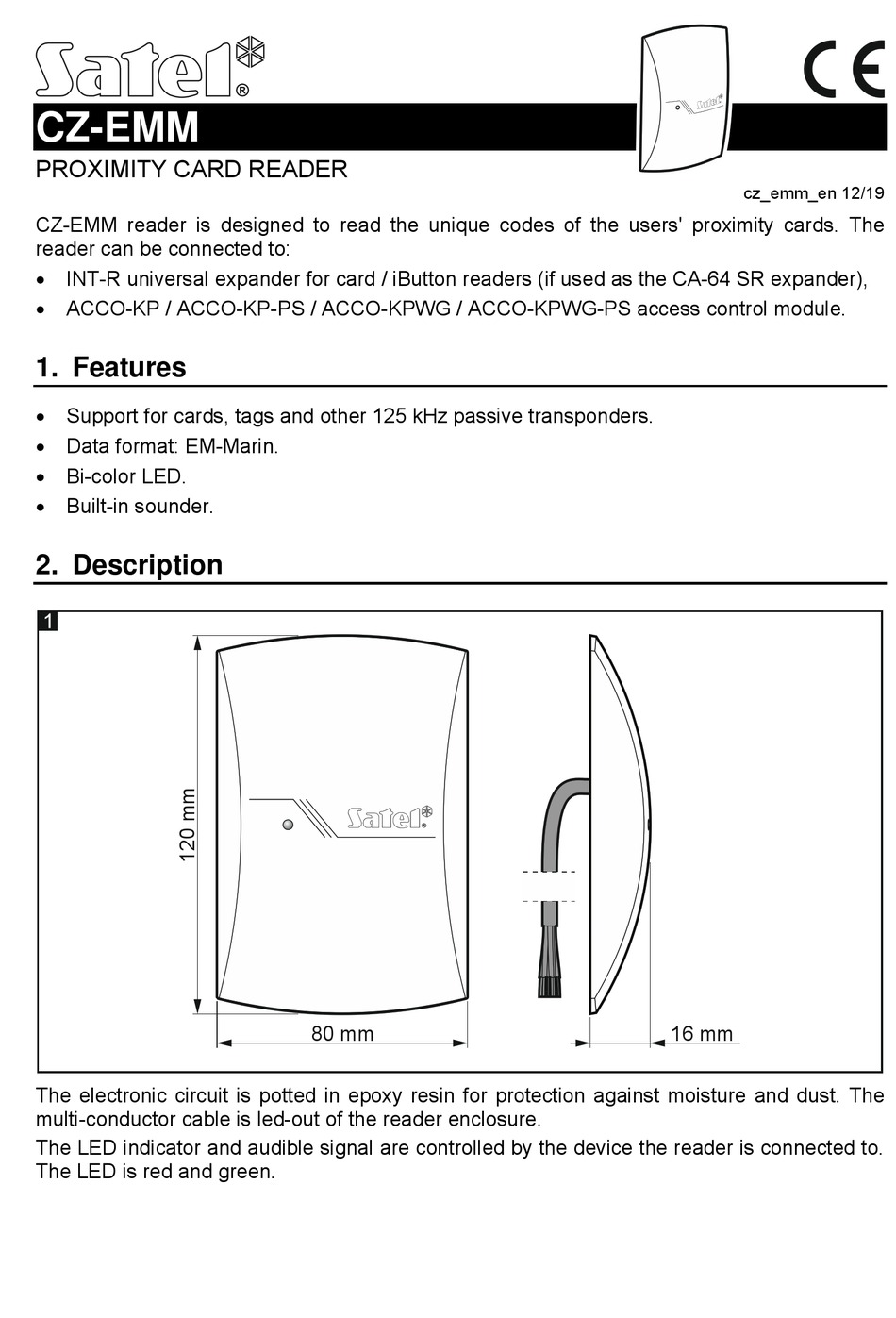

CZ-EMM reader is designed to read the unique codes of the users' proximity cards. The

reader can be connected to:

 INT-R universal expander for card / iButton readers (if used as the CA-64 SR expander),

 ACCO-KP / ACCO-KP-PS / ACCO-KPWG / ACCO-KPWG-PS access control module.

1. Features

 Support for cards, tags and other 125 kHz passive transponders.

 Data format: EM-Marin.

 Bi-color LED.

 Built-in sounder.

80 mm

16 mm

The electronic circuit is potted in epoxy resin for protection against moisture and dust. The

multi-conductor cable is led-out of the reader enclosure.

The LED indicator and audible signal are controlled by the device the reader is connected to.

The LED is red and green.

Table of Contents

Do you have a question about the CZ-EMM and is the answer not in the manual?

Page 1 PROXIMITY CARD READER cz_emm_en 12/19 CZ-EMM reader is designed to read the unique codes of the users' proximity cards. The reader can be connected to:  INT-R universal expander for card / iButton readers (if used as the CA-64 SR expander), ...
Page 2 If the reader is installed on a metal surface, the card reading range will be reduced. To avoid this, you can use the CZ-EMM-POD pad, which is available in SATEL's product range. Two readers connected to the same device can work when situated a short distance from each other.
Page 3 SATEL CZ-EMM 7. Connect the wires to the device screw terminals according to the table below. Terminals Wire Description Reader A Reader B power green data SIGA / SIG1A SIGB / SIG1B blue common ground yellow sounder pink LED green color...
