Satel CZ-EMM3 Manual

Proximity card reader

The CZ-EMM3 and CZ-EMM4 proximity card readers - also referred to as the

„reading heads" - are designed for reading out the code of proximity cards, token

key fobs or other passive transponders in access control systems. They can be

used in conjunction with the CA-64 SR proximity card reader expander and the

ACCO-KP and ACCO-KP-PS door controller modules, manufactured by the SATEL

Company. They are capable of interfacing with other access control devices which

receive data in one of the reader supported formats. Design of the readers enables

them to be installed outdoors. The CZ-EMM4 reader is fitted with a bell button.

1. Description of the readers

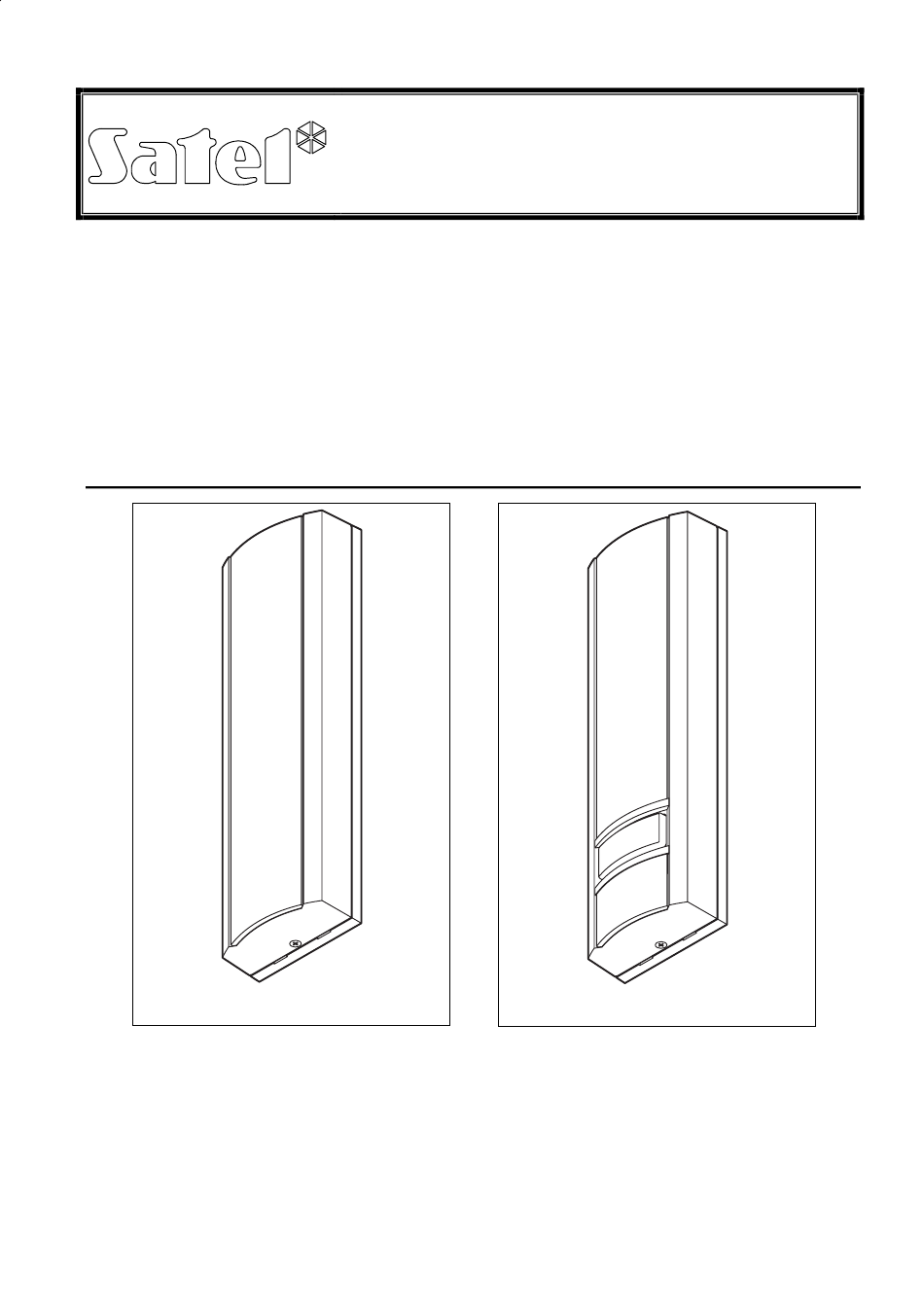

Fig. 1. CZ-EMM3 reader.

The heads can transmit data (i.e. the read-out code) in one of the following formats:

− EM-MARIN (which is used for communication with the devices manufactured by

SATEL)

− WIEGAND 26

− CLOCK&DATA

The way of changing the data transmission format is described in section

ONFIGURATION OF THE READERS

PROXIMITY CARD READER

CZ-EMM3

CZ-EMM4

Fig. 2. CZ-EMM4 reader.

cz-emm34_en 08/08

Table of Contents

Do you have a question about the CZ-EMM3 and is the answer not in the manual?

Page 1 CZ-EMM4 cz-emm34_en 08/08 The CZ-EMM3 and CZ-EMM4 proximity card readers - also referred to as the „reading heads” - are designed for reading out the code of proximity cards, token key fobs or other passive transponders in access control systems. They can be...
Page 2 The length of the cable connecting the head to the control device should not exceed 30 m. The CZ-EMM3 and CZ-EMM4 readers should be hooked up to the SATEL made modules (CA-64 SR, ACCO-KP, ACCO-KP-PS) in accordance with Table 1.
Page 3 BELL (CZ-EMM4 only) Table 1. Description of cables and connection of reader cables to terminals of SATEL manufactured modules. 3.2 Configuration of the readers The reader with factory settings transmits data in the EM-MARIN format to the control device, and its inputs (buzzer and LEDs control, head operation blocking) are activated by the high status (applying 5…12V voltage).
Page 4: Technical Data
Current-carrying capacity, BELL output ..............30 mA Head operating frequency .................. 125 kHz Data transmission standard...... EM-MARIN / WIEGAND 26 / CLOCK&DATA Weight: CZ-EMM3 ....................315 g CZ-EMM4 ....................287 g The latest EC declaration of conformity and certificates are available for downloading on our website www.satel.pl...
