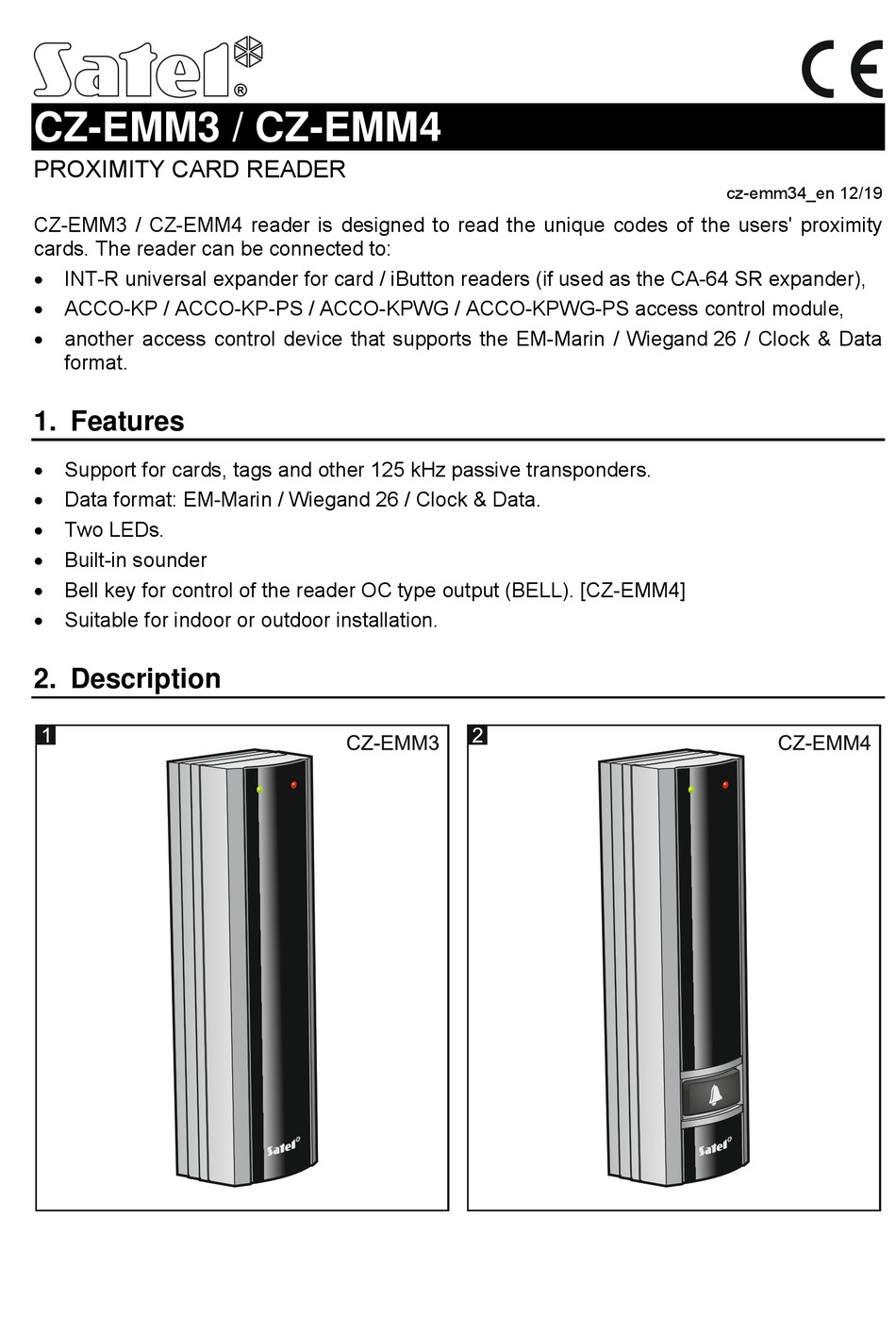

CZ-EMM3 / CZ-EMM4

PROXIMITY CARD READER

cz-emm34_en 12/19

CZ-EMM3 / CZ-EMM4 reader is designed to read the unique codes of the users' proximity

cards. The reader can be connected to:

 INT-R universal expander for card / iButton readers (if used as the CA-64 SR expander),

 ACCO-KP / ACCO-KP-PS / ACCO-KPWG / ACCO-KPWG-PS access control module,

 another access control device that supports the EM-Marin / Wiegand 26 / Clock & Data

format.

1. Features

 Support for cards, tags and other 125 kHz passive transponders.

 Data format: EM-Marin / Wiegand 26 / Clock & Data.

 Two LEDs.

 Built-in sounder

 Bell key for control of the reader OC type output (BELL). [CZ-EMM4]

 Suitable for indoor or outdoor installation.

Table of Contents

Do you have a question about the CZ-EMM3 and is the answer not in the manual?

Page 1 PROXIMITY CARD READER cz-emm34_en 12/19 CZ-EMM3 / CZ-EMM4 reader is designed to read the unique codes of the users' proximity cards. The reader can be connected to:  INT-R universal expander for card / iButton readers (if used as the CA-64 SR expander), ...
Page 2 (different for concrete or brick wall, different for plaster wall, etc.). 6. Close the enclosure and secure it with the screw. 7. If the reader is NOT to be connected to a SATEL device, configure the reader settings (see “Configuring” p. 3).
Page 3 (BELL) [CZ-EMM4] 4. Configuring The reader having the factory default settings is ready to work together with SATEL devices and requires no configuration. The default settings are as follows:  data format: EM-Marin,  reader inputs are high level (5...12 V) sensitive. This setting applies to all inputs of the reader (sounder, green LED, red LED and blocking reader operation).
Page 4: Specifications
Dimensions ....................47 x 158 x 24 mm Weight CZ-EMM3......................315 g CZ-EMM4......................287 g The declaration of conformity may be consulted at www.satel.eu/ce SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
