Satel CZ-EMM2 Manual

Proximity card reader

CZ-EMM2

PROXIMITY CARD READER

cz_emm2_en 12/19

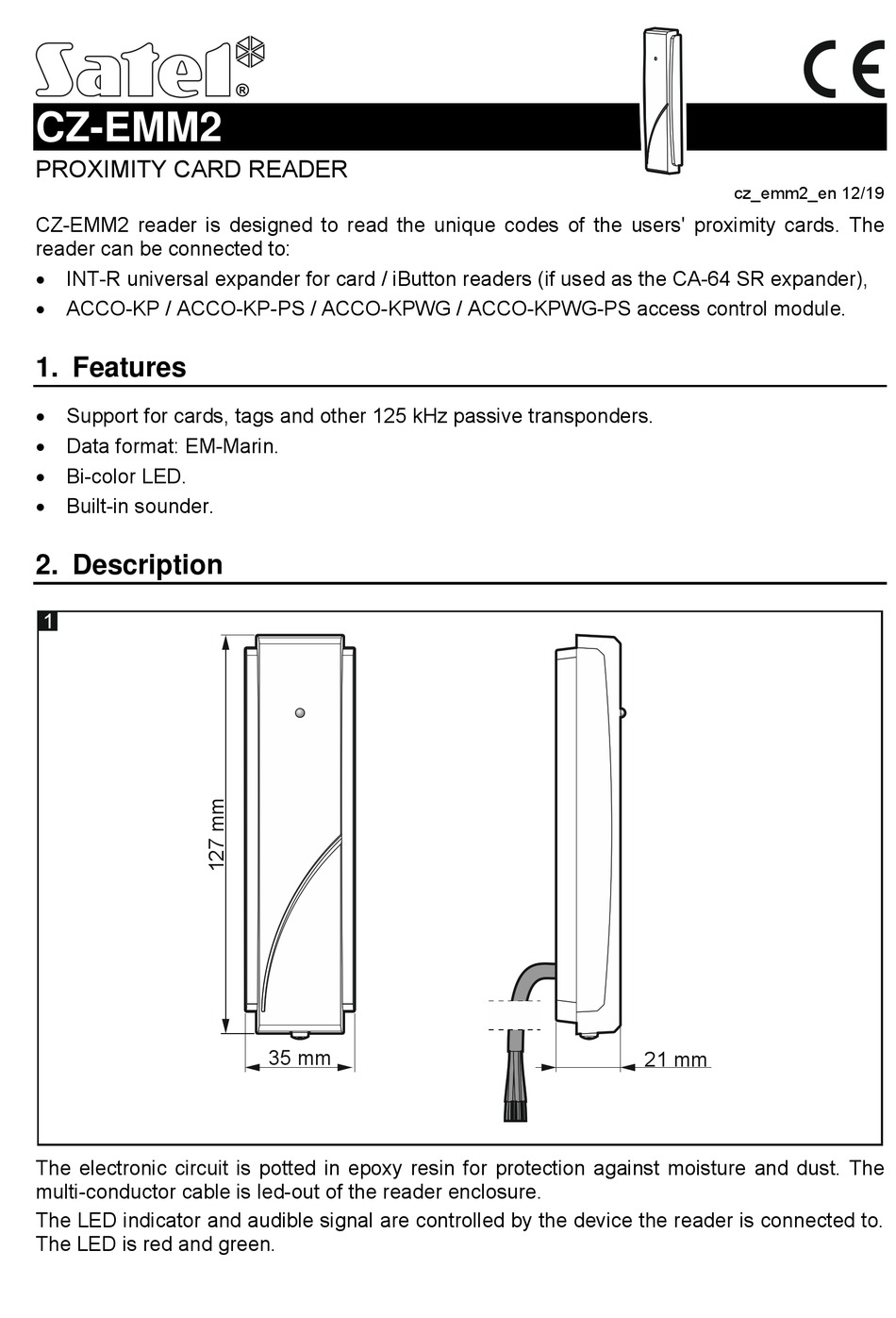

CZ-EMM2 reader is designed to read the unique codes of the users' proximity cards. The

reader can be connected to:

 INT-R universal expander for card / iButton readers (if used as the CA-64 SR expander),

 ACCO-KP / ACCO-KP-PS / ACCO-KPWG / ACCO-KPWG-PS access control module.

1. Features

 Support for cards, tags and other 125 kHz passive transponders.

 Data format: EM-Marin.

 Bi-color LED.

 Built-in sounder.

35 mm

21 mm

The electronic circuit is potted in epoxy resin for protection against moisture and dust. The

multi-conductor cable is led-out of the reader enclosure.

The LED indicator and audible signal are controlled by the device the reader is connected to.

The LED is red and green.

Table of Contents

Do you have a question about the CZ-EMM2 and is the answer not in the manual?

Page 1 PROXIMITY CARD READER cz_emm2_en 12/19 CZ-EMM2 reader is designed to read the unique codes of the users' proximity cards. The reader can be connected to:  INT-R universal expander for card / iButton readers (if used as the CA-64 SR expander), ...
Page 2 CZ-EMM2 SATEL 3. Installation The device should be installed by qualified personnel. Disconnect power before making any electrical connections. The reader is designed for indoor installation. The reader should not be exposed to direct contact with water. If the reader is installed on a metal surface, the card reading range will be reduced.
Page 3: Specifications
SATEL CZ-EMM2 7. Connect the wires to the device screw terminals according to the table below. Terminals Wire Description Reader A Reader B power green data SIGA / SIG1A SIGB / SIG1B blue common ground yellow sounder pink LED green color...
Page 4 CZ-EMM2 SATEL The declaration of conformity may be consulted at www.satel.eu/ce SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
