Quick reference delair® Etsiline CommPact

Starting Air Dryer

1. Connect the air dryer to the power supply

Switch S4 to turn ON (I) the air dryer.

3. Display AT1 will illuminate and starts to display process status, running hours, pressure and status

internet connection

4. By opening (switch upwards) valves on the front side of the unit (V1 till V8) the corresponding

connection on back side of the unit will deliver dry air.

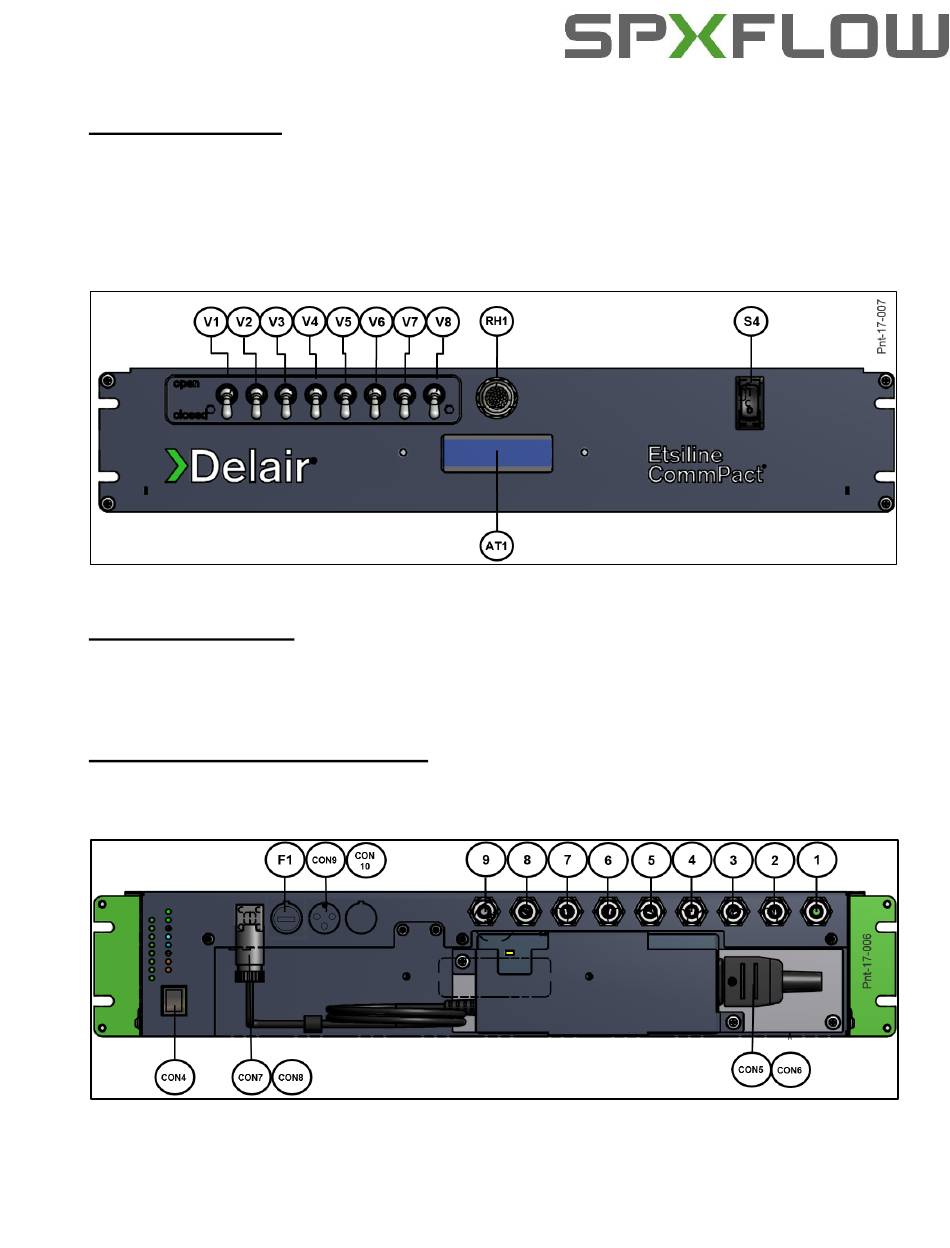

Figure 1; Front view with identification of controls

1. Switch S4 to turn OFF (0) the air dryer.

2. Close the dry-air supply valves (V1...V8)

3. Disconnect dryer from power supply if necessary

All connections are positioned on the back side of the unit.

Figure 1.2; Back view with identification of connections (option with adaptor is shown here)

Table of Contents

Do you have a question about the Delair Etsiline CommPact and is the answer not in the manual?

Page 1 Quick reference delair® Etsiline CommPact Starting Air Dryer 1. Connect the air dryer to the power supply Switch S4 to turn ON (I) the air dryer. 3. Display AT1 will illuminate and starts to display process status, running hours, pressure and status internet connection 4.
Page 2 Quick reference delair® Etsiline CommPact Electrical power supply standard :48Vdc To be connected to male-connector CON8. Female socket (CON7) included in delivery. See below how connector needs to be wired; CON7 48Vdc Supply connector CON8 Female socket CON7 included in delivery. 3-pole connection suitable for 48Vdc.
Page 3 Quick reference delair® Etsiline CommPact Logging in through ethernet After connecting the delair® Etsiline CommPact (connector CON4) to internet, it is possible to check the status of the dehydrator and change parameters like working pressure and alarms. At start-up of the dehydrator you read on the display (line 2) the IP address of the unit. After you have filled in the IP address in your web browser (preferable Google Chrome), you need to fill in your Username and Password.
