Smart Machine Smart Decision
3.3. P
ackage Dimensions

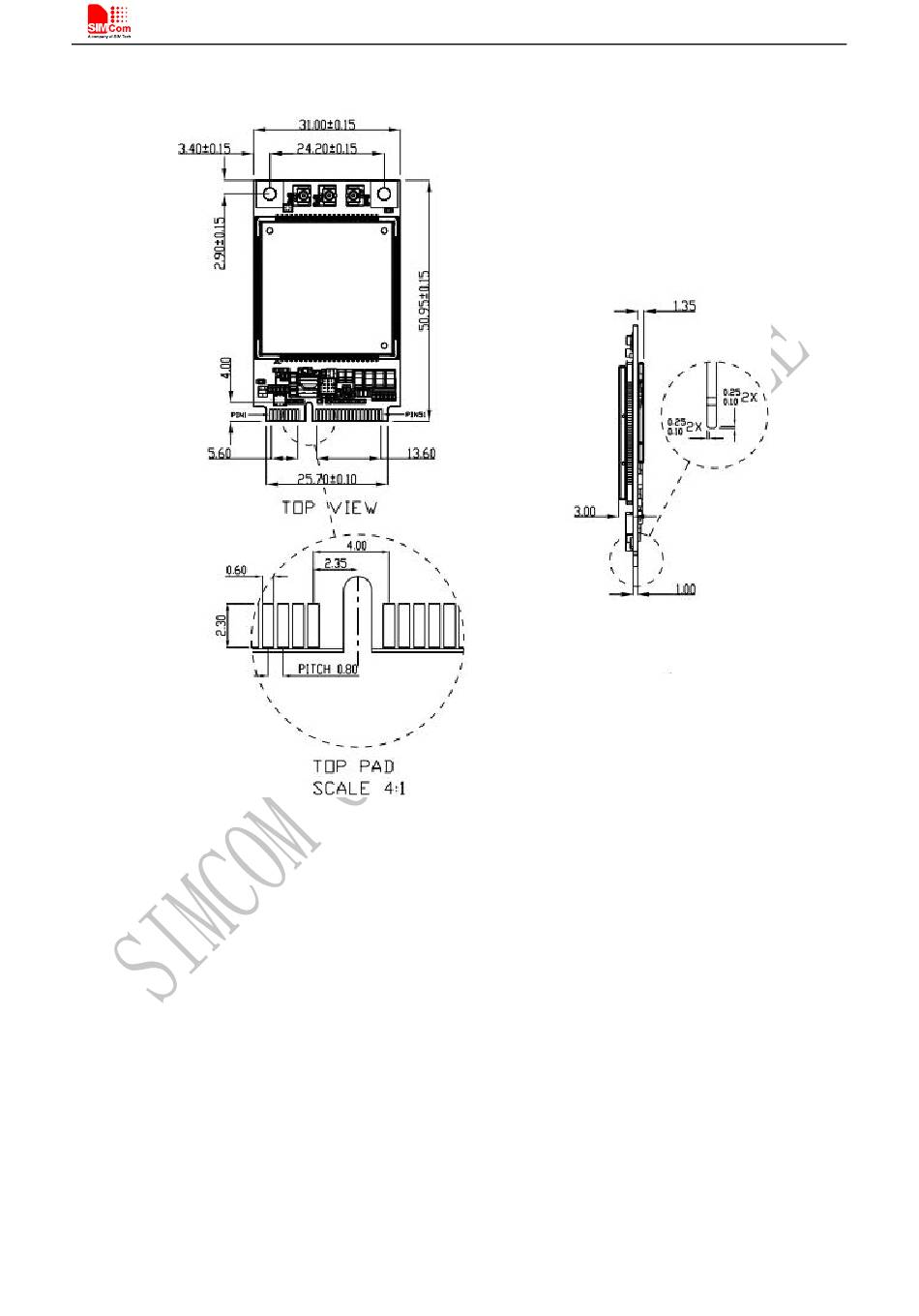

Figure 3: Dimensions of SIM7100-PCIE(Unit: mm)
：
Note
Please refer to appendix for package dimension details.
SIM7100-PCIEA_Hardware_Design
19
2014-11-03
