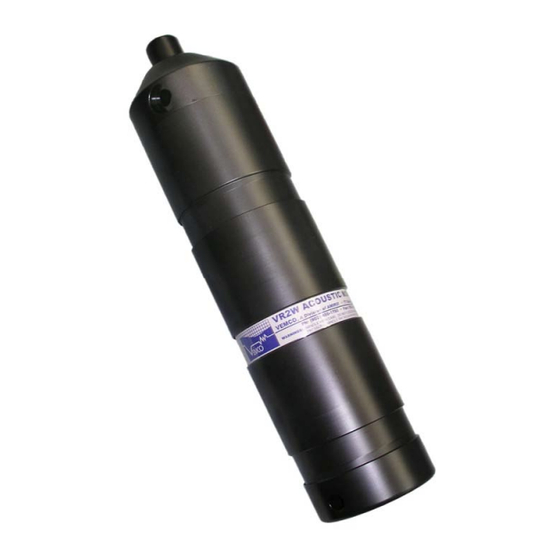

- Page 1 VR2W BASICS MANUAL December 9, 2011 For the latest versions of user manuals and software, visit www.vemco.com...
- Page 2 REMEDY VEMCO’s liability, and the Buyer’s exclusive remedy under this warranty, as to a defect in material or workmanship, is limited to the repair of such defect in the accessory, equipment or part in which the defect appears or, at VEMCO’s option, to the replacement of such accessory, equipment or part with a similar item free from defect.
-
Page 3: Battery Life
A pair of rods is included with each shipment of VR2W receivers. Opening the VR2W Case 1) Make sure there is absolutely no water on or near the VR2W case. If the VR2W is attached to a wet rope, remove the receiver from the rope before opening the case. - Page 4 10) Slide the end-cap and cylinder apart until the battery compartment has cleared the cylinder. WARNING: DO NOT impact the threads on the end-cap or they will dent and prevent the VR2W case from closing. See the Trouble Shooting section of VR2W manual for tips on thread care. Inserting / Connecting Battery...
- Page 5 7) Place the VR2W on a clean, flat surface so the transducer is hanging over the edge as shown in the photo. DO NOT let the receiver fall off the surface.
- Page 6 5) Wrap the cable tie labelled 4 in the photo below around the body of the VR2W so the cable tie is in the bottom half of the lower groove in the VR2W body (see the photo below).
- Page 7 NOT re-use cable ties. Use only new cable ties when deploying a VR2W receiver. LED FLASHES The red LED on the side of the VR2W case flashes based on the task being performed or the status of the receiver. The flashes can be interpreted using the table below.
- Page 8 VEMCO a Division of AMIRIX Systems Inc. 211 Horseshoe Lake Drive Halifax, Nova Scotia, Canada B3S 0B9 Phone: 902-450-1700 Fax: 902-450-1704 www.vemco.com...
