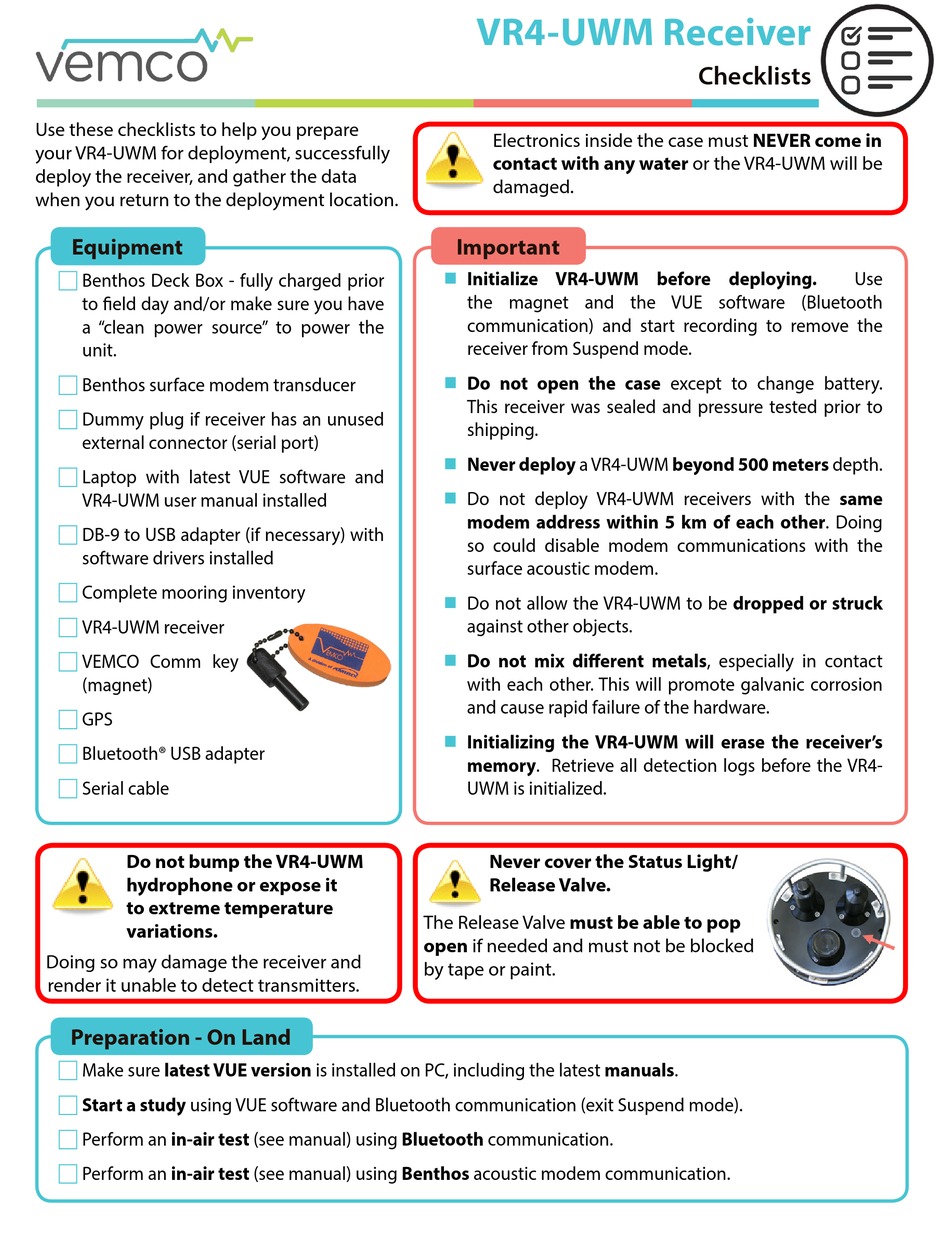

Use these checklists to help you prepare
your VR4-UWM for deployment, successfully
deploy the receiver, and gather the data
when you return to the deployment location.
Equipment
Benthos Deck Box - fully charged prior
F
to field day and/or make sure you have
a "clean power source" to power the
unit.
Benthos surface modem transducer
F
Dummy plug if receiver has an unused
F
external connector (serial port)
Laptop with latest VUE software and
F
VR4-UWM user manual installed
DB-9 to USB adapter (if necessary) with
F
software drivers installed
Complete mooring inventory
F
VR4-UWM receiver
F
VEMCO Comm key
F
(magnet)
GPS
F
Bluetooth® USB adapter
F
Serial cable
F
Do not bump the VR4-UWM
hydrophone or expose it
to extreme temperature
variations.
Doing so may damage the receiver and
render it unable to detect transmitters.
Preparation - On Land
Make sure latest VUE version is installed on PC, including the latest manuals.
F
Start a study using VUE software and Bluetooth communication (exit Suspend mode).
F
Perform an in-air test (see manual) using Bluetooth communication.
F
Perform an in-air test (see manual) using Benthos acoustic modem communication.
F
VR4-UWM Receiver
Electronics inside the case must NEVER come in
contact with any water or the VR4-UWM will be
damaged.
Important
Initialize VR4-UWM before deploying.
the magnet and the VUE software (Bluetooth
communication) and start recording to remove the
receiver from Suspend mode.
Do not open the case except to change battery.
This receiver was sealed and pressure tested prior to
shipping.
Never deploy a VR4-UWM beyond 500 meters depth.
Do not deploy VR4-UWM receivers with the same
modem address within 5 km of each other. Doing
so could disable modem communications with the
surface acoustic modem.
Do not allow the VR4-UWM to be dropped or struck
against other objects.
Do not mix different metals, especially in contact
with each other. This will promote galvanic corrosion
and cause rapid failure of the hardware.
Initializing the VR4-UWM will erase the receiver's
memory. Retrieve all detection logs before the VR4-
UWM is initialized.
Never cover the Status Light/
Release Valve.
The Release Valve must be able to pop
open if needed and must not be blocked
by tape or paint.
Checklists
Use
