Slide the fan straight back into the chassis until the tabs are inserted into the slots (see figure 5,
6.
both cables are not trapped behind or under the fan and are accessible from the front.

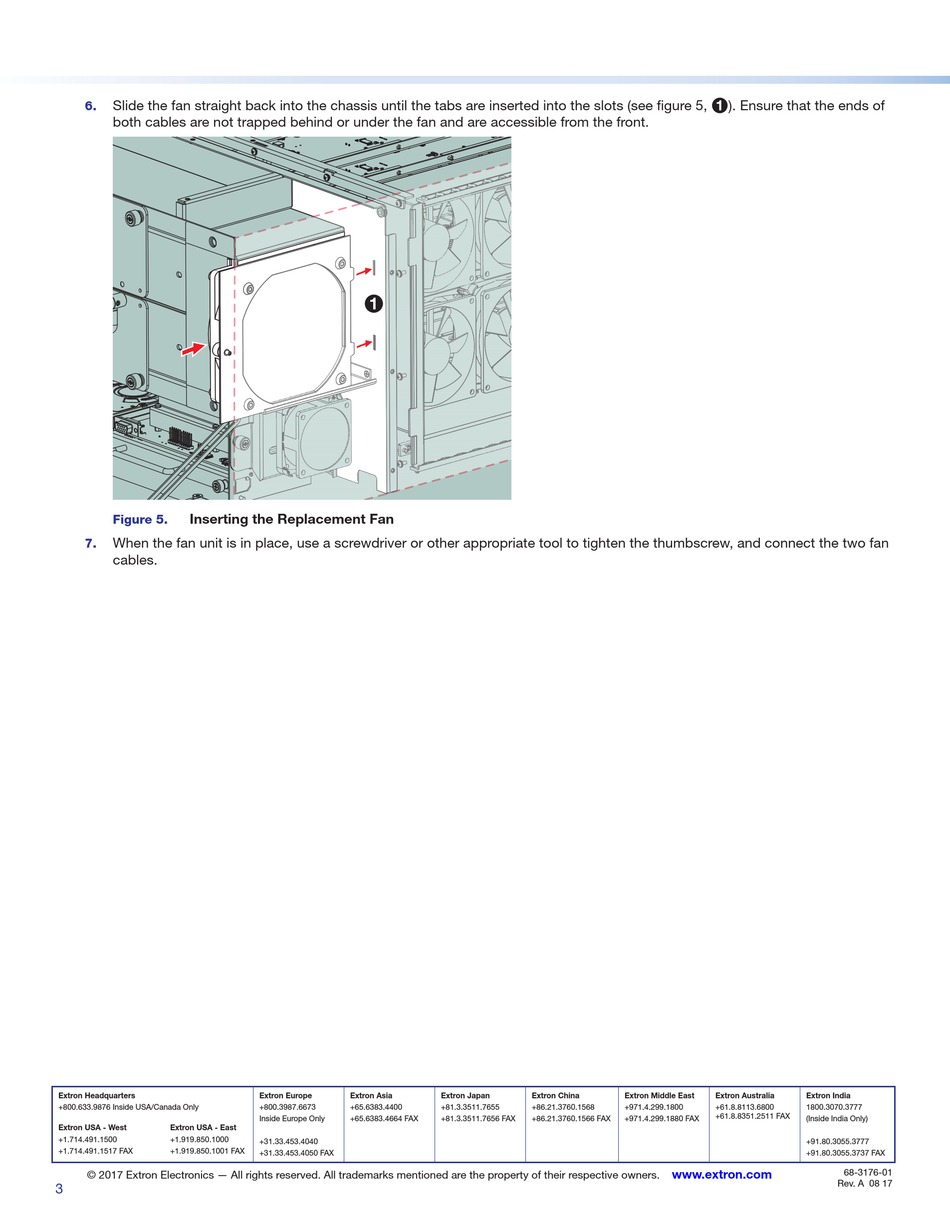

Inserting the Replacement Fan
Figure 5.
When the fan unit is in place, use a screwdriver or other appropriate tool to tighten the thumbscrew, and connect the two fan
7.
cables.
