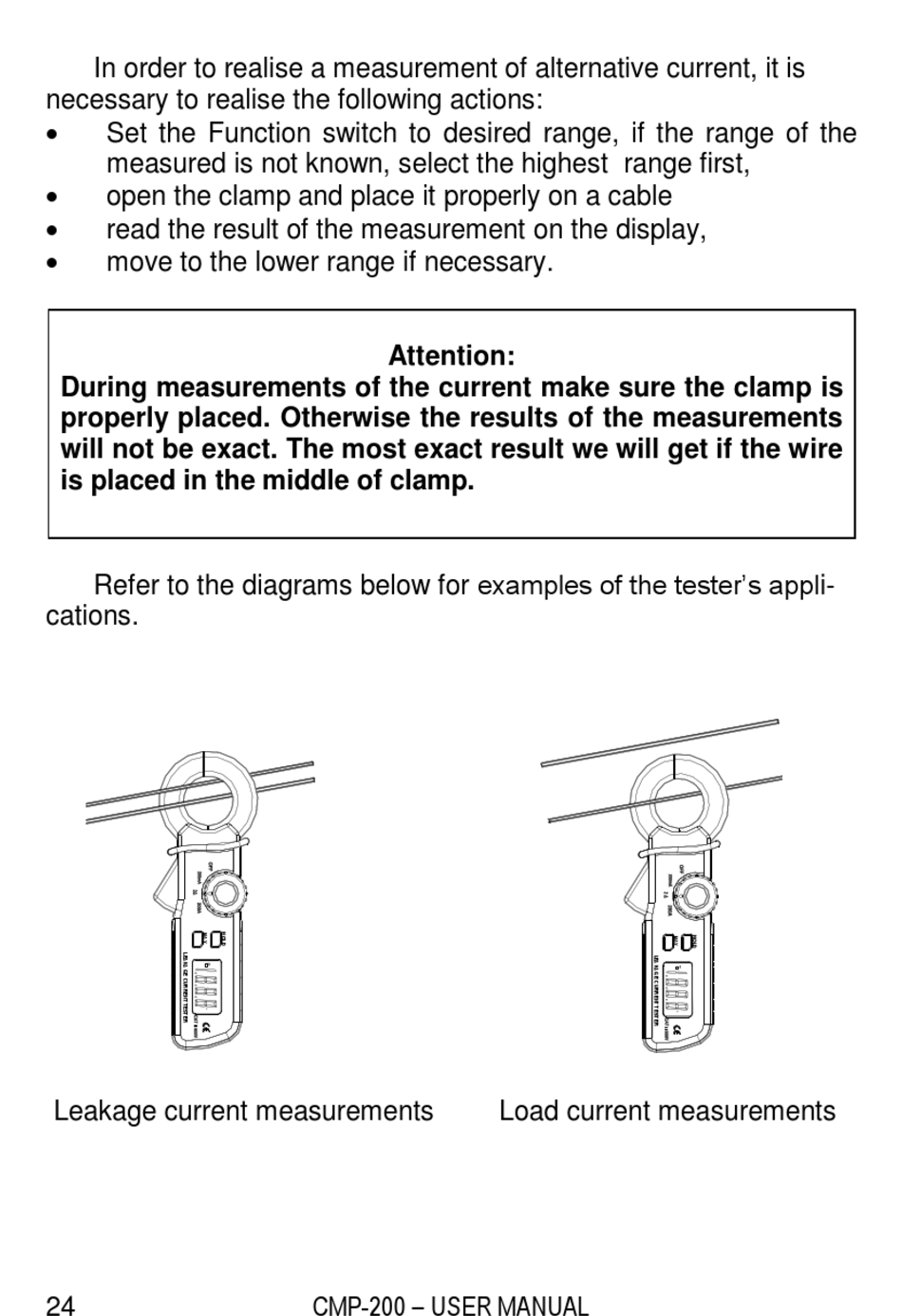

In order to realise a measurement of alternative current, it is
necessary to realise the following actions:

Set the Function switch to desired range, if the range of the
measured is not known, select the highest range first,

open the clamp and place it properly on a cable

read the result of the measurement on the display,

move to the lower range if necessary.
During measurements of the current make sure the clamp is
properly placed. Otherwise the results of the measurements
will not be exact. The most exact result we will get if the wire
is placed in the middle of clamp.
Refer to the diagrams below for examples of the tester's appli-
cations.
Leakage current measurements
24
Attention:
CMP-200 – USER MANUAL
Load current measurements
