1

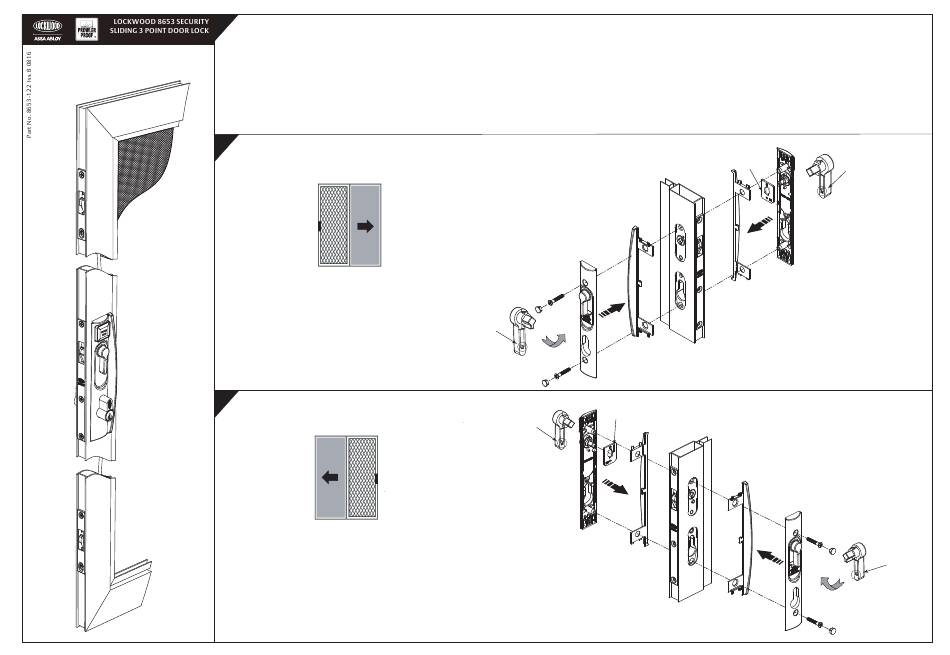

Ascertain the desired handing configurations required

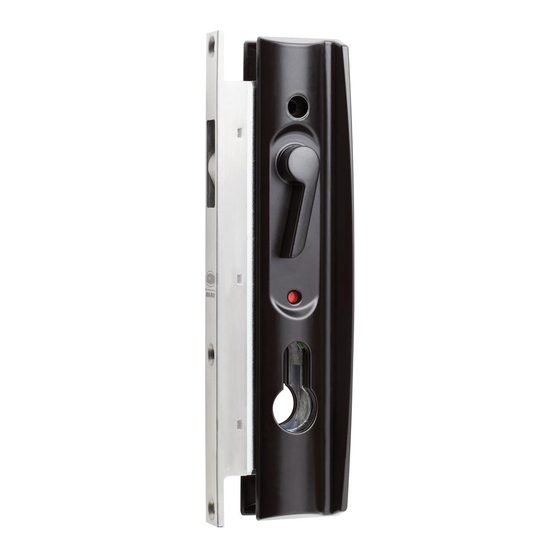

INSTALLATION INSTRUCTIONS
Click the required handed plate and pull handles together
Install external (E) and internal (I) operating levers
Select and install restrictor plate (LH or RH) to external side
Secure furniture plates to door section using 25mm screws and plugs provided
1a
Left Hand door application shown below for reference:
OUTSIDE
VIEW
5
1b
Right Hand door application shown below for reference:
OUTSIDE
VIEW
Click together the Internal
Escutcheon Plate and the
Pull Handle, before
securing to the door
"I"
Restrictor
plate to
External Side
"E"
Click together the External
Escutcheon Plate and the
Pull Handle, before
securing to the door
Restrictor
plate to
"E"
External Side
Click together the External
Escutcheon Plate and the
Pull Handle, before
securing to the door
Click together the Internal
Escutcheon Plate and the
Pull Handle, before
securing to the door
"I"
