Assa Abloy ACCENTRA 836A Installation Instructions Manual

836A, 836B, 838A, & 838B

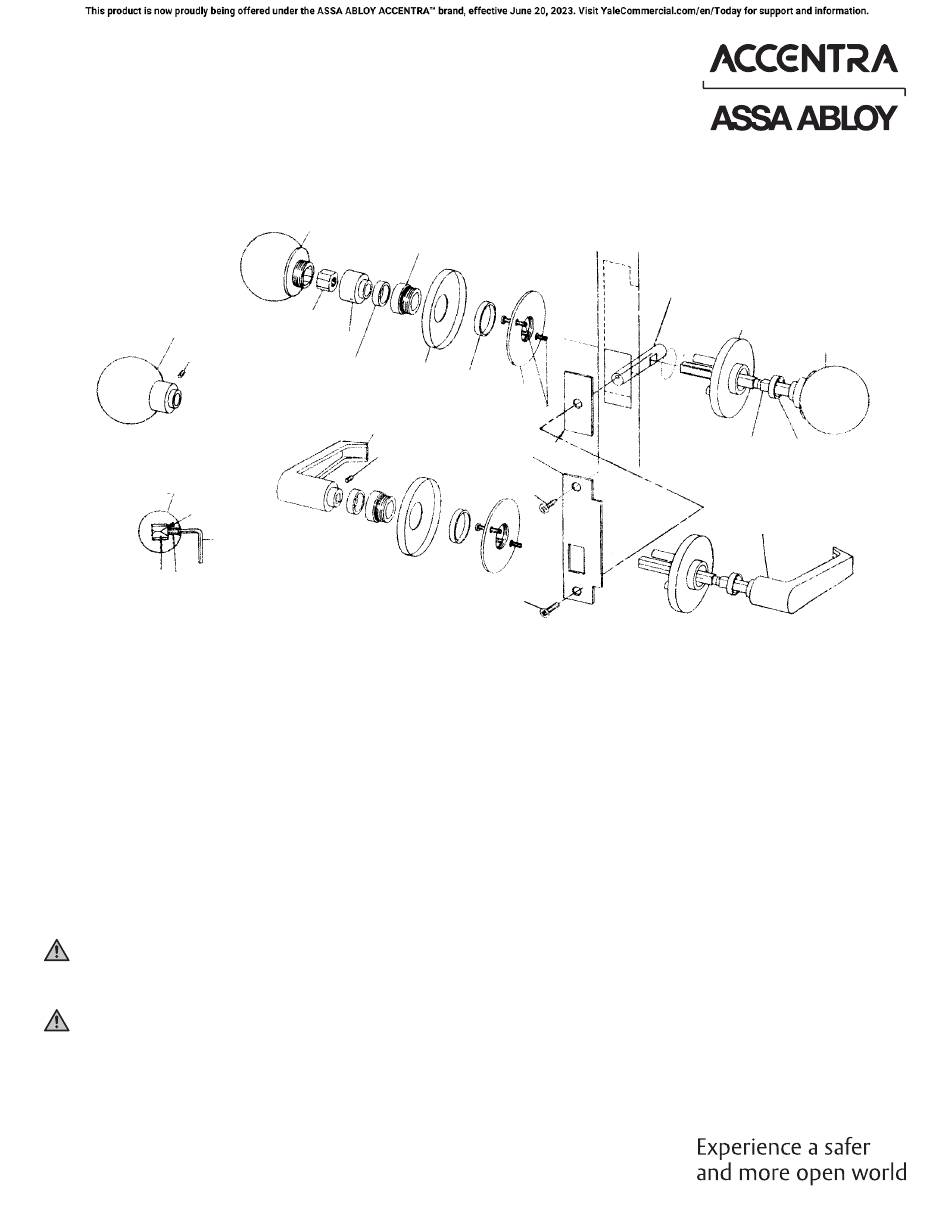

Rigid Knob & Lever Handle Handle Dummy Trim
Installation Instructions
Sectional Trim
Screwless Shank
Inside Knob
Set Screw
Set Screw Shank
Note
Lever Handle
Spindle
Handle
Allen
Wrench
Tri-Plex Spindle
Set Screw
1. Install Spindle Bar
Thread mounting screw into spindle bar several turns. While holding
and manipulating bar with screw, insert spindle bar into edge of
door. Screw must be upward.
2. Install Roses
a. Insert outside rose assembly posts into thru-bolt holes in door.
Align inside rose plate with holes on inside surface of door.
Insert connecting screws thru inside rose plate into the outside
rose assembly posts. Tighten securely.
b. Place inside rose over rose plate, screw rose adapter thru rose
into rose plate. Use blade portion of Knob & Rose Wrench (see
page 4). Insert bushings in both roses.
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65warnings.ca.gov.
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific
situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening,
please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all
applicable codes and ratings.
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
Copyright © 1982, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Inside Knob
Rose Adapter
Spindle Nut
Knob Sleeve
Inside
Bushing Rose
Inside Lever Handle
Set
Screw
Lever Handle
Strike or Dummy Front
Attaching Screw
Spacer
Rose Plate
Attaching Screws
Dummy Front or
ANSI Strike
Strike Attaching
Screw
3A. Install Knobs - Screwless Shank (when used)
a. Disassemble knob assembly.
y Unscrew knob sleeve and remove inside knob from spindle.
y Unscrew spindle nut and remove sleeve
b. Insert outside knob/spindle assembly thru outside rose, door,
spindle bar, and inside rose.
c. Slip knob sleeve on spindle, placing the boss end into the rose
bushing. Screw spindle nut onto spindle. Tighten with wrench
portion of Knob & Rose Wrench (see page 4). just enough to
take the end play out of spindle.
d. Slide the inside knob onto the spindle and over the spindle nut.
Mate the knob to the sleeve. Turn the sleeve by hand to draw up
knob. Tighten sleeve security with spanner portion of Knob &
Rose Wrench (see page 4).
Spindle Bar
Outside Rose
Outside Knob
Spindle
Bushing
Outside Lever Handle
80-9086-0005-010 05/24
