Figure 20

Button description:

♦ [PAGE DOWN]: to display the waveform

of next data stream item.

♦ [GRAPHIC-2]: to display the waveforms

of 2 data stream items.

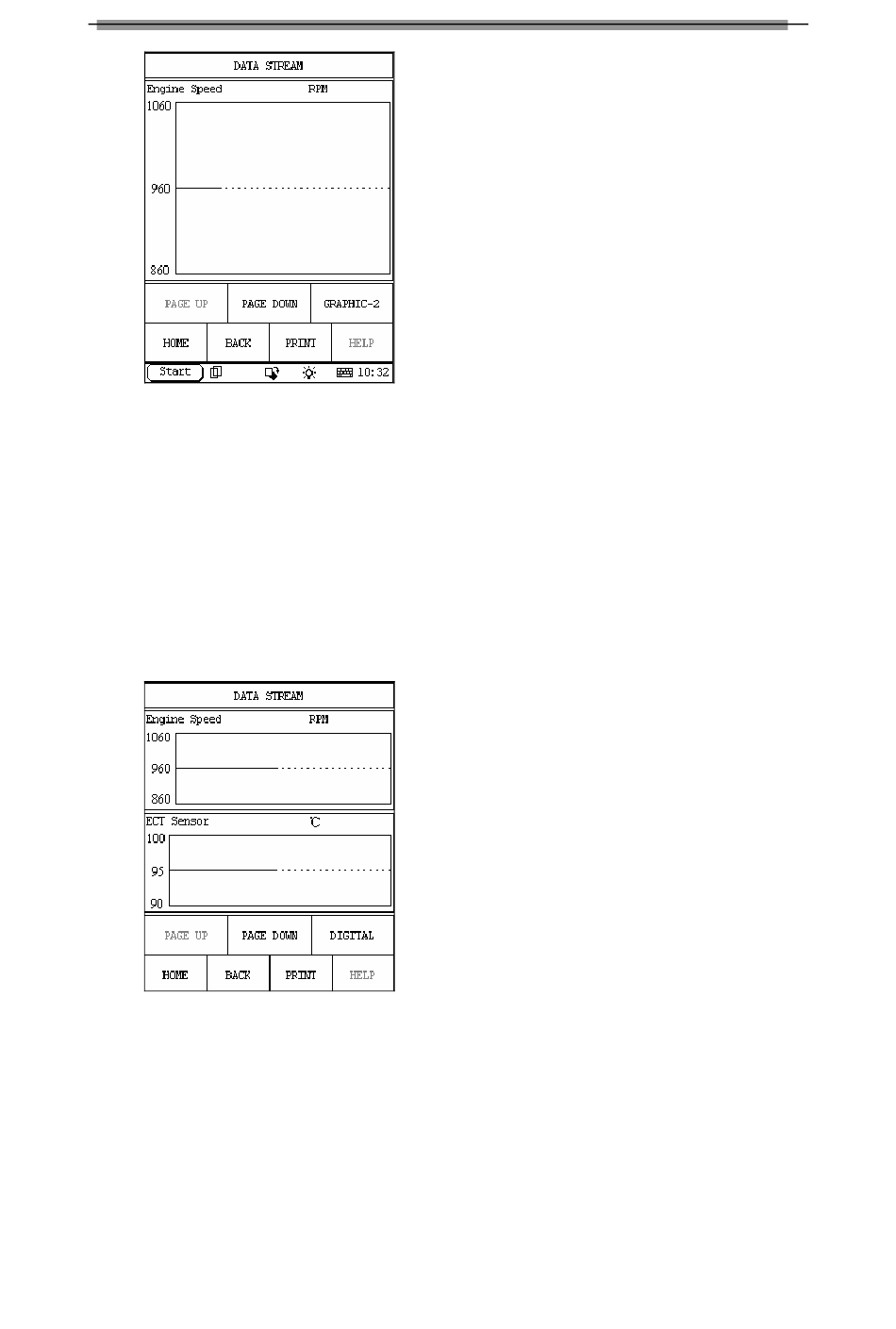

In the screen of single waveform display, click

[GRAPHIC-2] to display the waveforms of 2

data stream items. See Figure 21. This is

helpful to make live comparison between two

correlative data stream items.

Figure 21

X-431 American Ford Diagnosis

Note:

♦ The screen will display the live value of

data stream again if the [DIGITAL] button

is clicked on the screen.

♦ The three display modes -- [DIGITAL],

[GRAPHIC-1] and [GRAPHIC-2] can be

switched in turn.
