Data Monitor

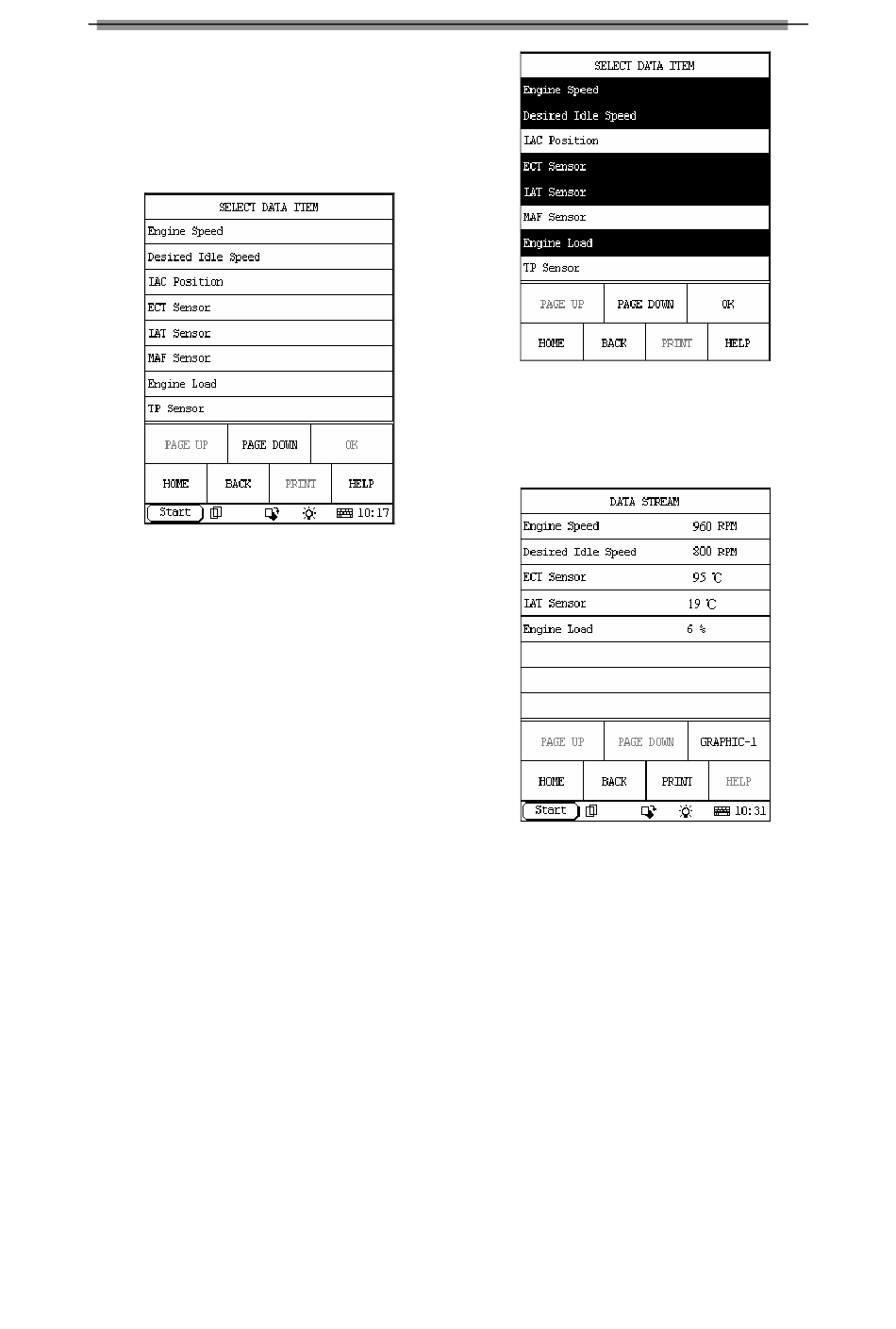

Click [PID/DATA MONITOR] in the function
menu as shown in Figure 13 for reading data
stream. The screen will display a list of data
stream items. Figure 17 shows an example.
Figure 17
Button description:
♦ [PAGE UP]: to display the previous page
of data stream items.
♦ [PAGE DOWN]: to display the next page
of data stream items.
♦ [HOME]: to return to the home page of
vehicle diagnosis.
♦ [BACK]: to go back to the previous
interface.
Click one or more items to see the data. The
selected items will be highlighted as shown in
Figure 18.
X-431 American Ford Diagnosis
After selecting the items, click [OK] button.
Then the screen will display the live value of the
selected data stream items. See Figure 19.
Button description:
♦ [GRAPHIC-1]: to display the waveform of
a data stream item.
♦ [PRINT]: to print the test result.
Click [GRAPHIC-1] button to display the
waveform of one data stream item. Figure 20
shows an example.
6
Figure 18
Figure 19
