Launch X-431 Manual page 5

LAUNCH

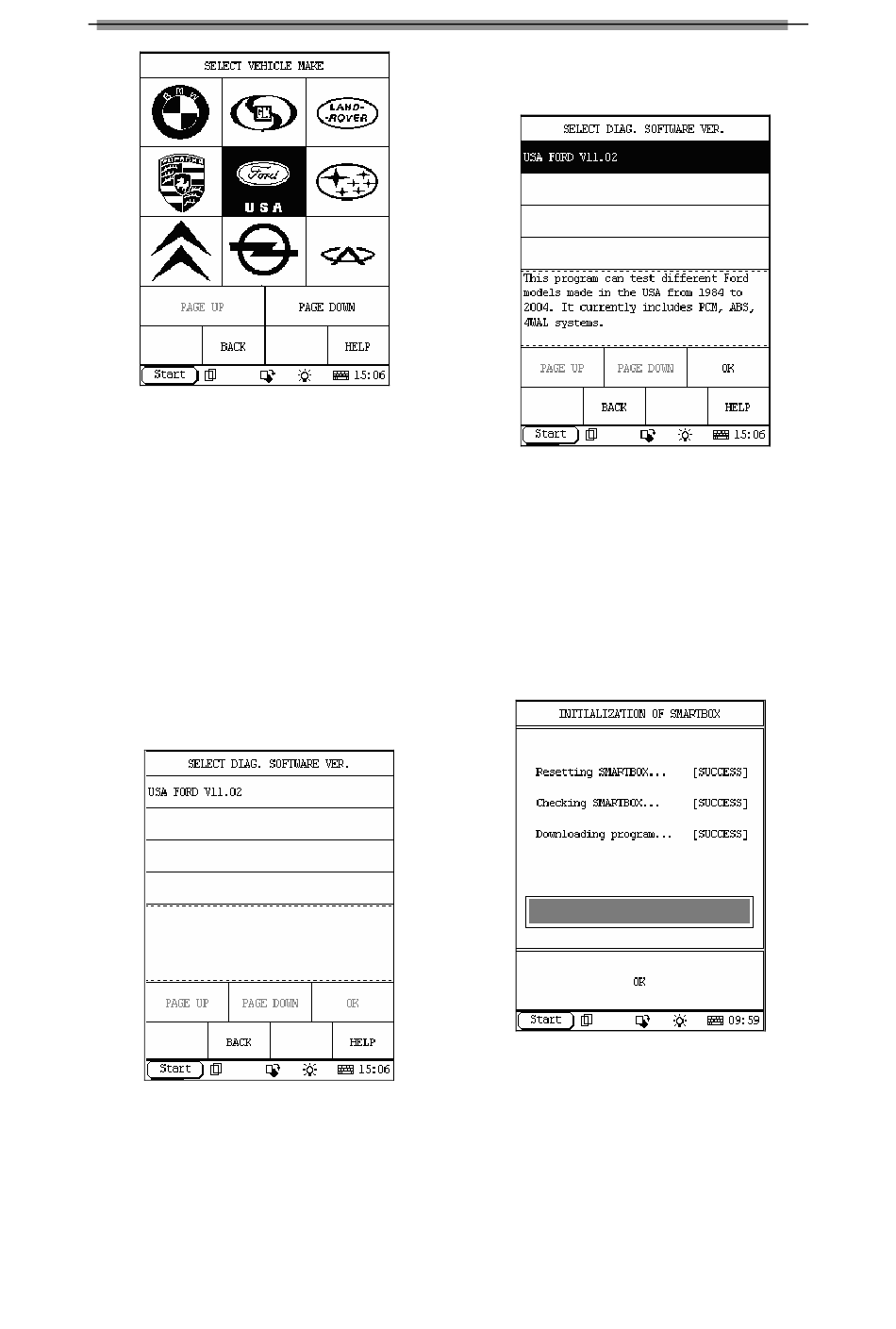

Figure 05
Button descriptions:
♦ [BACK]: to return to the previous
interface.
♦ [PAGE UP]: to display the previous page,
it is inactive if the current page is the
first page.
♦ [PAGE DOWN]: to display the next page,
it is inactive if the current page is the
last page.
♦ [HELP]: to display the help information.
Click the icon of USA Ford on the vehicle make
menu. The screen as shown in Figure 06 will
appear.
Figure 06
X-431 American Ford Diagnosis
Click [USA FORD V11.02]. The screen will
display the information as shown in Figure 07.
The software can diagnose Ford vehicles made
in USA, from model year 1984 to 2004. The
tested system includes PCM, ABS and 4WAL.
Click [OK] button. X-431 begins to reset and
check the SMARTBOX, and load the diagnostic
program from the CF card. After that, the
screen will display the message as shown in
Figure 08.
Figure 08
Button descriptions:
[OK]: to go on the test.
3
Figure 07
