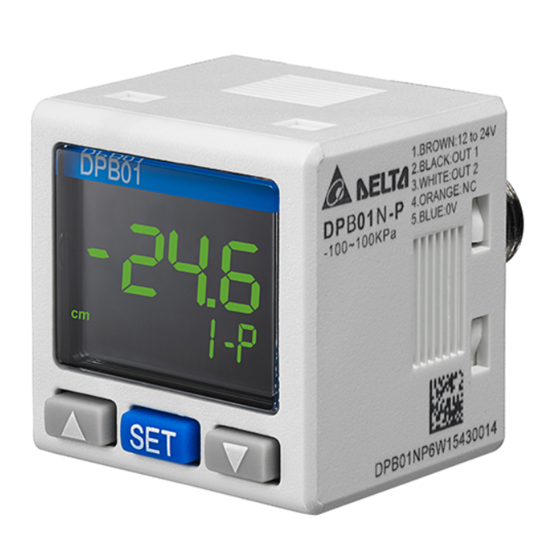

Delta DPB Series Instruction Sheet

Thank you very much for choosing Delta DPB series pressure sensor. Please read this instruction sheet carefully before using your DPB.
Keep this instruction sheet handy for quick reference.
 Warning
DANGER! CAUTION! ELECTRIC SHOCK!
DPB is a pressure measurement device. DO NOT use it out of its specification. Improper pressure or incorrect wiring may
cause series injuries on staff or damages on other devices.
1. Keep away from high-voltage and high-frequency environment during the installation in case of interference. Prevent using the device in
premises which contain:
(a) dust or corrosive gas; (b) high humidity and high radiation; (c) shock and vibration.
2. DPB can only be used for air pressure measurement and should avoid corrosive, inflammable or toxic gas measurement.
3. Make sure the power supply is switched off when installing or dismounting DPB and the pressure source stops its action in case harms
occur on human body and properties.
4. DO use parts compatible to the specification of the pressure pore for connection to avoid mistaken measurement or safety problems.
5. Before switching on the power supply, check the signal connection, e.g. the input voltage and polarity. Voltage that is too high may cause
damages on DPB.
6. DO use dry cloth and DO NOT use acid or alkaline liquid to clean the device.

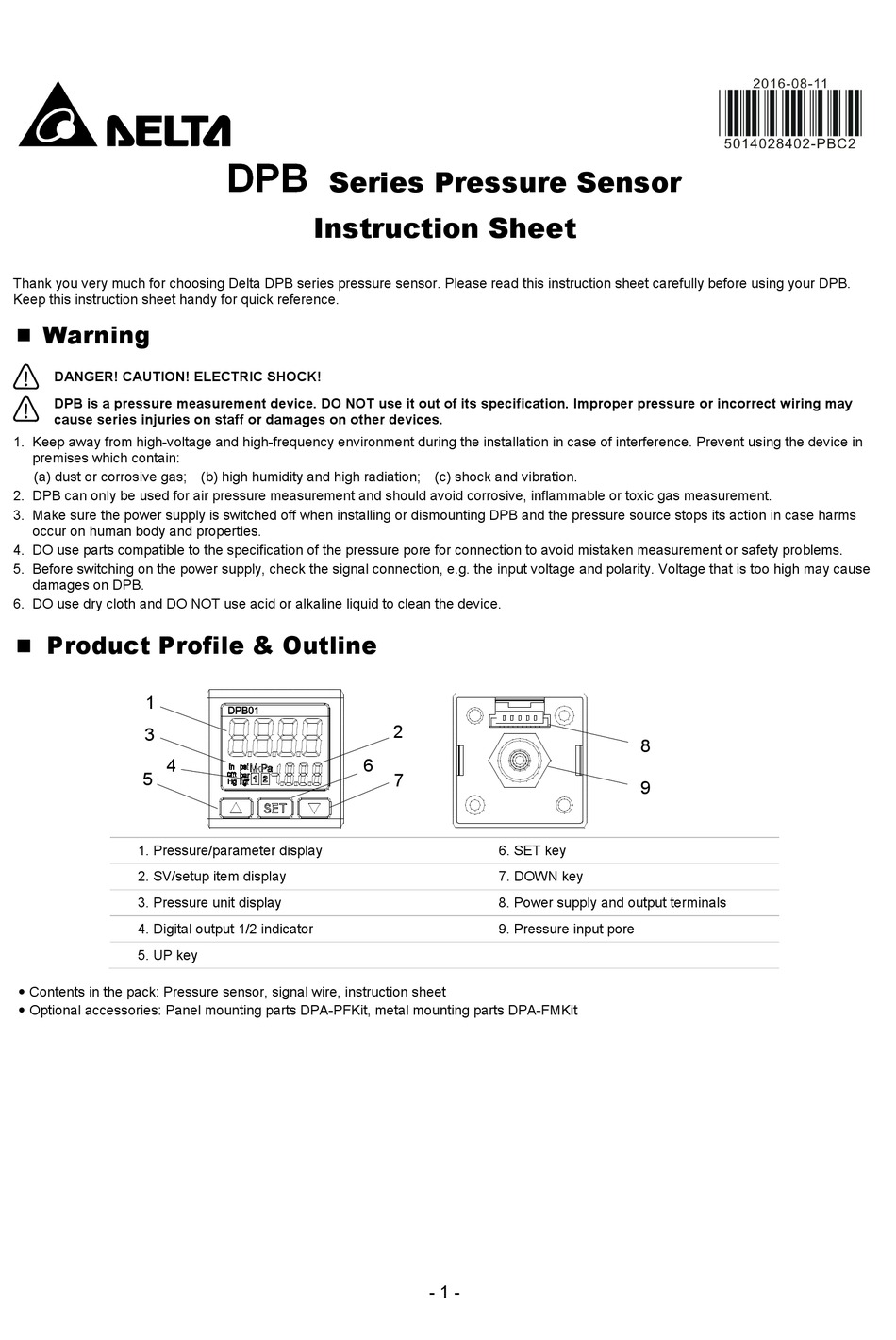

 Product Profile & Outline
1
3
4
5
1. Pressure/parameter display
2. SV/setup item display
3. Pressure unit display
4. Digital output 1/2 indicator
5. UP key
 Contents in the pack: Pressure sensor, signal wire, instruction sheet
 Optional accessories: Panel mounting parts DPA-PFKit, metal mounting parts DPA-FMKit
Series Pressure Sensor
Instruction Sheet
2
6
7
- 1 -
8
9
6. SET key
7. DOWN key
8. Power supply and output terminals
9. Pressure input pore
