Trouble Diagnosis For Swim Meter - DirecTV SWiM Installation Diagrams

Danger: if the voltage light is off, an over voltage condition
exists. DO NOT connect an IRD to this cable until this is
corrected.
The SWiM power inserter may be installed incorrectly or
another device is supplying voltage to the system.
SWiM Installation
Meter
Low Batteries
PWR
When Flashing
Voltage Ok
LF
5 CH
8 CH
Press 2 Seconds
Release to Start Test

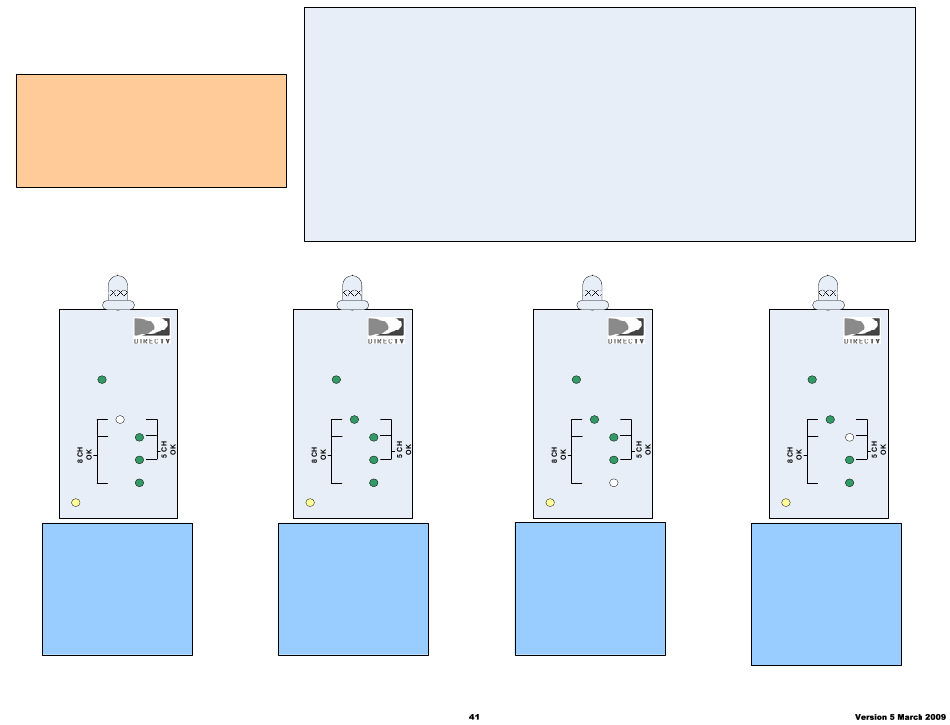

LED Light Example
Conditions Are
PWR On Green
Voltage Ok Off
LF On or Off
5 ch On or Off
8 ch On or Off

Trouble Diagnosis for SWiM Meter:

There are several scenarios you will run into when using the SWiM meter.
(Light Error = Led light is not GREEN in color)
1. Voltage Light Error – Check to make sure Power Inserter SWiM power connector and IRD connector are not reversed.
2. LF Light Error + 5 or 8 ch good, problem with inline splitters. Low Pass not good enough.
3. LF Light Good + 5 ch error and 8 ch error, or 5 ch good, 8 ch error, problem with inline splitters. Low Pass
characteristics good enough but not rated to 2150MHz for 8 channel SWiM-ODU.
4. LF error + 5 and 8 ch error, bad cable run.
5. LF error + 5 and 8 ch error + Voltage error, check to make sure power inserter is properly powering the SWiM-ODU.
SWiM Installation
Meter
Low Batteries
PWR
When Flashing
Voltage Ok
LF
5 CH
8 CH
Press 2 Seconds
Release to Start Test
LED Light Example
8 ch SWiM Operation
PWR On Green
Voltage Ok Green
LF Green
5 ch Green
8 ch Green
SWiM Installation
Meter
Low Batteries
PWR
When Flashing
Voltage Ok
LF
5 CH
8 CH
Press 2 Seconds
Release to Start Test
LED Light Example
5 ch SWiM Operation
PWR On Green
Voltage Ok Green
LF Green
5 ch Green
8 ch Off
SWiM Installation
Meter
Low Batteries
PWR
When Flashing
Voltage Ok
LF
5 CH
8 CH
Press 2 Seconds
Release to Start Test
LED Light Example
If the LF LED is off, the cable run
will not support SWiM operations
PWR On Green
Voltage Ok Green
LF Off
5 ch On or Off
8 ch On or Off
