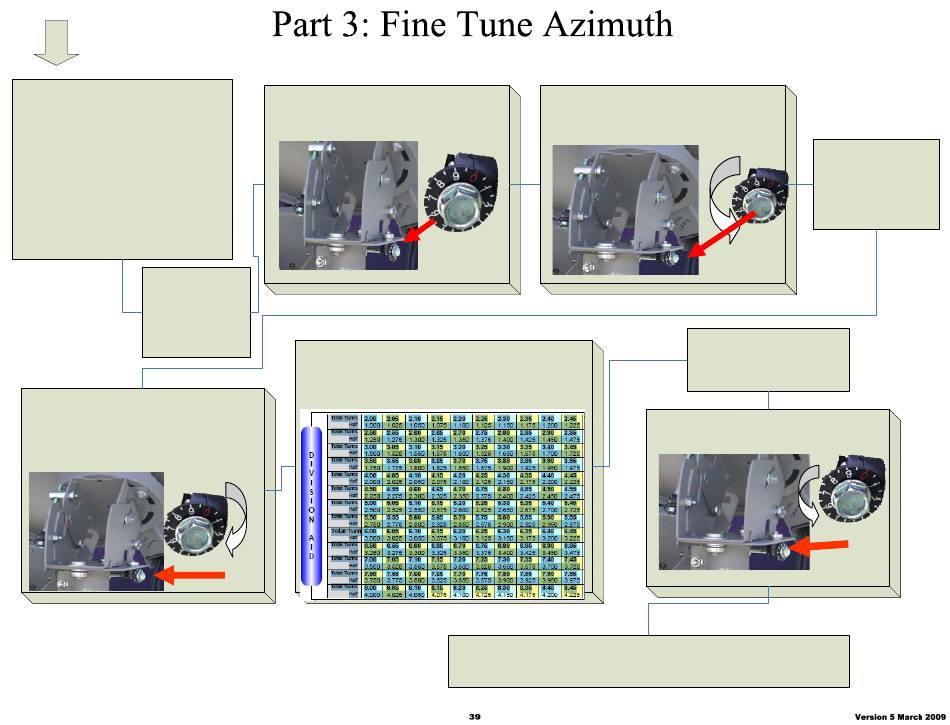

Fine Tuning Azimuth
(1) Set Meter to 101° -
Super Buddy LNB 1,
BirDog DIRECTV SWM 101
Accutrac Specific
(LNB 1, 13v w/o 22KHz )
Accutrac III – Satellite Select
Ka @99, Ku @ 101
Digisat III Specific
( 13v w/o 22KHz )
(2) Record the
signal level
(6) Rotate the bolt "clockwise" counting
turns as well as the fractions until the
same signal level is achieved.
Note: This may require 5 to 7 turns.
(3) Set the plastic dial to zero (0) by hand.
(7) Divide the number by two (2). Note: You can
use the division chart below.
(4) Using a ½ inch nut driver, rotate the
fine tune adjustment bolt 2 full turns
"counter clockwise."
(10) Tighten down the Azimuth bolts and verify signal via the IRD
(Make sure that the the SWM Integrated LNB screws are installed)
(5) Record the signal
(8) Turn the dial, not the
screw back to zero.
(9) Rotate the screw "counter clock
wise" by the divided amount of turns.
level
If good signal
from the IRD, the
Peaking Process
is complete
