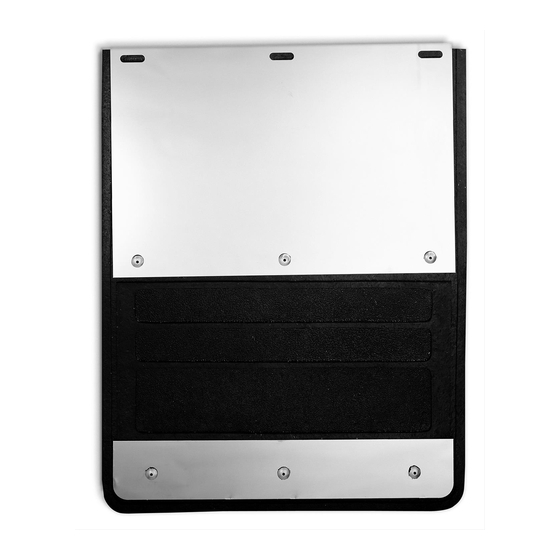

M UD FLAP INSTALLATION
1. Using 5/16" bolts, lock washers, and nuts attach the M-0672 or m-0673 angle bracket to
the m-0674 bracket (this will make a driver side and a passenger side application). Then
hold the brackets up to the pinchweld and against the wheel well and mark thru the hole
in the M-0672 or M-0673 and the hole in top of the M-0674. Remove the brackets, and
drill an 11/32" hole in each marked location.
2. Attach the M-0674 bracket to the mud flap (on the opposite side of the weights) using
5/16 bolts, flat washers, lock washers, and nuts (note: not all of the flat washers will be
used). Make sure that the side of the mud flap that has the weights riveted to it is facing
towards the rear of the vehicle.
3. Bolt the brackets thru the holes in the pinch weld and the wheel well lip with 5/16" bolts
and nuts.

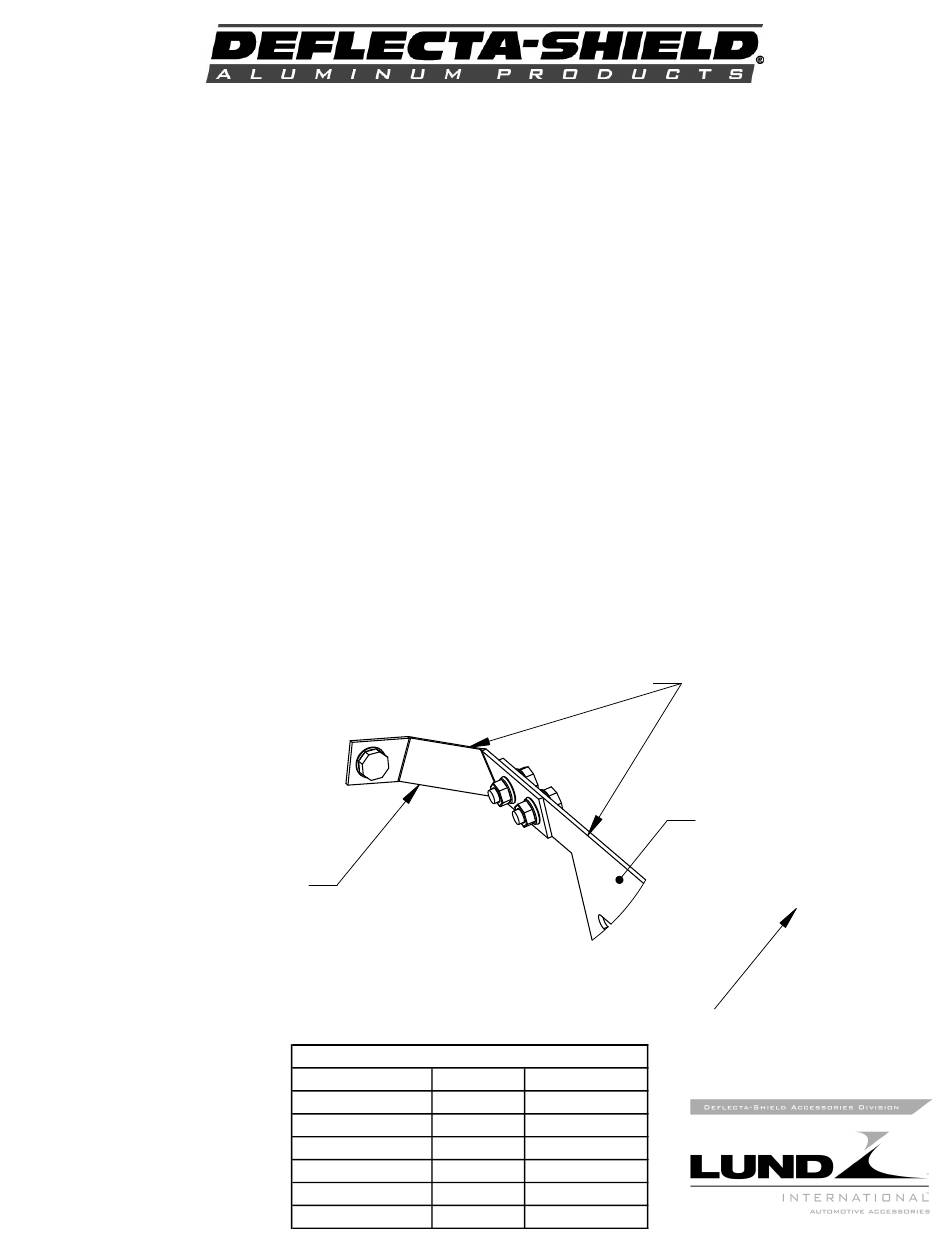

FASTEN THE M-0672 OR M-0673 & M-0674 BRACKETS TOGETHER
WITH 5/16 BOLTS, LOCK WASHERS, AND NUTS.
M-0672 BRACKET
© 2003 Lund International, Inc. All rights reserved.
Deflecta-Shield and the Deflecta-Shield logo are
Trademarks of Lund International, Inc.
Installation Instructions Dodge M ud Flap
2003 Dodge Ram Dually.
DRIVER SIDE SHOWN
EX & DIAMOND MUD FLAP BOM
PART #
M-0672
M-0673
M-0674
A-BOLT
MUD FLAP DIA
MUD FLAP S/S
REAR OF TRUCK
935D-03 EX-935D-03
1 1
1 1
2 2
1 1
2
2
M-0674 BRACKET
