Genesis
For proper installation and best possible fit, please read all instructions BEFORE you begin.
Contents

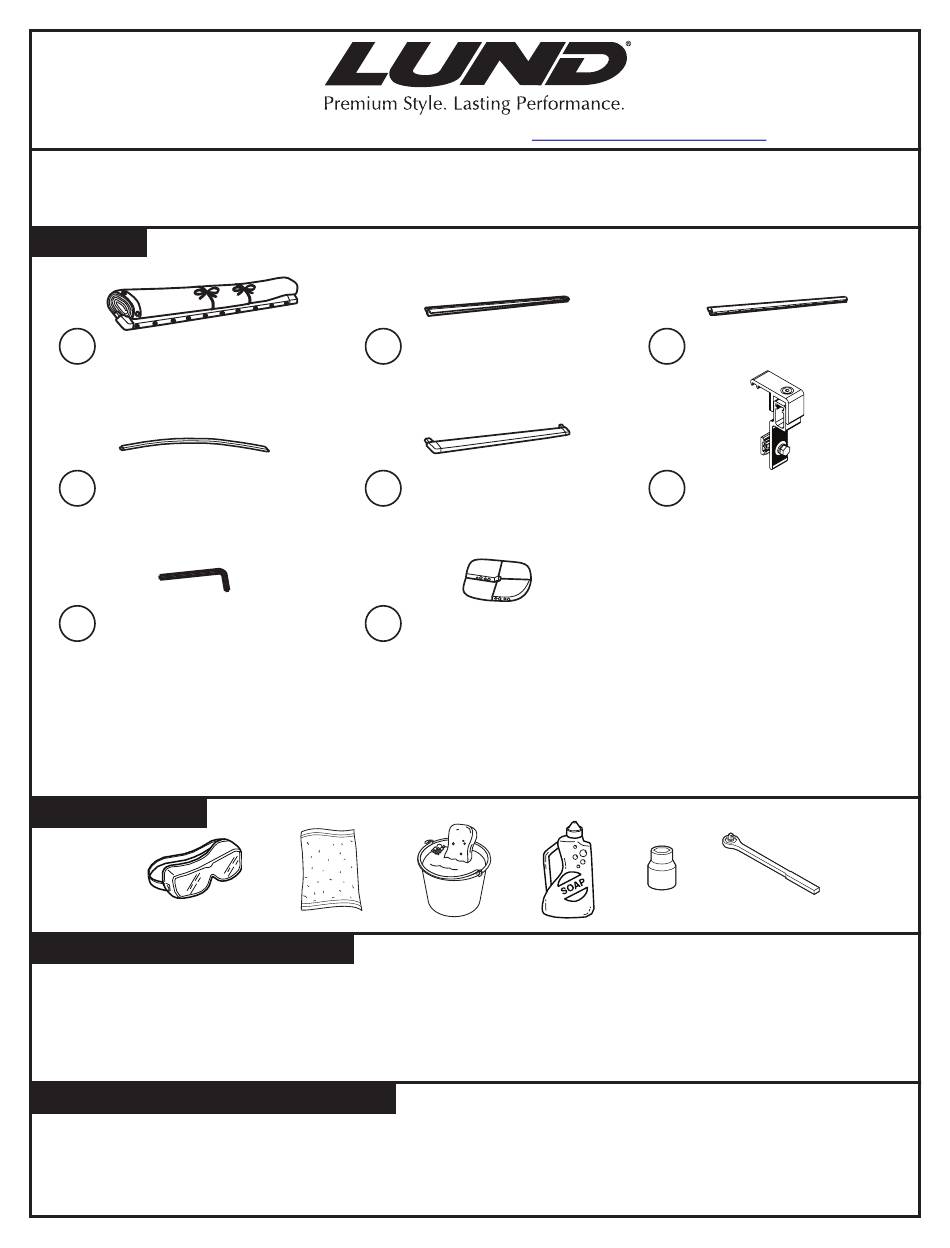

NOTE: Actual product may vary from illustration.
Front Roll With Cover Attached
A
D
Bows (3)
G
Allen Wrench

Tools Required

Important Safety Information

•Do not drive with the cover partially attached. This may cause damage to your truck and your cover.
• Do not use any part of this tonneau as a tie down.
• Periodically check clamps for shifting due to road vibrations.
• Pressure car washes are okay as long as you hold the wand no closer than two feet from the cover.
• Do not use cleaning solvents of any kind.
• So not use automatic "brush-style" car washes.

Preparation Before Installation

•Wash the upper rail surfaces of the truck bed.
• Be sure to completely dry the upper surfaces of your truck bed before installing your rails.
Installation Instructions
and Genesis Elite
™
B
Driver Side Rail
E
H
Corner Pads
Page 1 of 5
Snap Tonneau Cover
™
Rear Rail
7/16"
C
Passenger Side Rail
F
Clamp Assembly
