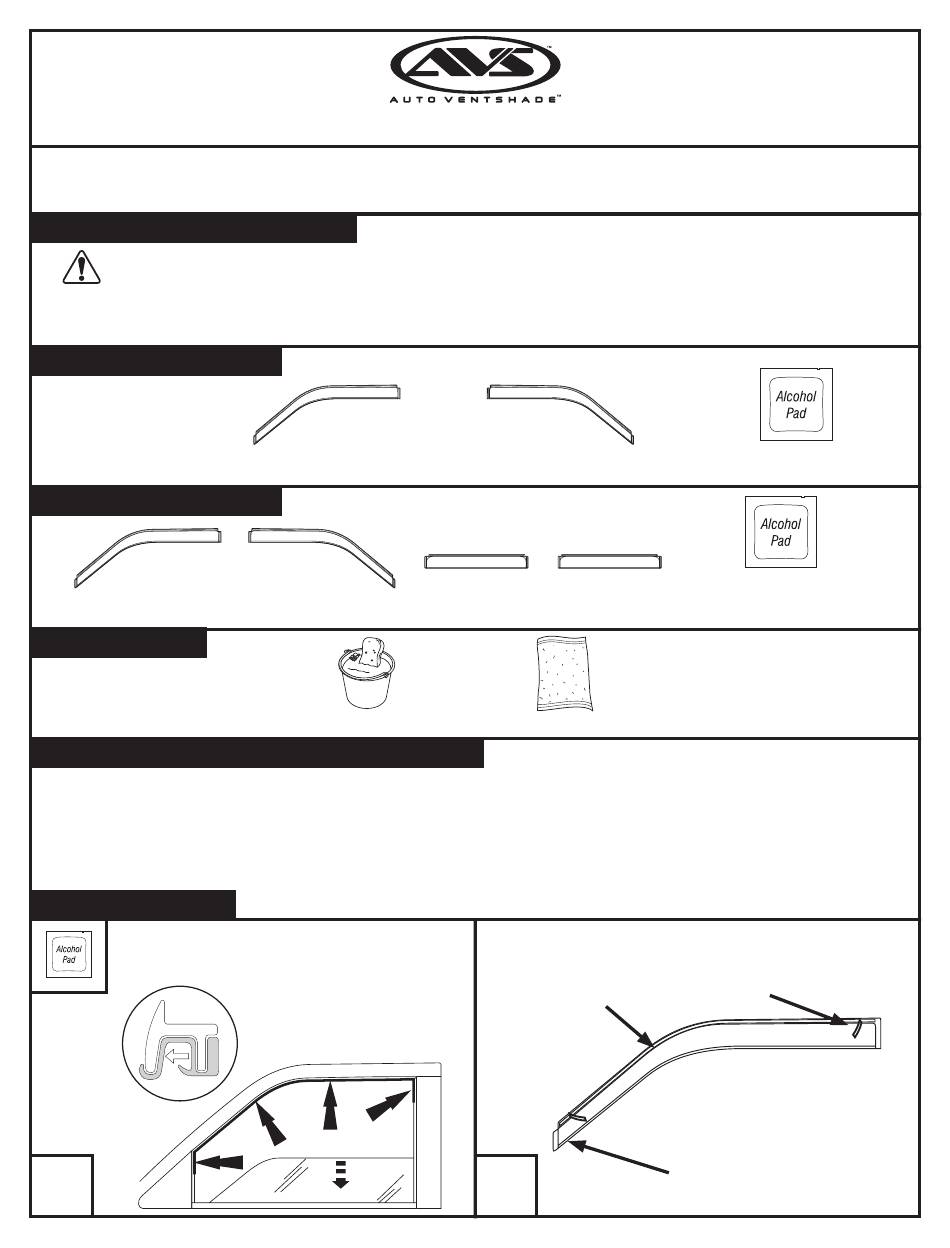

Lund AVS Ventvisor Installation Instructions Manual

For proper installation and best possible fit, please read all instructions BEFORE you begin.
For technical assistance or to obtain missing parts, please call Customer Relations at 1-800-241-7219.

Important Safety Information

• CAUTION - Before driving, ensure that the vent visor is properly secured to vehicle.
• Do not use automatic "brush-style" car washes.
• Do not use cleaning solvents of any kind.
• Periodically check all components for tightness.

Contents - 2 Piece Set

Contents - 4 Piece Set

Front Driver
Side Visor

Tools Required

Preparation Before Painting / Installation

• A trial fit is recommended to ensure proper positioning and fit.
• Check fit of parts before painting as we will not accept the return of modified or painted parts.
• Wash and dry your vehicle to remove any debris and/or dirt from the installation area.
• Some vehicles are equipped with window guide tabs. These tabs may need to be moved slightly to line up with the notch in the
Ventvisor. To do so, pull down the rubber window channel, adjust the window guide tab, and reposition the rubber window
channel.
Installation Steps
Clean the window channel
1
Installation Instructions
Ventvisor
NOTE: Actual product may vary from illustration.
Front Driver
Side Visor
Front Passenger
Side Visor
Car Wash Supplies
NOTE: Actual application may vary slightly from illustrations.
with an alcohol pad.
Deflector
®
Front Passenger
Side Visor
Rear Driver Rear Passenger
Side Visor Side Visor
Clean Towel
Peel back 2" of tape line from each end of top flange.
top flange
2
Page 1 of 2
I - Sheet Number VV45 Rev.B
Alcohol Pad x2
Alcohol Pad x4
free end
front
flange
