Genesis
and Genesis Elite
™
For proper installation and best possible fit, please read all instructions BEFORE you begin.
Important Safety Information
•
Serious personal injury and property damage can occur if vehicle is driven without both black buckles at the front of cover fastened. ans les
• Prior to vehicle operation, clamps must be secured such that the clamp lips tightly grip the inner bedwall structure.
• Only release buckles when fully installing cover.
• After a setting period (1 week) it may be necessary to readjust the clamp load after foam isolators take a set to maintain the uniform gap
between the Genesis™ Tri-Fold Tonneau cover and bed rails.
• Check the bracket clamp loads every 3 months or 5,000 miles.
• The Genesis™ Tri-Fold Tonneau cover must be closed or secured with straps while the vehicle is in motion.

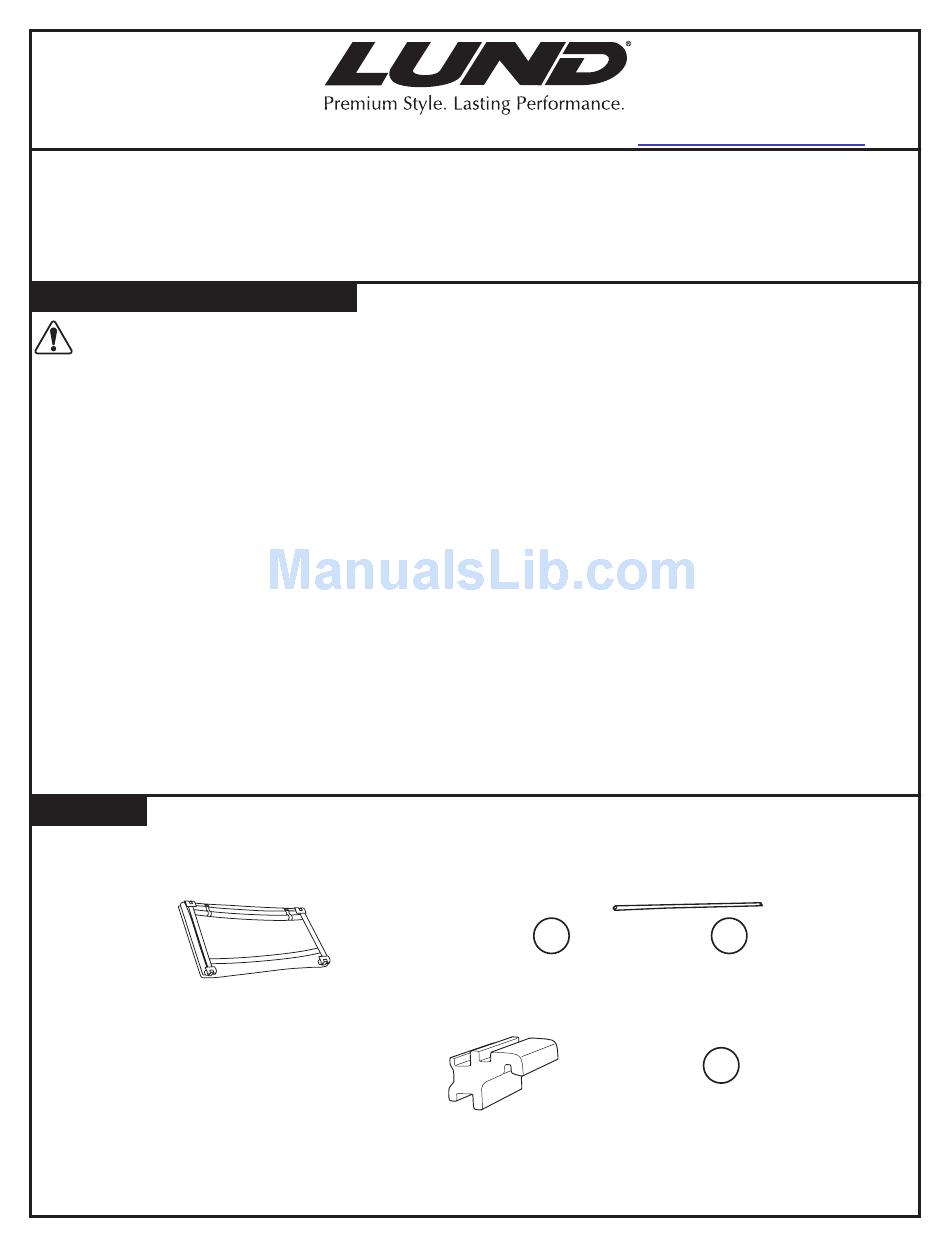

Contents
NOTE: Actual product may vary from illustration.
Installation Instructions
Tri-Fold
™
Tri-Fold Cover Assembly
Hardware maybe packed in tube dun age. Check dun age for hardware before discarding.
Page 1 of 7
Tonneau Cover
A
B
2 x Foam
Mousse
4 x Adapter
C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lund Genesis
Summary of Contents for Lund Genesis
-
Page 1: Installation Instructions
Genesis™ Tri-Fold Tonneau cover and bed rails. • Check the bracket clamp loads every 3 months or 5,000 miles. • The Genesis™ Tri-Fold Tonneau cover must be closed or secured with straps while the vehicle is in motion. Contents NOTE: Actual product may vary from illustration. - Page 2 Tools Required Clean Towel Car Wash Supplies Preparation Before Installation • Wash the upper rail surfaces of the truck bed. • Be sure to completely dry the washed surfaces before installing the tonneau cover. NOTE: Actual application may vary slightly from illustrations. Installation Steps 1A Make sure there is no dust or debris on the front rail.
- Page 3 NOTE: Actual application may vary slightly from illustrations. Installation Steps Line up to front of bed first. Center the cover assembly on the truck. cover Approx 1/4” at both corners Position the cover assembly so the gaps on all sides are equal. Remove plastic caps from the ends of the channels on both sides of the vehicle.
- Page 4 NOTE: Actual application may vary slightly from illustrations. Installation Steps Secure both front clamps. Rotate clamps down from its storage position. Adjust clamps to proper height. Tighten • Rotate clamps to locking position. Repeat for opposite side. Loosen • Note: Repeat steps for rear clamps. Slide clamps to edge of truck bed.
- Page 5 NOTE: Actual application may vary slightly from illustrations. Installation Steps Securing Both Rear Clamps NOTE: Clamp handle must rotate completely down to the stop to be locked. If something interfers with the handle (bed liner, bed extender or cargo, etc.) it must be modified or removed.
- Page 6 NOTE: Actual application may vary slightly from illustrations. Installation Steps After clamping Tonneau inspect clamps to make sure the pinch weld is seated properly in the notch on the clamp. Trim the bed cap at the clamp location if it extends down past the metal. Bed Cap Pinch Weld Clamp Notch...
- Page 7 You have purchased one of the many quality Lund branded products offered by Lund International, Inc. We take the utmost pride in our products and want you to enjoy years of satisfaction from your investment. We have made every effort to ensure that your product is top quality in terms of fit, durability, finish and ease of installation.
