Interlogix TruVision 12MP Installation Manual page 12

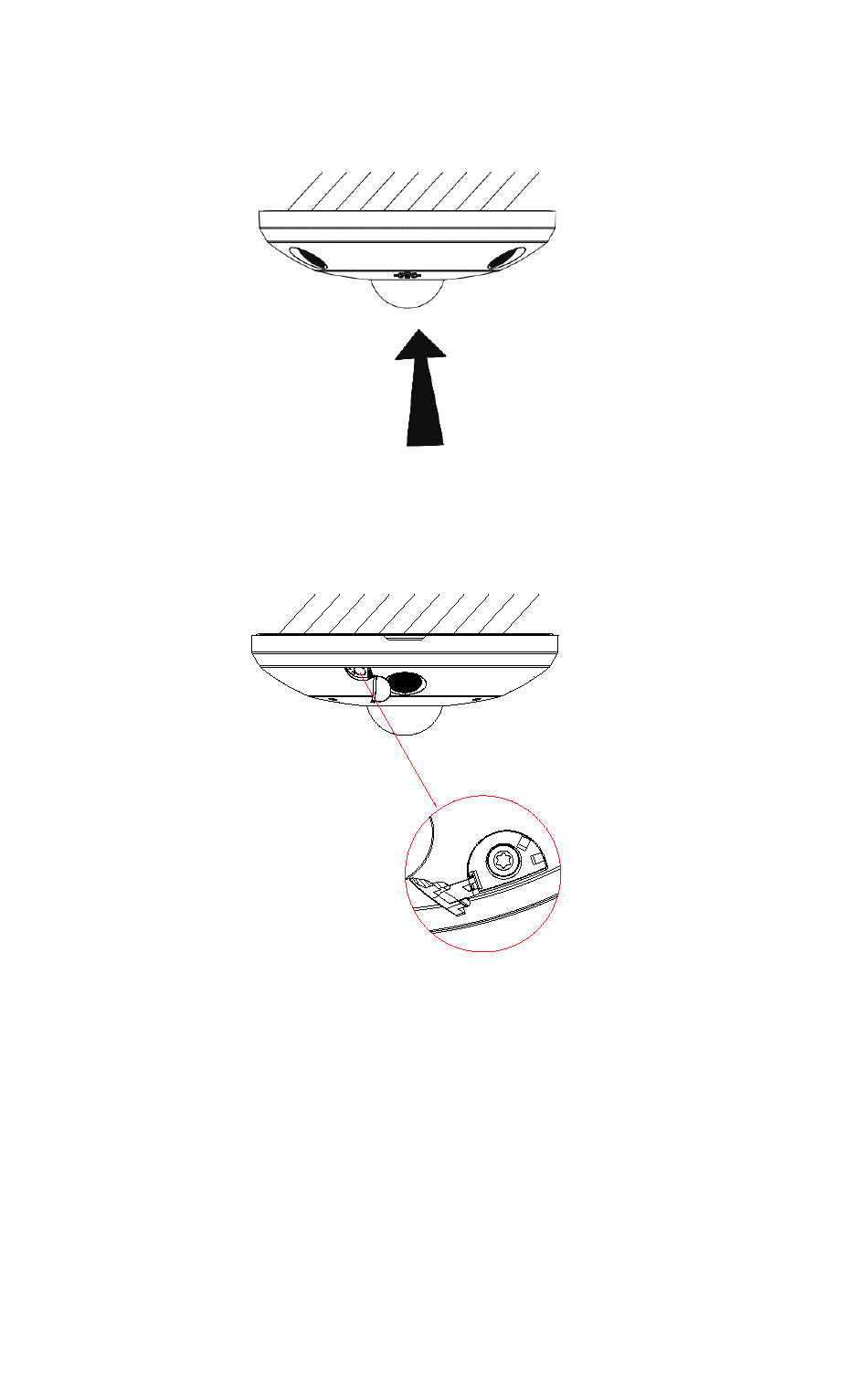

5. Attach the camera to the ceiling/wall.
Align the holes on the base of the camera with the three screws in the
ceiling/wall and rotate the camera to lock it into position.
When mounting the camera to a wall, ensure that the 'TOP' reference is
pointing up.
6. Tighten the three screws to securely fix the camera to the ceiling/wall.
7. When re-attaching the camera cover ring, ensure that the groove/opening
near the cover screw is not up against a wall or ceiling. You will need to
have access to that area when removing the camera cover.
8. Tighten the cover screw in the camera cover ring to securely reattach the
cover to the camera. Back boxes are not included with the 360° cameras.
They are available separately.
8 Installation Manual
