7260
Service Guide

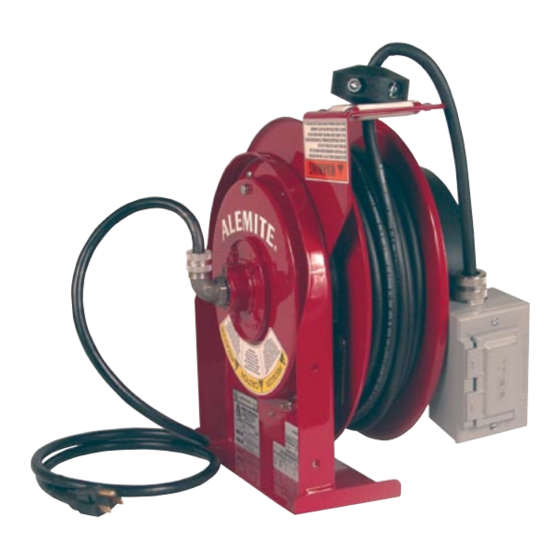

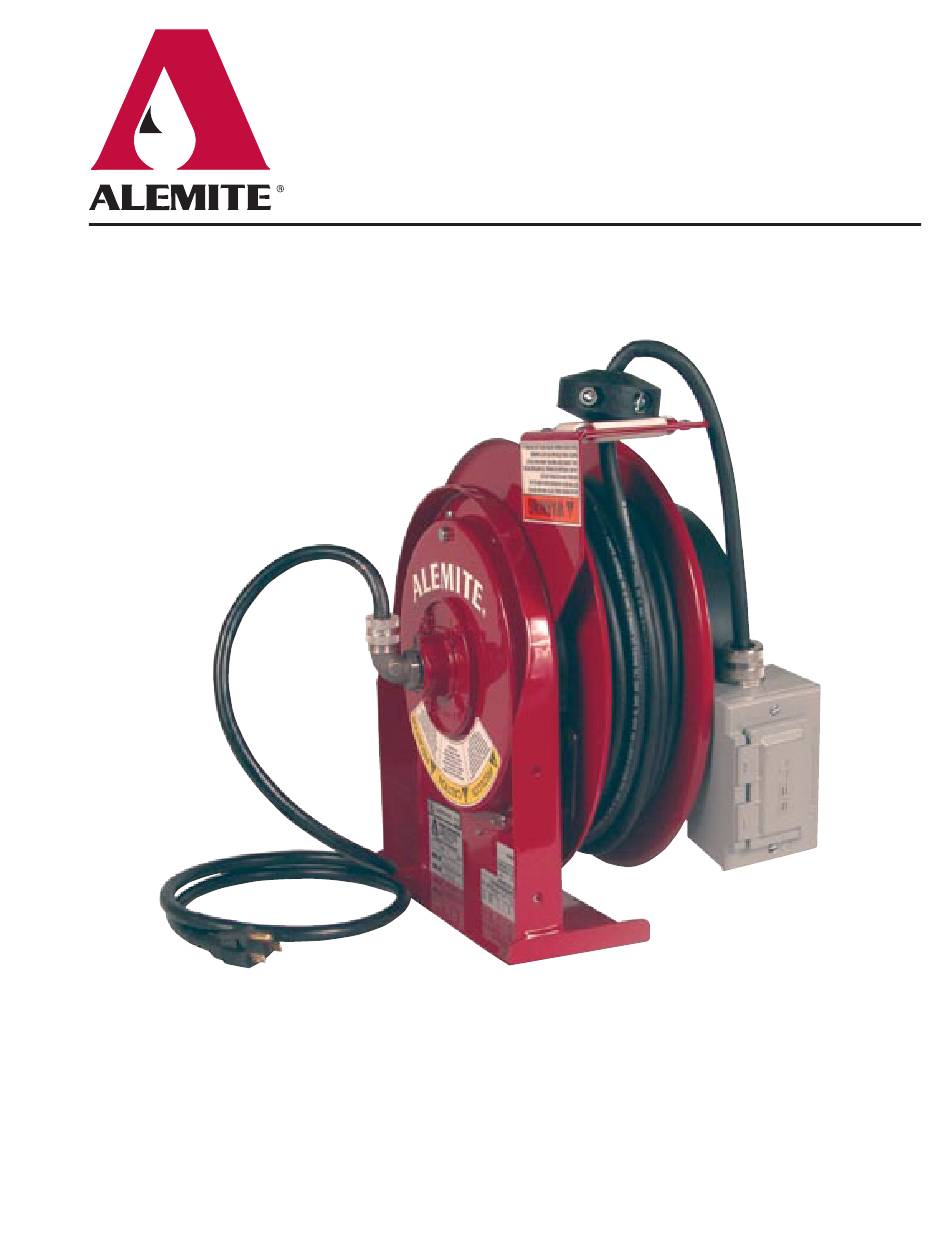

Cord Reel with Duplex Outlet
Alemite, LLC
167 Roweland Drive
Johnson City, TN 37601
SER 7260
670871
www.alemite.com
Revision (2-05)
Copyright 2005 by Alemite, LLC
This document contains confidential information that is the property of Alemite, LLC
and is not to be copied, used, or disclosed to others without express written permission.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7260 and is the answer not in the manual?

Questions and answers

Related Manuals for Alemite 7260

Summary of Contents for Alemite 7260

  • Page 1 Johnson City, TN 37601 SER 7260 670871 www.alemite.com Revision (2-05) Copyright 2005 by Alemite, LLC This document contains confidential information that is the property of Alemite, LLC and is not to be copied, used, or disclosed to others without express written permission.

  • Page 2: Electrical Information

    SER 7260 IMPORTANT READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING, OR SERVICING THIS EQUIPMENT ELECTRICAL INFORMATION PERSONNEL SAFETY Personal injury and/or equipment damage may VOLTAGE CORD APPARATUS result if proper safety precautions are not observed. AMPS Dual receptacle box • Ensure that only a qualified electrician installs/services this Frequency 60HZ single phase equipment.

  • Page 3: Installation Instructions

    (customer supplied) screws or or collector assembly. Refer any other discrepancies only to bolts (3). an authorized service person or directly to Alemite. ELECTRICAL WARNING: The following procedure directs the technician to WARNING: take voltage measurements.
  • Page 4 SER 7260 REPLACING THE INPUT ELECTRICAL See Fig. 3 Ensure that tool or fixture connected to the duplex outlet CORD is in good working order. If it is, proceed to step 2. See Fig. 4 Remove power from reel. WARNING: Remove access cover (1).

  • Page 5: Replacement Parts

    SER 7260 REPLACEMENT PARTS Fig. 4 Item No. Description Part No. Bumper Ass'y 393539-108 Cam, Latch 393539-109 Spring, Latch Plate 393539-110 Latch Bumper 393539-111 Latch Plate Ass'y 393539-112 Alemite, LLC Revision (2-05)
