Alemite 7343 Service Manual

1-800-548-1191-http://www.partdeal.com-info@partdeal.com

Description

High capacity hose reel models 7343 and 7344 are
designed to handle twin hose used for supply and return of
hydraulic fluid to power portable hydraulic powered tools.
These reels are suitable for outdoor applications.
Each model reel is spring-powered and self-retracting.
When the hose is extended, the reel can be latched on either
of two ratchet sections per revolution of the sheave. A pull
releases the latch from the ratchet and allows the hose to
retract onto the reel.
NOTE: The Hose Guide Arms can attach to the
Base Assembly in five (5) different positions.
Optional Mount
CAUTION
Install these reels at a height no greater than 16 feet
(4.9 m) from the floor to comply with the warranty.
These reels can also mount on a ceiling or to a wall.
Reel Package Hose Reel
Model (Bare)
8080-K 7343
8080-L 7344
Delivery hose length is designated by the dash number. Example: 340326-80 is 80 feet long.
This document contains confidential information that is the property of Alemite, LLC
670911
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
High Capacity Twin Hose Reel
Delivery Hose
Part #
3/8 " ID One-Wire Braid
340326-80
3/8 " NPTF (m) x 3/8 " NPTF (m)
1/2 " ID One-Wire Braid
340328-80
1/2 " NPTF (m) x 1/2 " NPTF (m)
Table 1
Alemite, LLC
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
©
Copyright
Connecting
Reel Model
Hose Ports
7343 3/8 " NPTF (f)
7344 1/2 " NPTF (f)

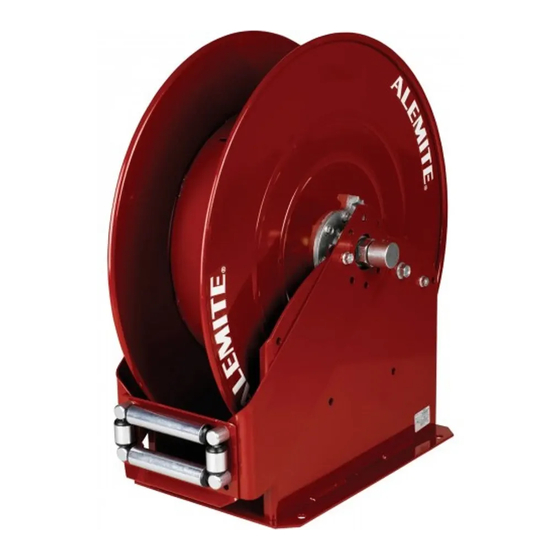

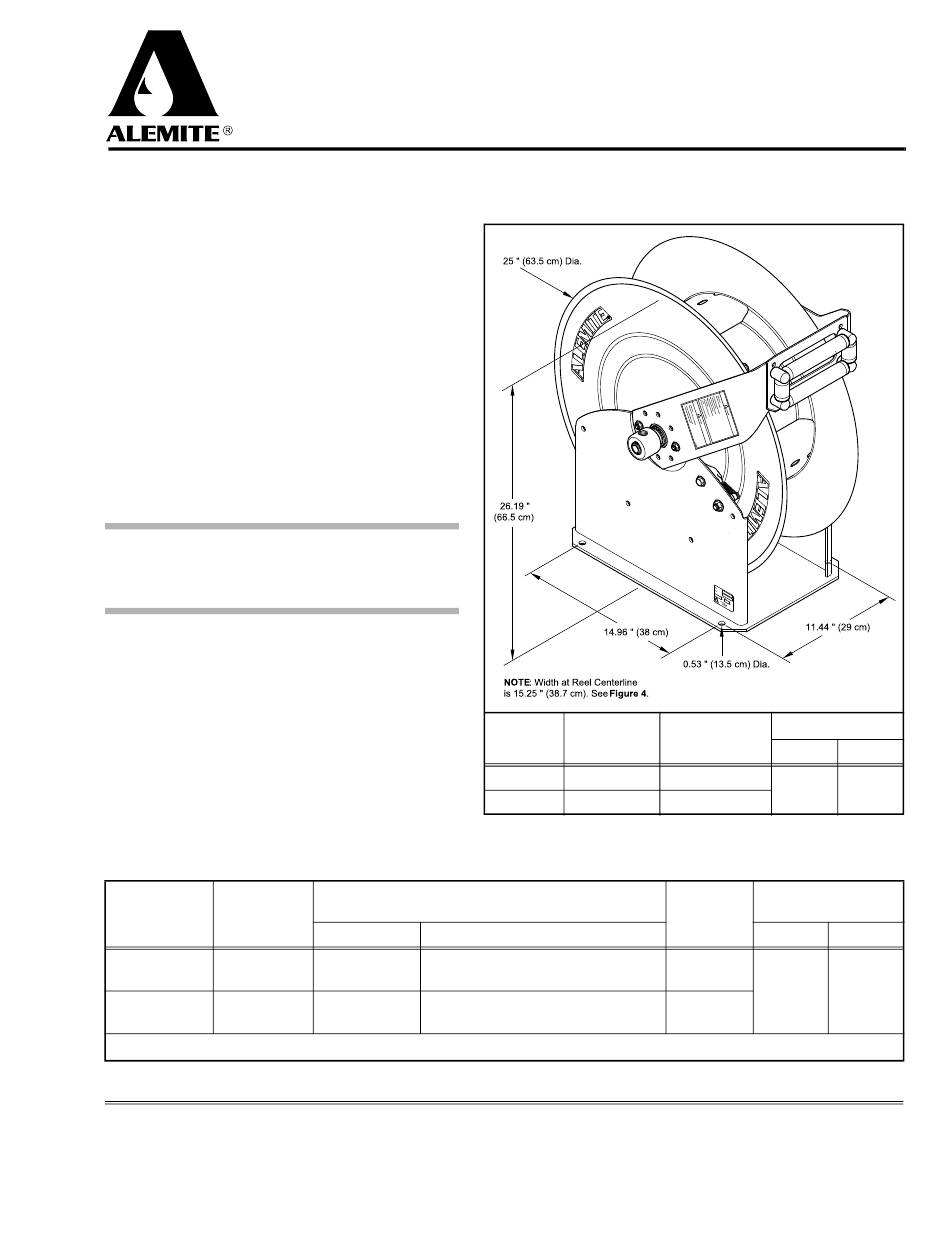

Figure 1 High-Capacity Twin Hose Reel
Model 7343 and 7344
Description

Reel Packages

2005 by Alemite, LLC
7343
7344
Reel Max. Pressure
Delivery
Hose Ports
psi
3/8 " NPSM (f)
3000
1/2 " NPSM (f)
Max. Pressure
w/ Hose
Hose Stop
psi
339389-3
2000
339389-4
SER 7343
Revision (11-08)
bar
207
bar
138
