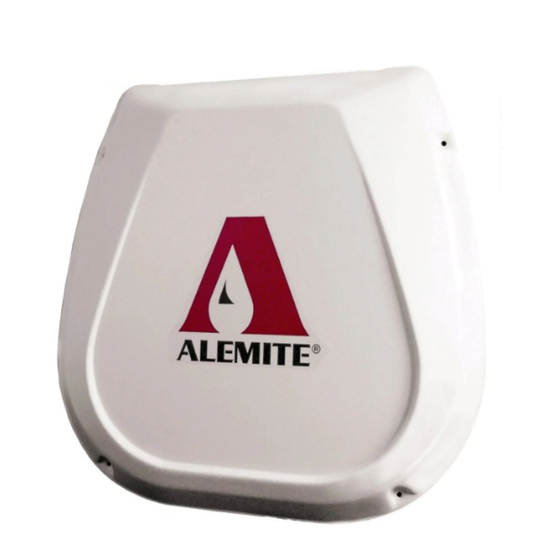

Shield for Heavy-Duty Hose Reel
Description
Caution
The top surface (mounting
plate) of the shield assembly
must be installed at a height
no greater than 20 feet (6.1 m)
from the floor to comply with
the hose reel warranty.
This shield is designed to
encase heavy-duty hose reel
models 7334-D, 7335-D, and
7336-D. Refer to Service Guide
SER 7334-D for details on the
reels.
The shield mounts as a single
unit or in banks of as many as
required. Banked shields butt
against one another to utilize the
minimum amount of space. See
Figure 4.
Models 7331 and 339371
Refer to Table 1 for details on
the models required for proper
Model
Description
7331
Shield Kit
339371
End Panel Kit
339368
* Use with single reel installations only
This document contains confidential information that is the property of Alemite Corporation
670768
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
9-11/16 "
(24.6 cm)
(22.9 cm)
0.53 "
(13.5 mm)
Dia. Typ.
End Panel

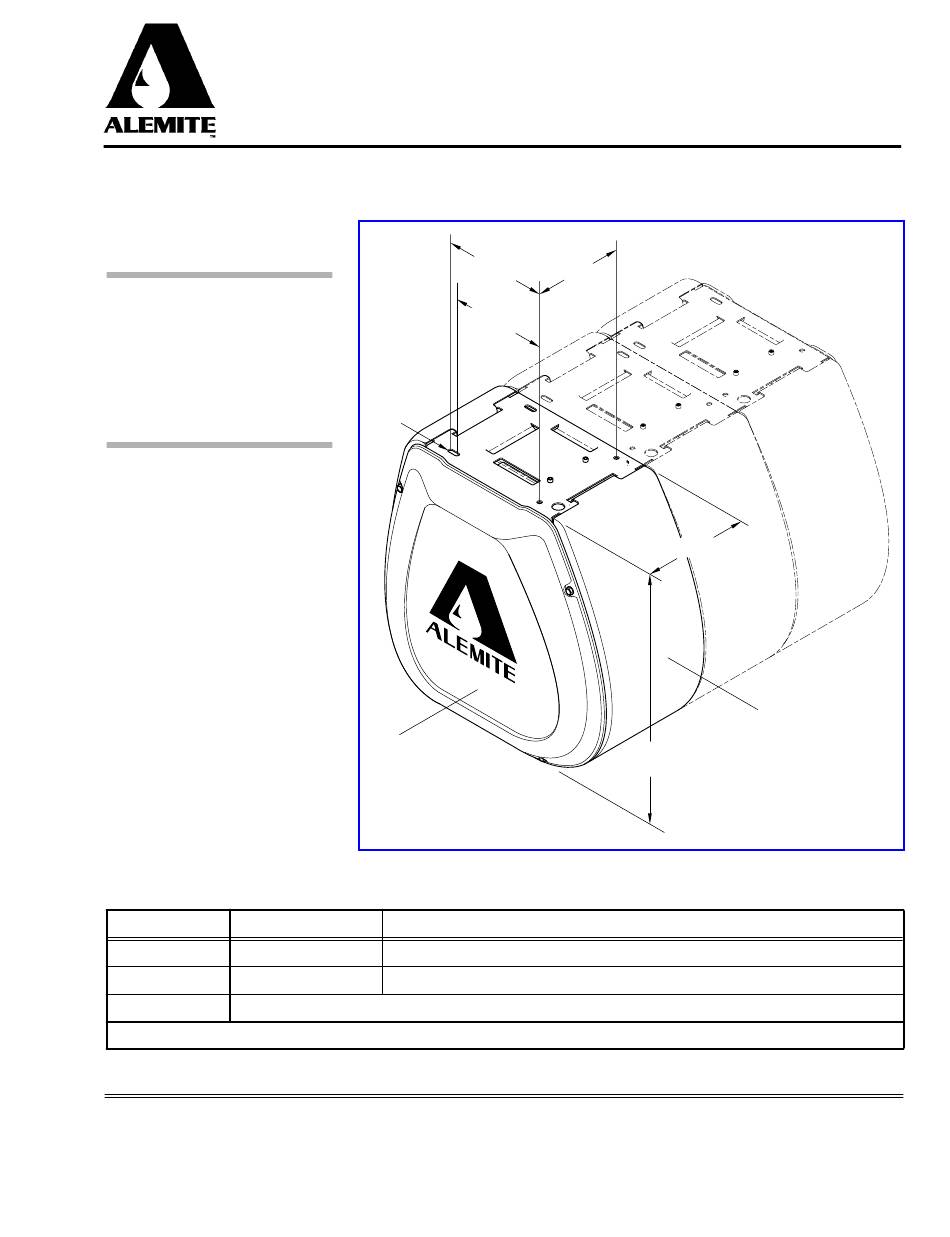

Figure 1 Shield Kit Model 7331 and End Panel Kit Model 339371
Two (2) side panels, mounting plate, and alignment bracket for multiple reel installation
Two (2) end panels
Table 1 Model Description and Components
Alemite Corporation
PO Box 473515, Charlotte, North Carolina 28247-3515
www.alemite.com
©
Copyright
1998 by Alemite Corporation
8-3/8 "
(21.3 cm)
9 "
23-1/2 "
(59.7 cm)
Major Components Included
Strut *
7331
339371
10 "
(25.4 cm)
Side Panel
SER 7331
Revision (9-98)
