OPERATING INSTRUCTIONS

J E H
K
I
Q
O
B
A
AA
R
C
V
INTRODUCTION
Your new CIR-O is ready for operation when you receive it. A few minutes
spent reading the following will help you become familiar with the operation
and capabilities of your machine.

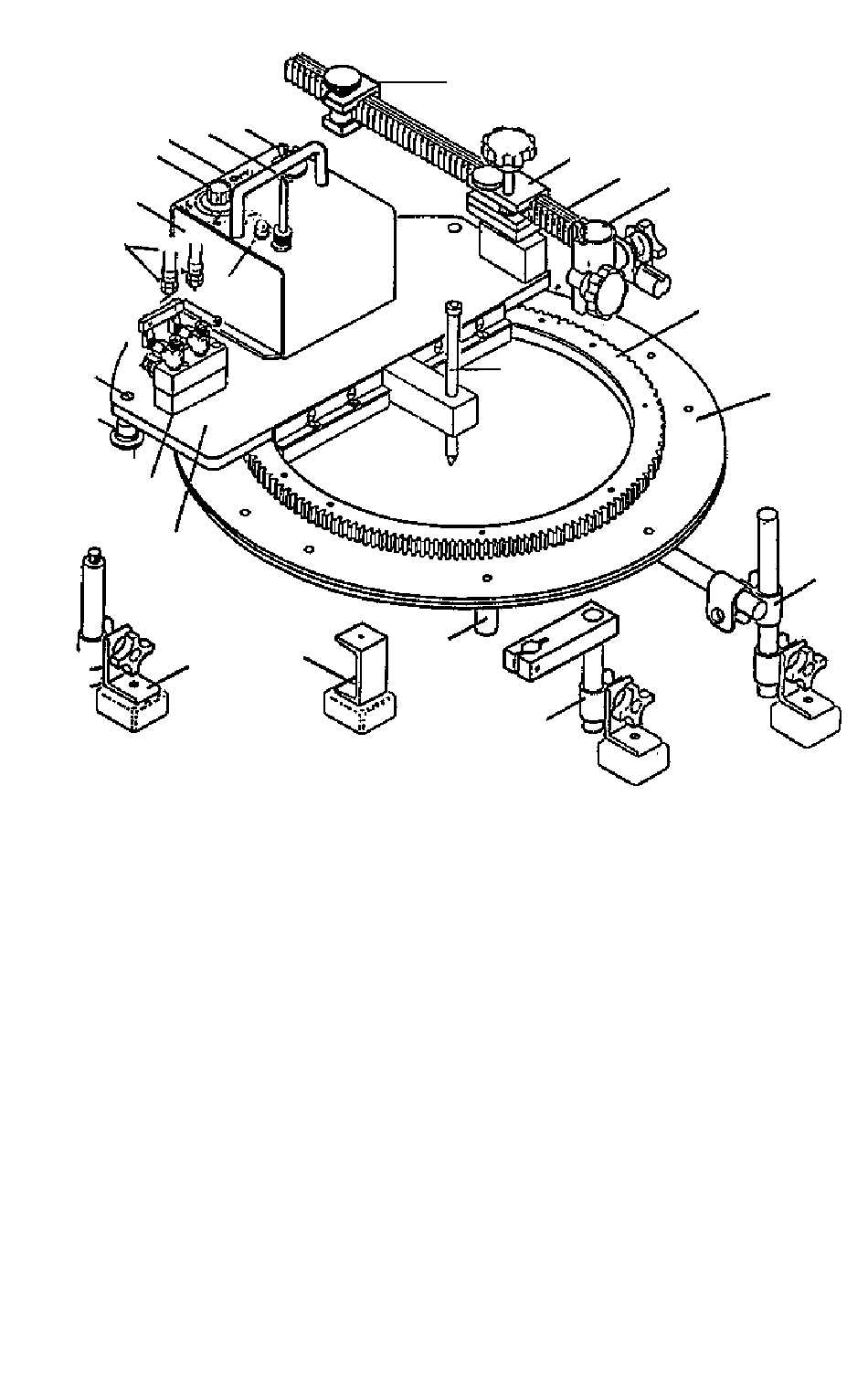

The CIR-O Carriage (C) should operate freely on the Ring Track (D). The
carriage has three adjustable Wheel Logs (A). By loosening the Flat Socket
Head Screws (B) these logs may be rotated for adjustment. To check Wheel
(AA) adjustment, hold one wheel and move the carriage. When properly
adjusted the wheel should barely slip.
The Cam Clutch (E) engages the drive pinion to the Ring Gear (F) by chang-
ing the position of the Drive Module (I). The Thumb Nut (H) locks the Cam
Clutch (E) in position.
Turning the Potentiometer Knob (K) regulates speed. The Switch (J)
controls forward-off-reverse. Throw the switch in the direction you want the
carriage to travel.
The CIR-O is furnished with four symmetrically-located Legs (L). A variety
of Magnetic Feet and legs (S), (T), (U), and (V) are available to increase
the versatility of the CIR-O machine.
X
L
T
Y
W P
Z
U
F
D
S
5
