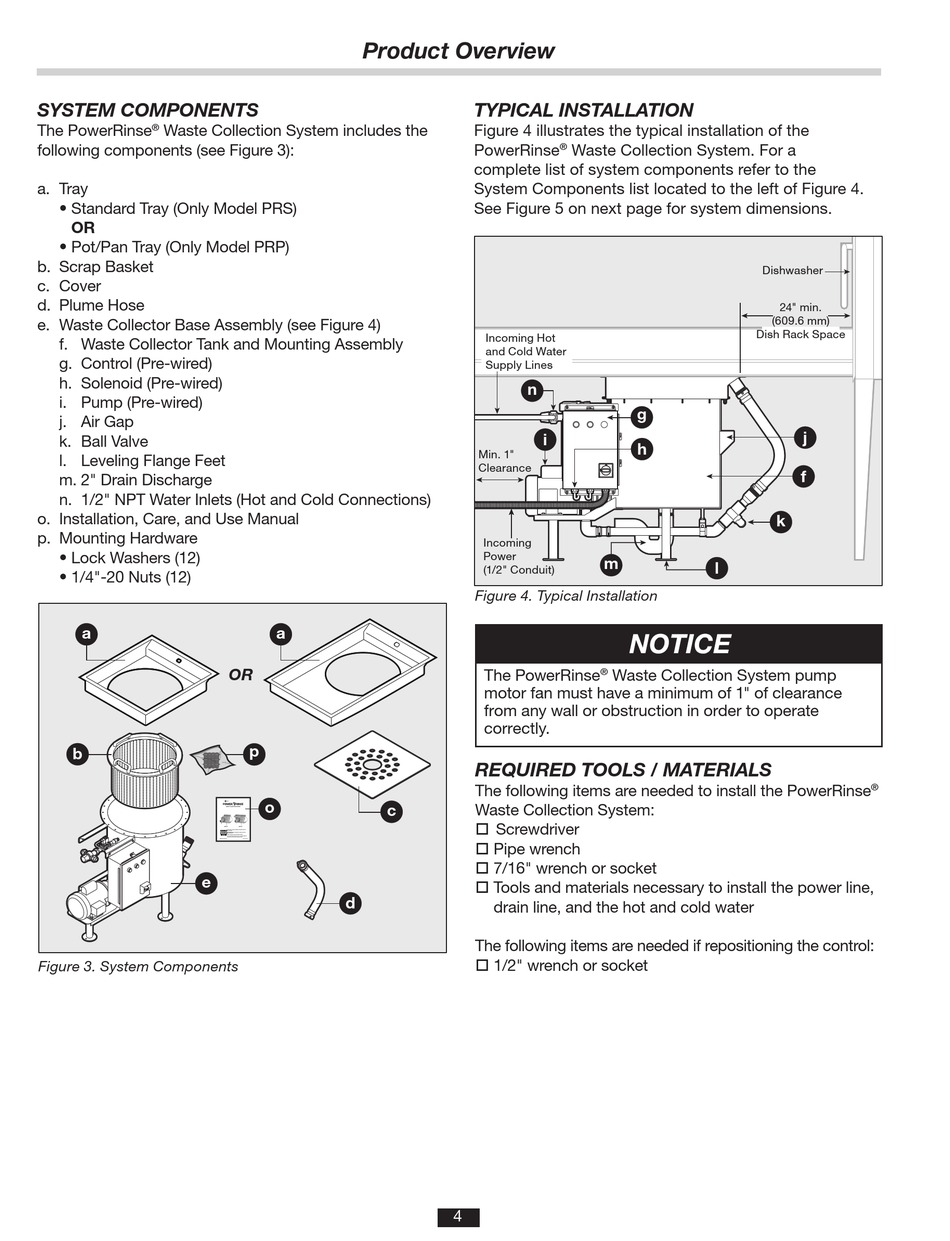

SYSTEM COMPONENTS

The PowerRinse Waste Collection System includes the
®
following components (see Figure 3):
a. Tray
• Standard Tray (Only Model PRS)
OR
• Pot/Pan Tray (Only Model PRP)
b. Scrap Basket
c. Cover
d. Plume Hose
e. Waste Collector Base Assembly (see Figure 4)
f. Waste Collector Tank and Mounting Assembly
g. Control (Pre-wired)
h. Solenoid (Pre-wired)
i. Pump (Pre-wired)
j. Air Gap
k. Ball Valve
l. Leveling Flange Feet
m. 2" Drain Discharge
n. 1/2" NPT Water Inlets (Hot and Cold Connections)
o. Installation, Care, and Use Manual
p. Mounting Hardware
• Lock Washers (12)
• 1/4"-20 Nuts (12)
a
b
e
Figure 3. System Components
Product Overview
a
OR
p
o
c
Model PRS Model PRP
WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
NOTICE is used to address practices not related to physical injury.
Please be certain that the person who installs or uses this appliance carefully reads
and understands the Safety Instructions contained in this manual.
www.insinkerator.com/foodservice Part No. 15392 Rev A
d

TYPICAL INSTALLATION

Figure 4 illustrates the typical installation of the
PowerRinse Waste Collection System. For a
®
complete list of system components refer to the
System Components list located to the left of Figure 4.
See Figure 5 on next page for system dimensions.
Incoming Hot
and Cold Water
Supply Lines
n
i
Min. 1"
Clearance
Incoming
Power
m
(1/2" Conduit)
Figure 4. Typical Installation
The PowerRinse Waste Collection System pump
®
motor fan must have a minimum of 1" of clearance
from any wall or obstruction in order to operate
correctly.
REQUIRED TOOLS / MATERIALS
The following items are needed to install the PowerRinse
Waste Collection System:
o Screwdriver
o Pipe wrench
o 7/16" wrench or socket
o Tools and materials necessary to install the power line,
drain line, and the hot and cold water
The following items are needed if repositioning the control:
o 1/2" wrench or socket
4
Dishwasher
24" min.
(609.6 mm)
Dish Rack Space
g
j
h
f
k
l
®
