Operating Instructions and Parts Manual
High Pressure Abrasive Blast Cabinet
Assembly

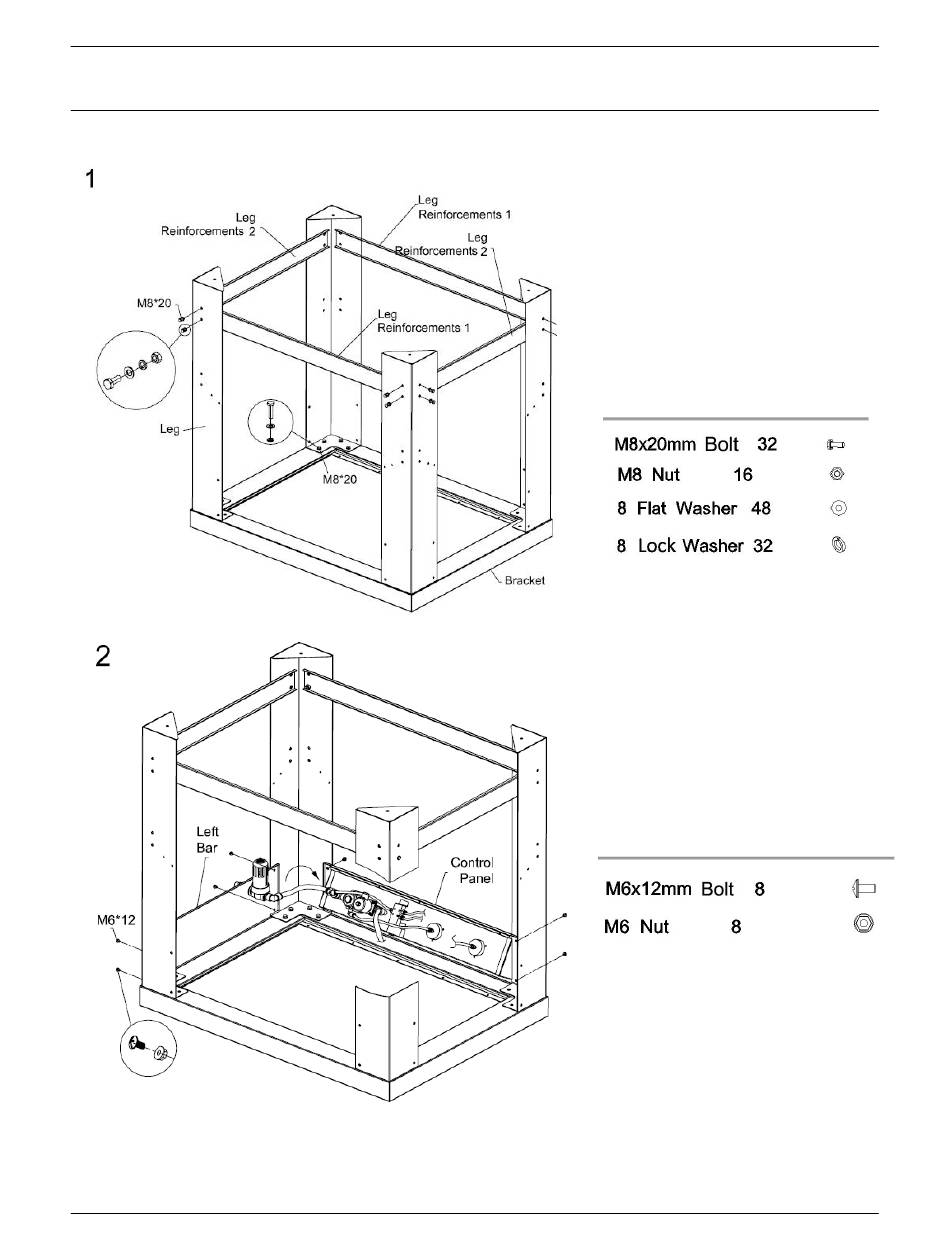

1.
Fasten the four legs and the
Leg Reinforcements to the Bracket
by using M8*20mm bolt, Flat
Washer, lock Washer and M8 Nut,
tighten.
Hardware
2. Assemble the Left Bar, Right Bar,
Control Panel and Rear Bar by using
M6*12mm bolt, Flat Washer, and M6
Nut in sequence.
Hardware
6
42000
Advertisement
Need help?
Do you have a question about the 42000 and is the answer not in the manual?
Questions and answers
Hello ,having trouble with Allsource model 42000 cabinet blaster, **** presure remains low and doesnot build pressure is at 110 psi. Not sur which part needs replacement
For low pressure issues in the Allsource model 42000 cabinet blaster, check and possibly replace the nozzle if it is clogged or worn out. Additionally, ensure there is sufficient media in the pressure tank.
This answer is automatically generated
