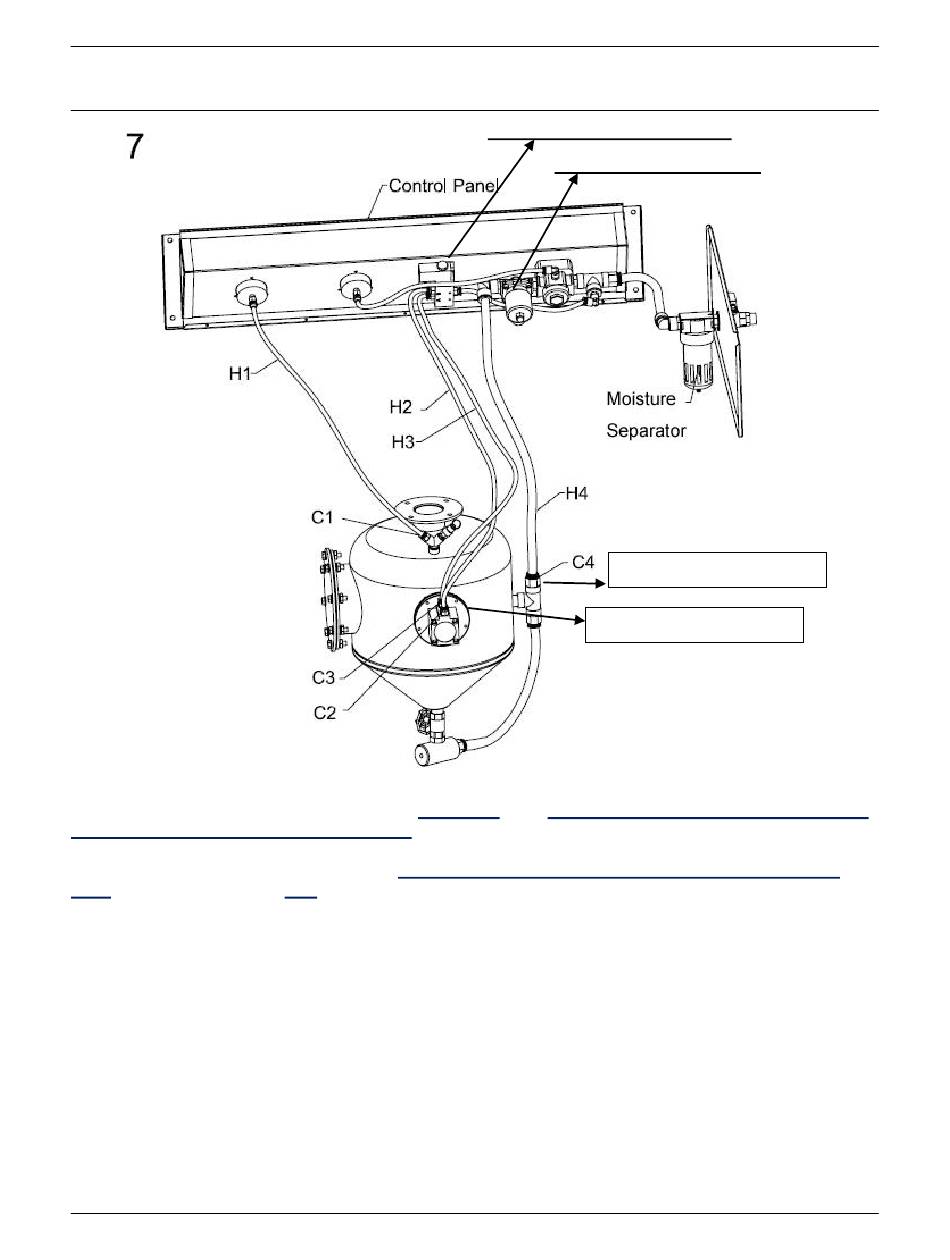

1:There are two 8mm hoses (color orange and blue) from Electromagnetic valve 2 (#3) on control
panel, connect with the two adaptors for #9 Cylinder Block for tank , as shown in diagram H2-
C2;H3-C3
2: There is a orange hose (16mm) from Electromagnetic valve 1(#2) on control panel, connect
with #21 G1/2"-16 Straight for tank ,like the picture H4-C4 Note: The hose must be securely
inserted in to the fitting. To release hose push plastic ring inward. Failure to connect hoses to the
proper fittings will cause the blaster to not to operate properly.
Electromagnetic valve 2 (#3)
Electromagnetic valve 1
#21 G1/2"-16 Straight
Coupling
#9 Cylinder Block for tank
