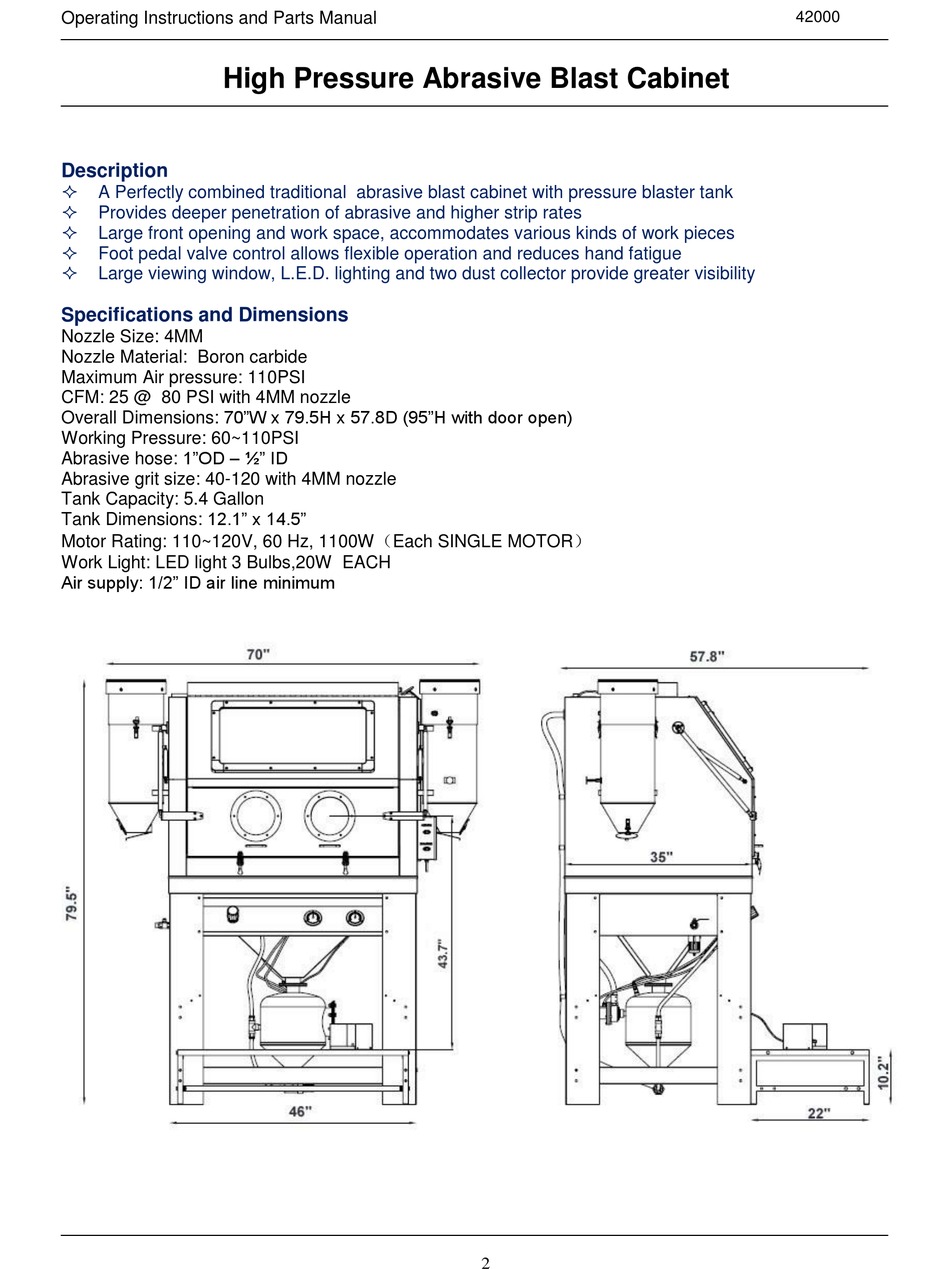

Operating Instructions and Parts Manual
High Pressure Abrasive Blast Cabinet
Description
A Perfectly combined traditional abrasive blast cabinet with pressure blaster tank
Provides deeper penetration of abrasive and higher strip rates
Large front opening and work space, accommodates various kinds of work pieces
Foot pedal valve control allows flexible operation and reduces hand fatigue
Large viewing window, L.E.D. lighting and two dust collector provide greater visibility
Specifications and Dimensions
Nozzle Size: 4MM
Nozzle Material: Boron carbide
Maximum Air pressure: 110PSI
CFM: 25 @ 80 PSI with 4MM nozzle
Overall Dimensions: 70"W x 79.5H x 57.8D (95"H with door open)
Working Pressure: 60~110PSI
Abrasive hose: 1"OD – ½" ID
Abrasive grit size: 40-120 with 4MM nozzle
Tank Capacity: 5.4 Gallon
Tank Dimensions: 12.1" x 14.5"
Motor Rating: 110~120V, 60 Hz, 1100W（Each SINGLE MOTOR）
Work Light: LED light 3 Bulbs,20W EACH
Air supply: 1/2" ID air line minimum
2
42000
Advertisement
Need help?
Do you have a question about the 42000 and is the answer not in the manual?
Questions and answers
Hello ,having trouble with Allsource model 42000 cabinet blaster, **** presure remains low and doesnot build pressure is at 110 psi. Not sur which part needs replacement
For low pressure issues in the Allsource model 42000 cabinet blaster, check and possibly replace the nozzle if it is clogged or worn out. Additionally, ensure there is sufficient media in the pressure tank.
This answer is automatically generated
