Allsource 42000 Operating Instructions And Parts Manual

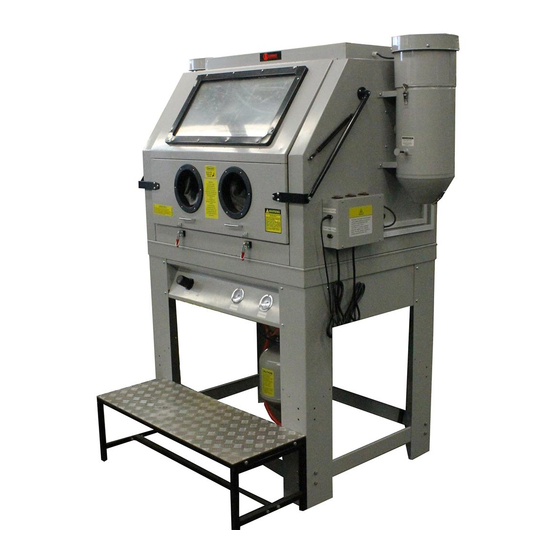

High pressure abrasive blast cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual
Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect yourself
and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in
personal injury and/or damage to product or property. Please retain instructions for future reference.
High Pressure Abrasive Blast Cabinet
42000
S & H Industries Inc.
5200 Richmond Road
Cleveland OH 44146
1-800-253-9726
216-831-0550
Service@shindustries.com
www.shindustries.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 42000 and is the answer not in the manual?

Questions and answers

Bryan A Bell
January 31, 2025

Hello ,having trouble with Allsource model 42000 cabinet blaster, **** presure remains low and doesnot build pressure is at 110 psi. Not sur which part needs replacement

0
1 comments:
Mr. Anderson
February 10, 2025

For low pressure issues in the Allsource model 42000 cabinet blaster, check and possibly replace the nozzle if it is clogged or worn out. Additionally, ensure there is sufficient media in the pressure tank.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Summary of Contents for Allsource 42000

  • Page 1 Failure to comply with instructions could result in personal injury and/or damage to product or property. Please retain instructions for future reference. High Pressure Abrasive Blast Cabinet 42000 S & H Industries Inc. 5200 Richmond Road...
  • Page 2 42000 Operating Instructions and Parts Manual High Pressure Abrasive Blast Cabinet Description  A Perfectly combined traditional abrasive blast cabinet with pressure blaster tank  Provides deeper penetration of abrasive and higher strip rates  Large front opening and work space, accommodates various kinds of work pieces ...
  • Page 3 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet General Safety Information Do not point the abrasive blaster nozzle at anyone or objects. Any blast cabinet will produce a powerful flow of abrasive particles. To avoid personal injury and...
  • Page 4 42000 Operating Instructions and Parts Manual High Pressure Abrasive Blast Cabinet Chemicals, including Maintenance lead are contained in this product or NOTE: Disconnect power and air before the its power cord. Wash hands after maintenance. handling Cleaning: Please clean the machine or parts with a Dust can be created when you sweep, soft cloth.
  • Page 5 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet...
  • Page 6 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Assembly Fasten the four legs and the Leg Reinforcements to the Bracket by using M8*20mm bolt, Flat Washer, lock Washer and M8 Nut, tighten. Hardware 2. Assemble the Left Bar, Right Bar,...
  • Page 7 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet 3: Assemble discharge hose with #9 Cylinder Block for tank #9 Cylinder Block for tank 3. Place the funnel as shown in the diagram. Attach the tank assembly (including bolt, flat washer, lock...
  • Page 8 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet #9 Cylinder Block for tank Assemble #52 abrasive hose with tee joint Stand the lower assembly upright as shown, locate #9 Cylinder Block for tank in the rear, and then assemble #52 abrasive hose with tee joint and install the discharge...

  • Page 9: Rubber Seal

    Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Rubber seal Place #6 grid cover, insert discharge hose into the protective cover.
  • Page 10 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Electromagnetic valve 2 (#3) Electromagnetic valve 1 #21 G1/2″-16 Straight Coupling #9 Cylinder Block for tank 1:There are two 8mm hoses (color orange and blue) from Electromagnetic valve 2 (#3) on control panel, connect with the two adaptors for #9 Cylinder Block for tank , as shown in diagram H2- C2;H3-C3...
  • Page 11 42000 Operating Instructions and Parts Manual High Pressure Abrasive Blast Cabinet Foam Assemble right bar and rear bar and legs with M6X12MM bolt and M6 nut, and then install the PSA foam to the funnel a shown.
  • Page 12 42000 Operating Instructions and Parts Manual High Pressure Abrasive Blast Cabinet Place the grid on the funnel, with assistance place cabinet assembly on the lower assembly, while lining up the holes, open the door, assemble cabinet assembly and funnel with...
  • Page 13 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet #4 Abrasive tee joint 1: Open the door, Insert abrasive hose through rubber retainer , adjust the abrasive hose ,avoid sharp bends to help prevent excessive wearing of the...
  • Page 14 42000 Operating Instructions and Parts Manual High Pressure Abrasive Blast Cabinet Install nozzle retainer to end of the abrasive hose, fasten the abrasive hose with 4.2 * 10MM self tapping screws...
  • Page 15 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Attach the two dust collectors #20 on both sides of the cabinet assembly #1 with M6*12 bolts (8PCS). Note: The longer electrical cord on left side dust collector allowing cord to reach power...
  • Page 16 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Stand & Cabinet Base 13-1:Assemble stand with M8*45mm bolt ,M8 Nut ,8 flat washer, 8 lock washer, see above diagram 13-2: Install stand to front legs of cabinet as...
  • Page 17 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet 14. Plug the Electromagnetic Valve Plug and Foot Pedal Plug into the Power Supply. (Note the label on the power supply)
  • Page 18 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Sealing Head Replacement Graphics：...

  • Page 19: Wiring Diagram

    Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Wiring Diagram...

  • Page 20: Troubleshooting

    Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Troubleshooting Symptom(s) Possible Causes(s) Possible Solution(s) Release foot pedal to let media  No more media in the pressure flow back from funnel to tank. pressure tank. Close air source, remove the nozzle, and remove contaminant.
  • Page 21 42000 Operating Instructions and Parts Manual High Pressure Abrasive Blast Cabinet Parts...
  • Page 22 42000 Operating Instructions and Parts Manual High Pressure Abrasive Blast Cabinet...
  • Page 23 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Part No. Item No. Description Qty. Cabinet Assembly Grid Bolt M6x16 (matched with φ6*16 washers) 41825 PSA foam Bracket Cover grid Funnel Rear Bar Left Bar Bolt M6*12 42011...
  • Page 24 42000 Operating Instructions and Parts Manual High Pressure Abrasive Blast Cabinet 41840 Handle 41514 Glove Clamp Seal Ring of Glove Front Door Front Bar Glove 24” 4150015 or 40238 4150020 Glove Seat 4150042 Nozzle Nut 4204804 – 4mm 4204805 – 5mm 4204806 –...
  • Page 25 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Exploded View of Left Bar Part No. Item No. Description Qty. Left Bar 40213 Straight Coupling 40198 Ball Valve Washer 4200905 Moisture separator 4200906 Right-angle Quick Coupling 42075 Air Hose...
  • Page 26 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Exploded View of Control Panel Item No. Part No. Description Qty. 11-1 4201101 Pressure Regulating Valve 11-2 4201102 Electromagnetic Valve 1 11-3 4201103 Electromagnetic Valve 2 11-4 4201104 Pressure Gauge...
  • Page 27 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Exploded View of Tank Assembly...
  • Page 28 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Part No. Item No. Description Qty. 4201201 12-1 Tank 4201202 12-2 Gate Valve 40213 G1/2″Straight Coupling 12-3 4201204 12-4 Abrasive Tee Joint 42075 12-5 16mm Air Hose 4201206 G1/2″ Tee Joint 12-6 G1/4″Y Joint...
  • Page 29 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Exploded View of Cylinder Block Part No. Item No. Description Qty. 12-9-1 Air Cylinder (SDA 40*20) 12-9-2 G1/8"-8 Connector 12-9-3 M6*25 Screw *1 + Washer *2 12-9-4 Cover Plate...
  • Page 30 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Exploded View of Dust Collector Part No. Item No. Description Qty. 20-1 Top of D.C. 40287 20-2 Vacuum Motor 20-3 Bolt 20-4 Cover motor 20-5 Power Cord 4150029 20-6...
  • Page 31 Operating Instructions and Parts Manual 42000 High Pressure Abrasive Blast Cabinet Exploded View of Switch Box Part No. Item No. Description Qty. 37-1 Switch Box Body 41860 37-2 Switch 37-3 Two Holes Socket 37-4 Buckle 41866 37-5 Fuse Case 4203706...
