Summary of Contents for Brighter Smart Spot 330 Pro

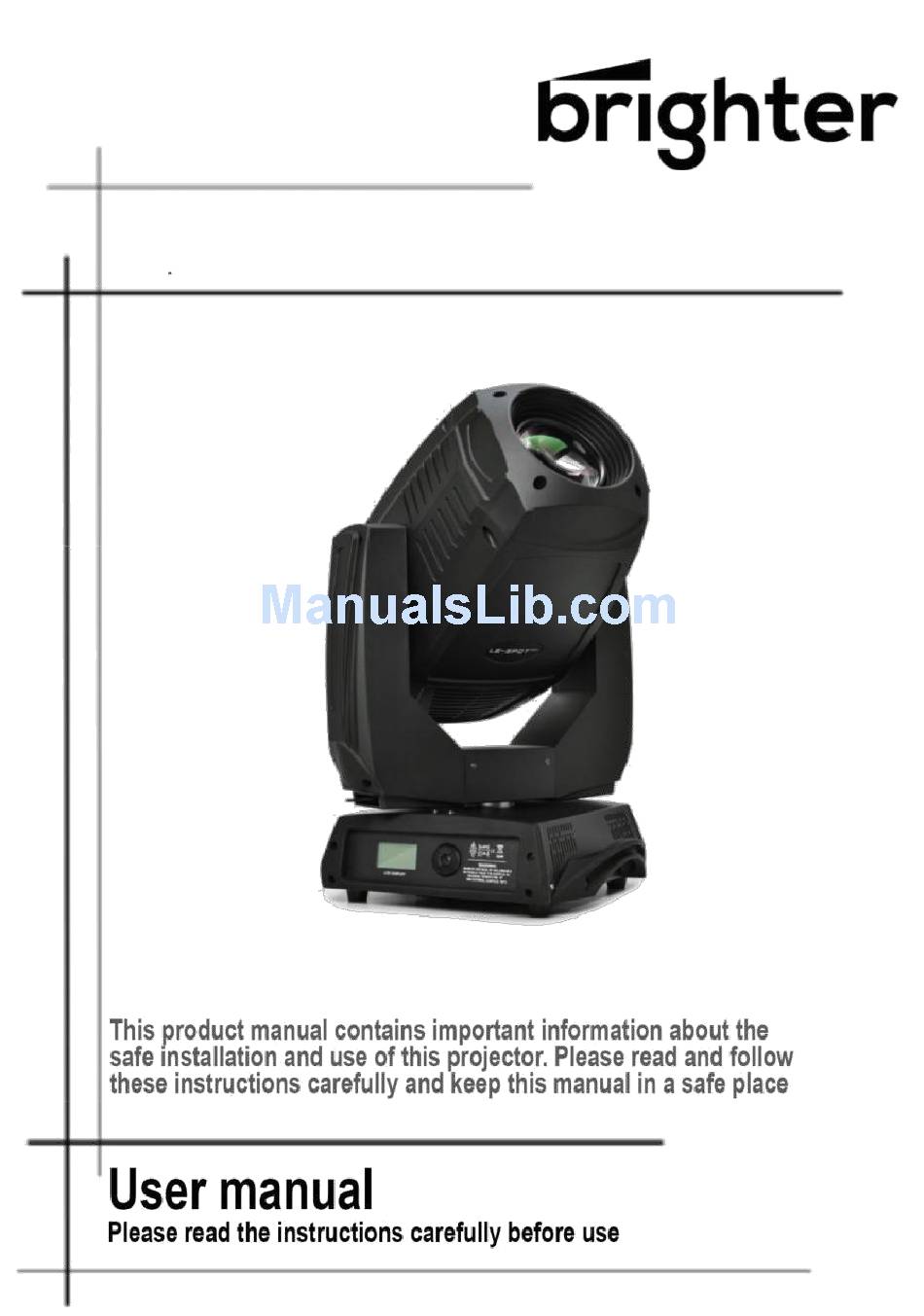

- Page 1 Smart Spot 330 Pro...
-
Page 2: Table Of Contents
Contents Introduction…………………………..……………………………………………………………..…………..….03 General Guidelines…………….…………………………….………………………………………….…03 Safety Instructions………………………………………………………………...………………………04 Cleaning and Maintenance………………………………………………….…...……………………05 Technical Parameters…………………..……………………………………………...……………………….06 Color Wheel………………………………………………………………..………………………………..07 Gobo Wheel………………………………………………………………..…………………………….……07 Fixture Size…………………..…………………………………...…………………………………………..08 9. Function of Buttons………………………………………………………………..…………….………. 08 10. Menu Setting………………………………………………………………..……………………….……..10 11. DMX Channels………………………………………………………………..…………………………..….12... -
Page 3: Introduction
Thank you for your patronage! We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install, operate, and maintain the lighting safety correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly. -
Page 4: Safety Instructions
to extreme heat, moisture or dust. Please don’t project the beam onto combustible substances. The minimum distance between light-output from the projector and the illuminated surface must be more than 0.5 meter. If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners turned in the quick lock holes correctly. -
Page 5: Cleaning And Maintenance
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power cord by the plug. Never pull out the plug by tugging the power cord. During initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective, it should decrease gradually. -
Page 6: Technical Parameters
In order to make the lights in good condition and extend the life time, we suggest a regular cleaning to the lights. 1) Clean the inside and outside lens each week to avoid the weakness of the lights due to accumulation of dust. 2) Clean the fan each week. -
Page 7: Color Wheel
Control Control mode: DMX512 Channel: Basic 22 / Standard 27 / Extend 30 MENU LCD display DMX: 3 pin + 5 pin in & out IP rate: IP20 Fixture Size: 432*321*675mm Weight: 23kg COLOR WHEEL: FIXED GOBO WHEEL: ROTATING GOBO WHEEL:... -
Page 8: Fixture Size
Fixture Size FUNCTIONS OF BUTTONS... - Page 9 Reversal of the display To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode.This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
-
Page 10: Menu Setting
MANU SETTING... -
Page 12: Dmx Channels
DMX CHANNELS CH BASIC STAND EXTEND CYAN COLOUR WHEEL CYAN COLOUR WHEEL CYAN COLOUR WHEEL MAGENTA COLOUR WHEEL MAGENTA COLOUR WHEEL MAGENTA COLOUR WHEEL YELLOW COLOUR WHEEL YELLOW COLOUR WHEEL YELLOW COLOUR WHEEL COLOUR1 COLOUR 1 COLOUR 1 COLOUR 2 COLOUR 2 COLOUR 2... - Page 13 COLOUR3 COLOUR 3 COLOUR 3 STOPPER/STROBE STOPPER/STROBE STOPPER/STROBE DIMMER DIMMER DIMMER IRIS DIMMER FINE DIMMER FINE STATIC GOBO CHANGE IRIS IRIS ROTATING GOBO SELECT STATIC GOBO CHANGE IRIS FINE GOBO ROTATION ROTATING GOBO SELECT STATIC GOBO CHANGE PRISMS INSERTION GOBO ROTATION ROTATING GOBO SELECT PRISMS ROTATION FINE GOBO ROTATION...
- Page 14 COLOUR 2 Empty Empty + Color5 Color5 Color5 + Color6 Color6 Color6 + Color7 Color7 Color7 + Color8 Color8 COLOUR 3 Empty Empty + Color9 Color9 Color9 + Color10 Color10 Color10 + Color11 Color11 Color11 + Color12 Color12 STOPPER/STROBE Light OFF Strobe at linearly variable frequency from low(1flash/sec) to 4 - 103 high(12flashes/sec)
- Page 15 IRIS FINE 0 - 255 STATIC GOBO CHANGE 0 - 9 Empty position 10 - 18 Gobo 1 19 - 25 Gobo 2 26 - 33 Gobo 3 34 - 41 Gobo 4 42 - 49 Gobo 5 50 - 57 Gobo 6 58 - 65 Gobo 7...
- Page 16 Continuous gobo wheel clockwise rotation at linearly variable 151 - 190 speed from fast to slow 191 - 215 Stop Continuous gobo wheel counter clockwise rotation at linearly 216 - 255 variable speed from slow to fast GOBO ROTATION 0 - 127 Gobo indexing 0°~360°...
- Page 17 TILT 0 - 255 Tilt Movement by 250° FINE TILT 0 - 255 Fine control of Tilt movement COLOUR MACRO FUNCTION RESET/LAMP CONTROL 0 - 20 No use 21 - 30 Pan / Tilt reset 31 - 40 CMY reset 41 - 50 Gobo reset(Static Gobo / Rot Gobo / Gobo Rot reset) 51 - 60...
