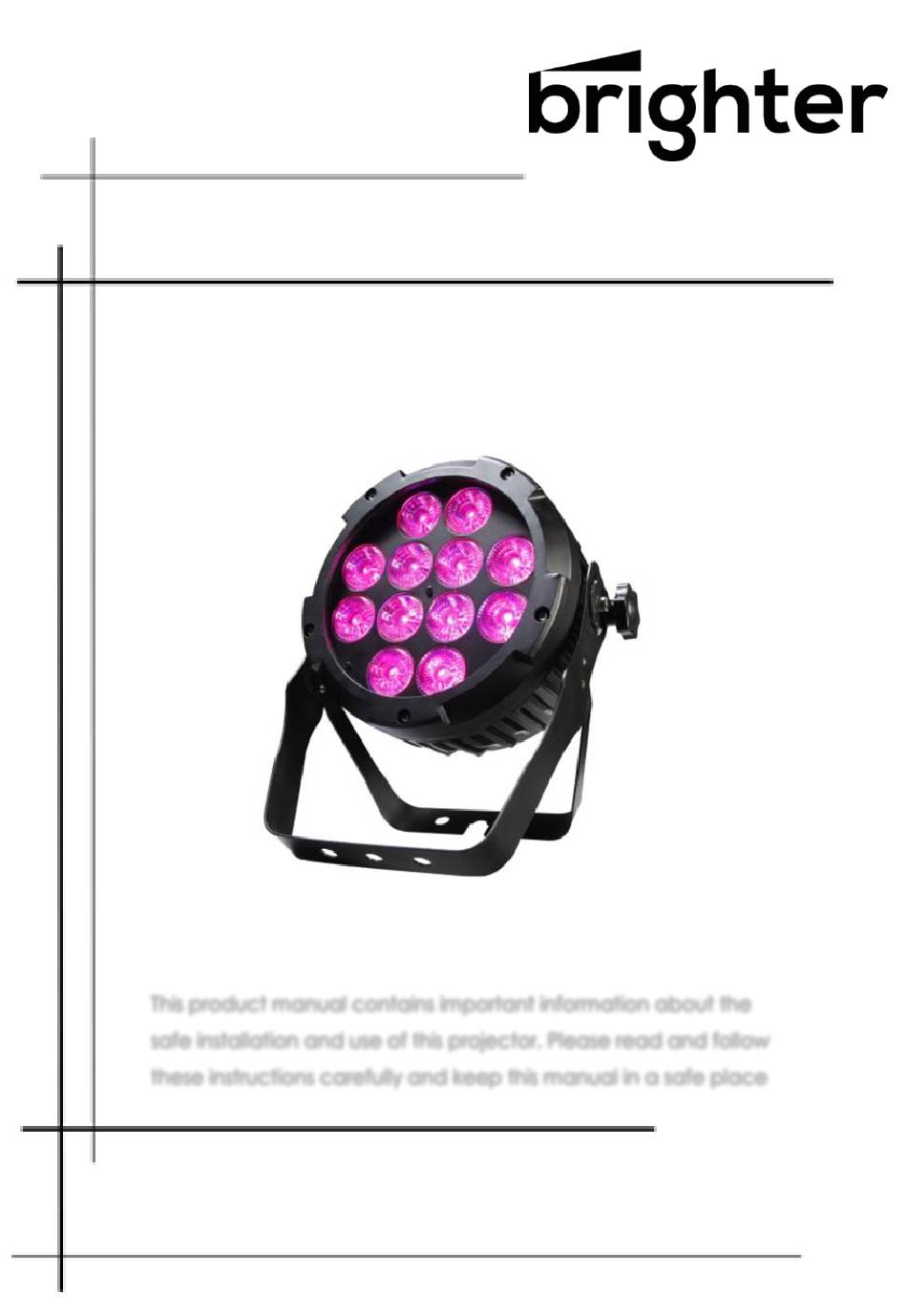

Led Par 12IP
WATERPROOF PAR
This product manual contains important information about the
safe installation and use of this projector. Please read and follow
these instructions carefully and keep this manual in a safe place
User manual
Please read the instructions carefully before use
Advertisement
Related Manuals for Brighter Led Par 12IP
Summary of Contents for Brighter Led Par 12IP
-
Page 1: User Manual
Led Par 12IP WATERPROOF PAR This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place User manual Please read the instructions carefully before use... - Page 2 1．DIAGRAM I 2．HOW TO OPERATE THE DEVICE Press A button, there are 12 different functions. The first two letters stands for functions (refer to Diagram II) The last two letters stands for DMX address, speed, or mode. You can modify it with B or C button. Press D button to confirm. 3．DIAGRAM II d001 5 channels, address adjustment by B &...
- Page 3 DMX 7 CHANNELS 0~255 Red Color 0~255 Green Color 0~255 Blue Color 0~255 White Color 0~255 Amber Color 0~255 UV Color SET DIMMER MODE ON MENU 10-50 DIMMER MODE 1: LINEAR DIMMING 51-101 DIMMER MODE 2: WITHOUT FADING DIMMING 102-152 DIMMER MODE 3: LOW GRAY SOFT DIMMING 153-203 DIMMER MODE 4: LINEAR DIMMING SLOW...
- Page 4 SET DIMMER MODE ON MENU 10-50 DIMMER MODE 1: LINEAR DIMMING 51-101 DIMMER MODE 2: WITHOUT FADING DIMMING 102-152 DIMMER MODE 3: LOW GRAY SOFT DIMMING 153-203 DIMMER MODE 4: LINEAR DIMMING SLOW DIMMER MODE 5: LOW GRAY SOFT DIMMING 204-255 SLOW 0~255...
