Brighter ATOM S+ User Manual

Hide thumbs

Advertisement

Table of Contents

This product manual contains important information about the safe installation and use of this projector. Please read
and follow these instructions carefully and keep this manual in a safe place for future reference.
USER MANUAL

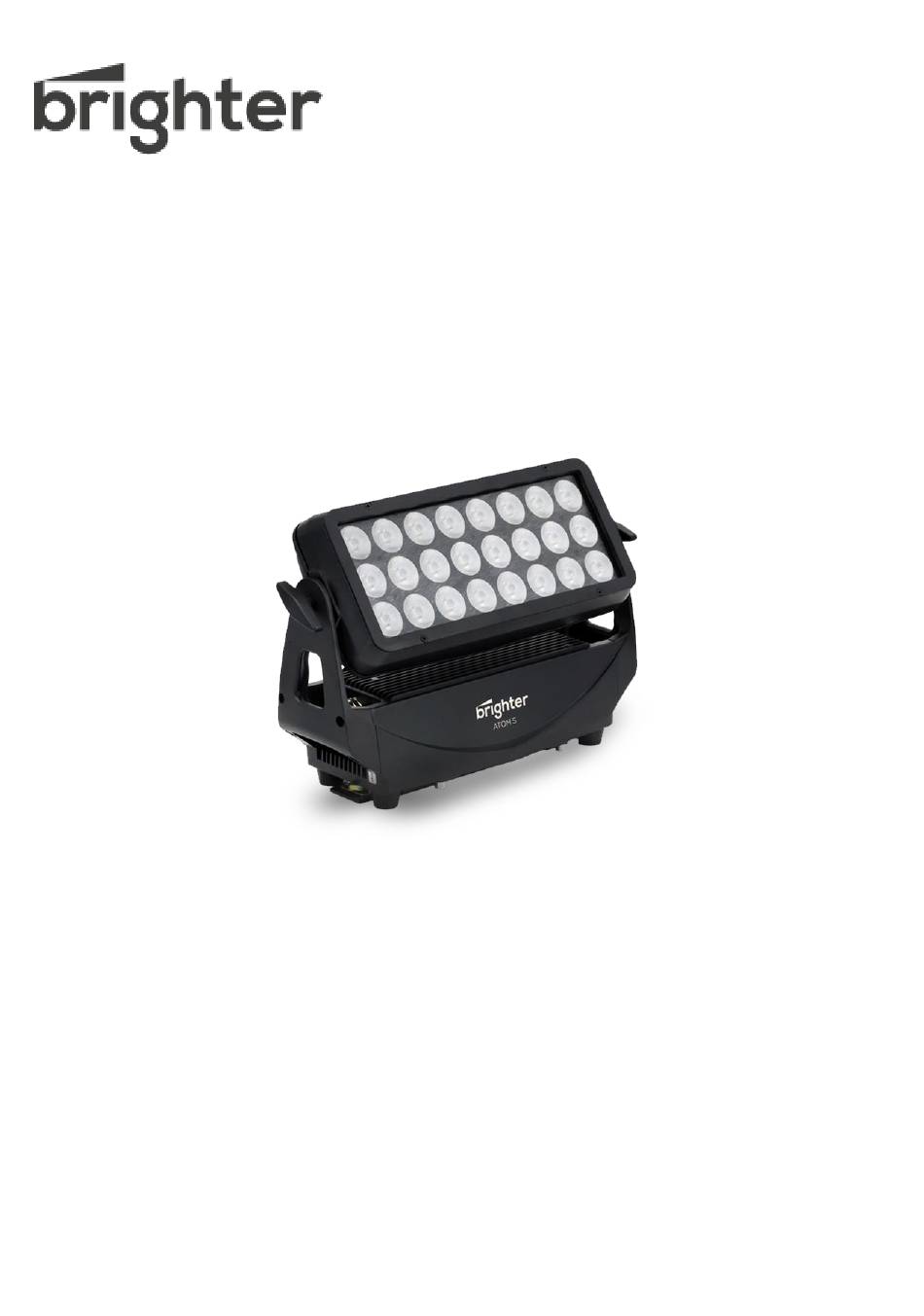

ATOM S+
USER MANUAL
Please read the instructions carefully before use!
Page 1 of 15
BRIGHTER LIGHTING SP. Z.O.O.
ul. Warszawska 111
32-087 Bibice
POLAND
NIP: 9442248196
REGON: 361197164

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATOM S+ and is the answer not in the manual?

Questions and answers

Related Manuals for Brighter ATOM S+

Summary of Contents for Brighter ATOM S+

  • Page 1 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 USER MANUAL ATOM S+ USER MANUAL This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

  • Page 2: Safety Precautions

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 1. SAFETY PRECAUTIONS This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Manufacturer is not responsible for injuries and damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.

  • Page 3: Maintenance

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Always disconnect fixture from main power source before performing any type of service or cleaning procedure ▪ Only handle the power cord by the plug end. Never pull out the plug by tugging the wire portion of the cord ▪...

  • Page 4: System Menu

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 • Electric power supply cables must not show any damage, material fatigue or sediments. NEVER remove the ground prong from the power cable 3.INSTALLATION GUIDELINES Two quarter-turn brackets are supplied with the fixture if it is to be flown above the ground. Rig the fixture to a support truss or structure using the supplied brackets and suitable clamps.

  • Page 5: Dmx Chart

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Wireless Priority Signal Priority Wired Priority Wireless Only Wired Only Screen Flip No/Yes Led Frequency 400Hz-24000Hz Reset Yes/No Manual Dimming Manual 0-255 Green 0-255 Blue 0-255...
  • Page 6 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 6-55 Synchronous strobe The larger value, the faster speed 56-105 Pulse strobe The larger value, the faster speed 106-155 Random strobe The larger value, the faster speed...
  • Page 7 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 37-41 LED FREQ 4000hz 42-46 LED FREQ 6000hz 47-51 LED FREQ 8000hz 52-56 LED FREQ 16000hz 57-61 LED FREQ 24000hz 62-66 Dim Curve 1 Linear 67-71...
  • Page 8 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 206-255 Pulse close The larger value, the faster speed Light to dark 0-255 Dark to light 0-255 Red Fine 16 bit adjustable 0-255 Green Dark to light...
  • Page 9 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 27-31 LED FREQ 1200hz 32-36 LED FREQ 2000hz 37-41 LED FREQ 4000hz 42-46 LED FREQ 6000hz 47-51 LED FREQ 8000hz 52-56 LED FREQ 16000hz 57-61 LED FREQ...
  • Page 10 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 156-205 Pulse open The larger value, the faster speed Dark to light 206-255 Pulse close The larger value, the faster speed Light to dark 0-255 Built-in FX...
  • Page 11 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 205-221 2700K 222-238 2500K 239-255 2000K 19CH 0 – no change 1-64 magenta shift from low to 0-255 max, 65-127 magenta shift from max to Color Tint Adjust smallest, 128 no shift, 129 -192 green shift from low to max, 193 –...
  • Page 12 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 36Ch Value Function Description 0-255 Red 1 Dark to light 0-255 Green 1 Dark to light 0-255 Blue 1 Dark to light 0-255 Amber 1 Dark to light...

  • Page 13: Dynamic Effects

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 6.SPECIFICATIONS CONSTRUCTION/PHYSICAL Dimensions: 420x140x265mm Weight: 6,6 Kg Exterior Color: Black DYNAMIC EFFECTS Dimmer: Electronic Strobe: Electronic Strobe Rate: 0-25Hz Standalone: Yes CONNECTIONS Power Connection: PowerCon TRUE1...

  • Page 14: Dimensional Drawings

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 7.DIMENSIONAL DRAWINGS Page 14 of 15...
  • Page 15 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 The manufacturer reserves the right to make changes to technical parameters Page 15 of 15...
