HexaPatt One
Vintage Retro Lamp with 3x60W Warm White LED modules
This product
manual
installation
and
use of this projector.
carefully
and
keep
User manual
Please read the instructions carefully before use
contains
important
Please
this manual
in a safe
information
about
the safe
read
and
follow
these
place
for future
reference.
instructio
ns
Advertisement
Related Manuals for Brighter HexaPatt One
Summary of Contents for Brighter HexaPatt One

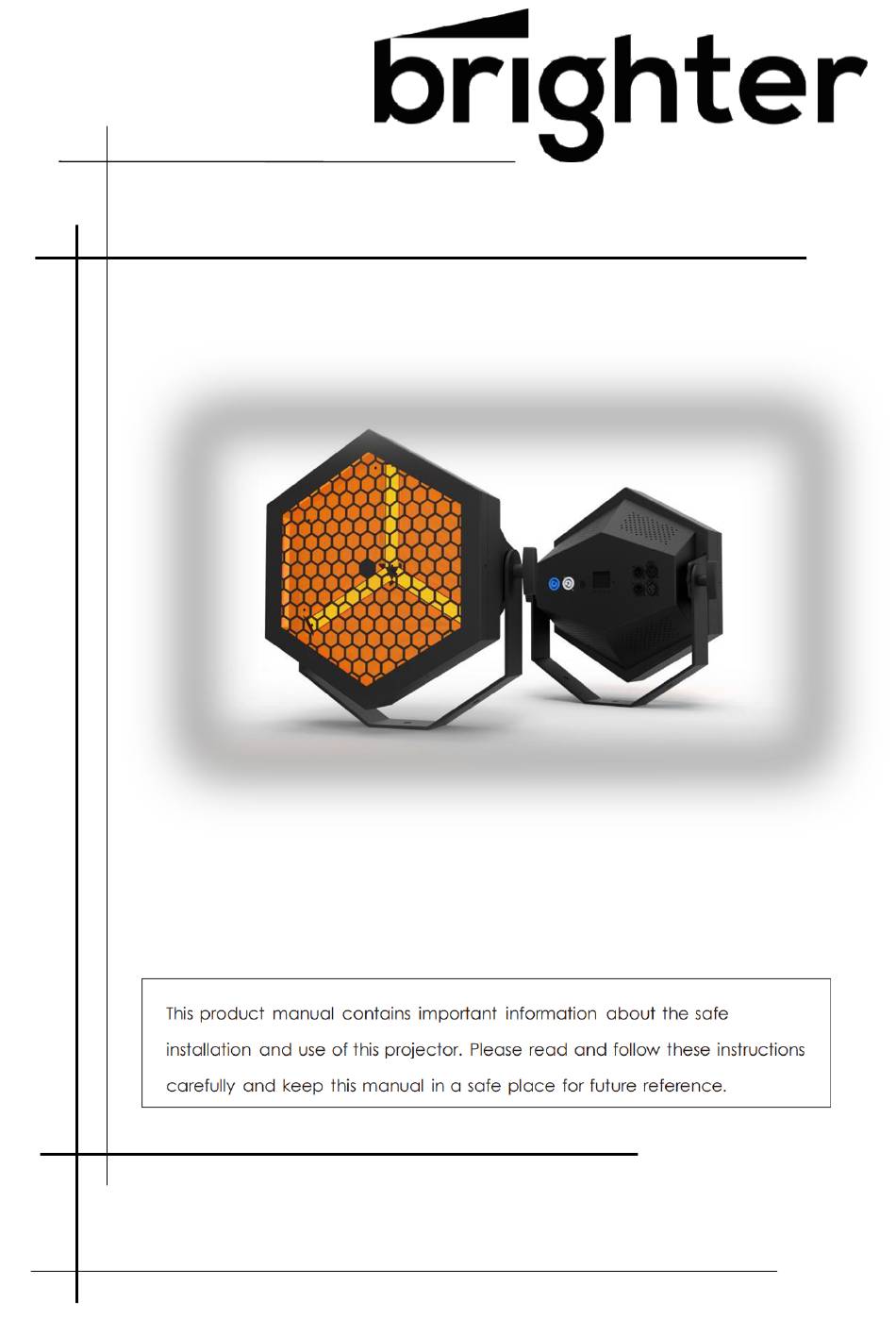

- Page 1 HexaPatt One Vintage Retro Lamp with 3x60W Warm White LED modules This product manual contains important information about the safe installation use of this projector. Please read follow these instructio carefully keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
User manual Please read this user manual before using this product Contents 1. Safety Instruction ..........3 2. Function Menu............4 3. Function Operation ..........7 4. Channel Function ..........11 5. Pixel Control ............12 6. Product Dimension Drawing........12 7. Technical Parameter ..........13... -
Page 3: Safety Instruction
Safety Notes Note : To ensure reasonable consistency of operation, please read this instruction carefully. Any damages caused by the non-observance of this manual or any unauthorized modification to this product are not be subject to warranty . 1. This product belongs to high temperature products. Do not touch the lamp body when working, carefully scalds! 2. -
Page 4: Function Menu
Function Menu Address 001-512 Setting DIMX 6CH/8CH/12CH 0-255 Brightness 0-100% Green 0-255 Brightness0-100% Blue 0-255 Brightness0-100% LED 1 0-255 Brightness0-100% LED 2 0-255 Brightness0-100% Manual Test LED 3 0-255 Brightness0-100% Dimmer 0-255 Brightness0-100% Running Mode Shutter 0-3 No Function... - Page 5 4-7 Dimmer 8-76 Synchronizing Strobe ,from slow to fast 77-145 Pulse Strobe ,from slow to fast Menu 146-215 Random Strobe ,from slow to fast 216-255 Dimmer Program Speed 001-009 Program Program Num 001-015 Sound Yes/No Screen...
- Page 6 Reverse Lamp Light Set 0-255 Advance Setting Language CN/EN Sound Control 0-100 Sensitivity Dimmer Speed Fast/Slow LNR Linear Dimmer Dimming Curve System V 2.0 Information...
-
Page 7: Function Operation
Function Operation Keys diagram 2.1 built-in program Automatic function 1. Select the working mode menu. 2. Select automatic mode. 3.Choose one of Fifteen programs. 4. Setting program speed. 2.2 manual mode function The manual mode function is consistent with the Pixel control 12CH channel but in manual mode DMX address is not working in that condition . - Page 8 2.3 Sound control function 1. Select the working mode menu. 2. Select automatic mode. Because sound control is based on the automatic program, so you need to choose the automatic program before you turn on the sound control . 3.Choose one of nine programs . 4.
- Page 9 4. Exit the working mode menu, select the DMX menu, and set the DMX menu address. The DMX address can be set to 001 Channel Function From Feature No function Red 1—100% Green No function Green 1—100% Blue No function Blue 1—100% LAMP1 No function...
- Page 10 Channel Function From Feature No function Red 1—100% Green No function Green 1—100% Blue No function Blue 1—100% LAMP1 No function Brightness 1—100% No function LAMP2 Brightness 1—100% No function LAMP3 Brightness 1—100% Dimmer Brightness 1—100% No function Dimmer Synchronizing strobe; Strobe from slow to fast Strobe Pulse strobe ;...
-
Page 11: Channel Function
Note:Dimmer need to be on 7CH（ ）and 8CH（ ）at the same time. Dimmer Strobe 12CH DMX Pixel Control function 1. Select the working mode menu. 2. Select DMX mode. 3. Set to 12 channel mode. 4. Exit the working mode menu, select the DMX menu, and set the DMX menu address. The DMX address can be set to 001. -
Page 12: Pixel Control
Strobe from slow to fast Pulse strobe ; Strobe from slow to fast Random strobe ; strobe from slow to fast Dimmer Program 7 Built-in Pro. Num 1 Program 8 Built-in Pro. Num 2 Program Speed, from slow to Program fast Speed No function... -
Page 13: Technical Parameter
Technical Parameter Diagram Technical Parameter Diagram ： Item Technical Parameter Work voltage 110V-240V 50/60HZ Power consumption 210 W Light source 3×60W LED + 48×0.5W LED DMX channel 6CH / 8CH /12CH Control Mode Auto-run , Sound control ,DMX control Color temperature 3200K Dimension 405×320×164 MM...
