Summary of Contents for Brighter Extreme 350

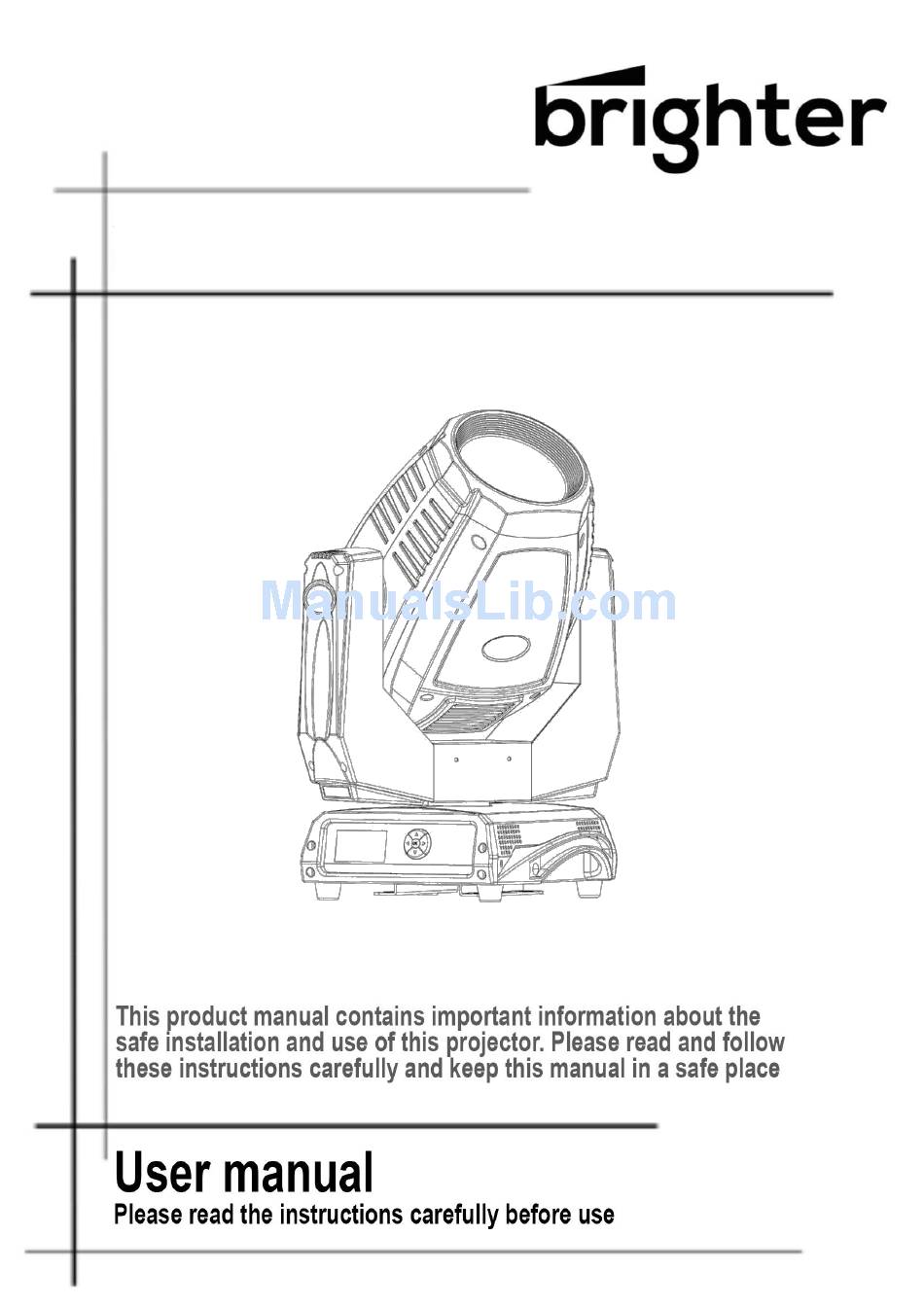

- Page 1 Extreme 350...
-
Page 2: Table Of Contents
Introduction…………………………..……………………………………………………………..….03 General Guidelines…………….………………………………………………………………….…03 Safety Instructions………………………………………………………..………………………04 Cleaning and Maintenance………………………………………………...……………………05 Technical Parameters…………………..…………………………………..………………………06 Fixture Size…………………..…………………………………...…………………………………….07 Color Wheel………………………………………………………………..…………………………...07 Gobo Wheel………………………………………………………………..……………………………07 9. Function of Buttons………………………………………………………………..…………………08 10. Menu Function………………………………………………………………..………………………..09 11. DMX Channels………………………………………………………………..…………………………10... -
Page 3: Introduction
Thank you for your patronage! We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install, operate, and maintain the lighting safety correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly. -
Page 4: Safety Instructions
to extreme heat, moisture or dust. Please don’t project the beam onto combustible substances. The minimum distance between light-output from the projector and the illuminated surface must be more than 0,5 meter. If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners turned in the quick lock holes correctly. -
Page 5: Cleaning And Maintenance
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power cord by the plug. Never pull out the plug by tugging the power cord. During initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective, it should decrease gradually. -
Page 6: Technical Parameters
In order to make the lights in good condition and extend the life time, we suggest a regular cleaning to the lights. 1) Clean the inside and outside lens each week to avoid the weakness of the lights due to accumulation of dust. 2) Clean the fan each week. -
Page 7: Fixture Size
COLOR WHEEL: GOBO WHEEL: FIXTURE SIZE: FIXTURE SIZE:... -
Page 8: Function Of Buttons
FUNCTIONS OF BUTTONS Reversal of the display To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode.This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. -
Page 9: Menu Function
MENU FUNCTION... -
Page 10: Dmx Channels
DMX CHANNELS CHANNEL ST 18 CHANNEL Pan Fine Tilt Tilt Fine Pan Tilt speed/ time Control Color Static gobo Rotation gobo Gobo Rot 8 facet Rotating Prism 24 facet Rotating Prism Prism Rot Frost Zoom Focus Shutter Dimmer 0-255 Pan Movement by 540° Pan Fine 0-255 Fine Control of Pan movement... - Page 11 210-229 Reserved 230-239 Lamp Off 240-255 Reserved Color Open/white Continuous Position Colour1 orange 10-18 Continuous Position Colour2 magenta 19-27 Continuous Position Colour3 light green 28-36 Continuous Position Colour4 37-46 Continuous Position Colour5 aquamarine 47-55 Continuous Position Colour6 cyan 56-64 Continuous Position Colour7 lavender 65-73 Continuous Position Colour8...
- Page 12 22-27 Gobo 4 28-33 Gobo 5 34-39 Gobo 6 40-45 Gobo 7 46-51 Gobo 8 52-57 Gobo 9 58-63 Gobo 10 64-69 Gobo 11 70-75 Gobo 12 76-81 Gobo 13 82-87 Gobo 14 88-93 Gobo 15 94-99 Gobo 16 100-105 Gobo 17 Shaking gobos from slow to fast 106-111...
- Page 13 40-48 Gobo 5 49-57 Gobo 6 58-66 Gobo 7 67-75 Gobo 8 76-84 Gobo 9 85-93 Gobo 10 94-102 Gobo 11 103-111 Gobo 12 Shaking gobos from slow to fast 112-120 Gobo 1 121-129 Gobo 2 130-138 Gobo 3 139-147 Gobo 4 148-156 Gobo 5...
- Page 14 Open 4-179 Frost from 0% to 100% 180-189 100% frost 190-211 Pulse closing from slow to fast 212-233 Pulse opening from fast to slow 234-255 Ramping from fast to slow Zoom 0-225 Zoom from min to max Foscus 0-225 Continuous adjustment from far to near Shutter/strobe 0-31 Shutter closed...
